| Storage drives installed | No |
| Number of storage drives supported | 12 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | Serial ATA III, U.2 |
| Storage drive sizes supported | 2.5" |
| Hot-swap drive bays | Yes |
| Processor family | EPYC |
| Processor manufacturer | AMD |
| Processor model | 7302P |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 16 |
| Processor threads | 32 |
| L3 cache | 128 MB |
| Internal memory | 128 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 1 TB |
| Memory slots | 8 |
| Memory form factor | RDIMM |
| ECC | Yes |
| Flash memory | 5000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,25000 Mbit/s |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Concurrent connections | 10000 |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| LED indicators | LAN, Power, SSD, Status, USB |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Buzzer | Yes |
| Noise level | 3.1 dB |
| Snapshot | Yes |
| Security algorithms | AES |
| Reset button | Yes |
| On/off switch | Yes |
| USB copy function | Yes |
| Operating system installed | QuTS hero |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 750 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Width | 368 mm |
| Depth | 362 mm |
| Height | 150 mm |
| Weight | 8.99 kg |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Quick installation guide | Yes |
| Number of screws | 48 |
| Drive tray key included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
| Fibre Channel | Yes |
| Description |

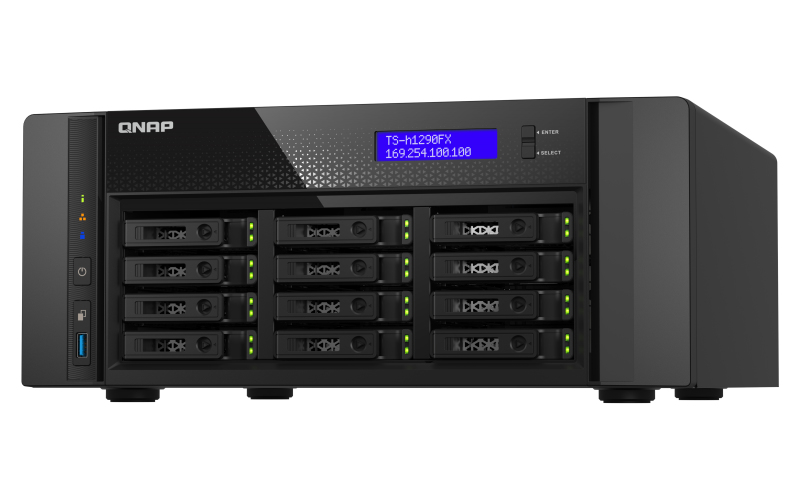

| QNAP TS-h1290FX. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA III, U.2, Storage drive sizes supported: 2.5". Processor family: EPYC, Processor manufacturer: AMD, Processor model: 7302P. Internal memory: 128 GB, Internal memory type: DDR4, Maximum RAM supported: 1 TB. Ethernet LAN data rates: 10,100,1000,2500,25000 Mbit/s. Fiber optic connector: SFP28 |
