Manufacturer: ROLINE

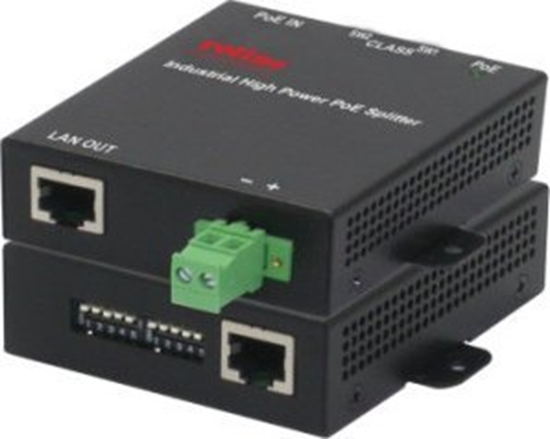

ROLINE High Power PoE++ Splitter, 128W

€355.18 incl tax

SKU: ST07325280

Manufacturer part number: 21.13.1173

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	18	€355.18 incl tax

Qty:

Products specifications

Status

7 dienas

Description

Enables PoE incapable network device with PoE capability
IEEE 802.3at PoE+ and 802.3af PoE compliance
Supports proprietary high power PoE++ up to 128W
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
Supports Alternative A or Alternative B PoE input over Cat.5/6
Provides power class selection DIP for demanding power from PSE - allows user to select one from nine different classes for demanding power from a remote PoE switched port or mid-span injector
Supports Type 1 PSE classification and Type 2 PSE 2-event classification
Short-circuit protection, low voltage lock out, inrush current limit and thermal protection
Flexible mounting support, light weight and compact
Metal housing
Dimension: 73 x 85 x 24 mm

Manufacturer	ROLINE
Product group	PoE adapter
Product type	PoE-Splitter
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	1
Power over Ethernet (PoE)	PoE
Quantity of PoE ports	1
Max. PoE output power (total)	128 W
Mains connection	Loose cable / screw terminals
Height	24 mm
Width	85 mm
Depth	73 mm
Weight	175.4 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.267 kg
Current catalog edition	C23-01.09
