    • Roline Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°
    Manufacturer: ROLINE

    Roline Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°


    €9.95 incl tax

    SKU: ST09788605
    Manufacturer part number: 26.11.0379
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    manufacturerROLINE
    product groupConnection technology TP
    product typeDIN rail adapter
    colourgrey
    weight31 g
    height of packaging (single piece)10 mm
    width of packaging (single piece)60 mm
    depth of packaging (single piece)60 mm
    package weight (single piece)0.05 kg
    gross weight0.05
    current catalog edition25.1
    transfer qualityCat6A / Class EA
    scope of deliveryDIN-Rail Keystone Holder and Keystone, Installation Guide...
    height78.25 mm
    width17.7 mm
    depth63.9 mm
    operating temperature min.-10 °C
    operating temperature max.60 °C
    storage temperature min.-40 °C
    storage temperature max.70 °C
    dimensions (hxwxd)Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x ...
    quantity of ports1
    shield typeScreened
    connection direction45°-inclination
    material (casing)ABS + Zinc Alloy
    assignmentEIA/TIA 568A & 568B
    Description

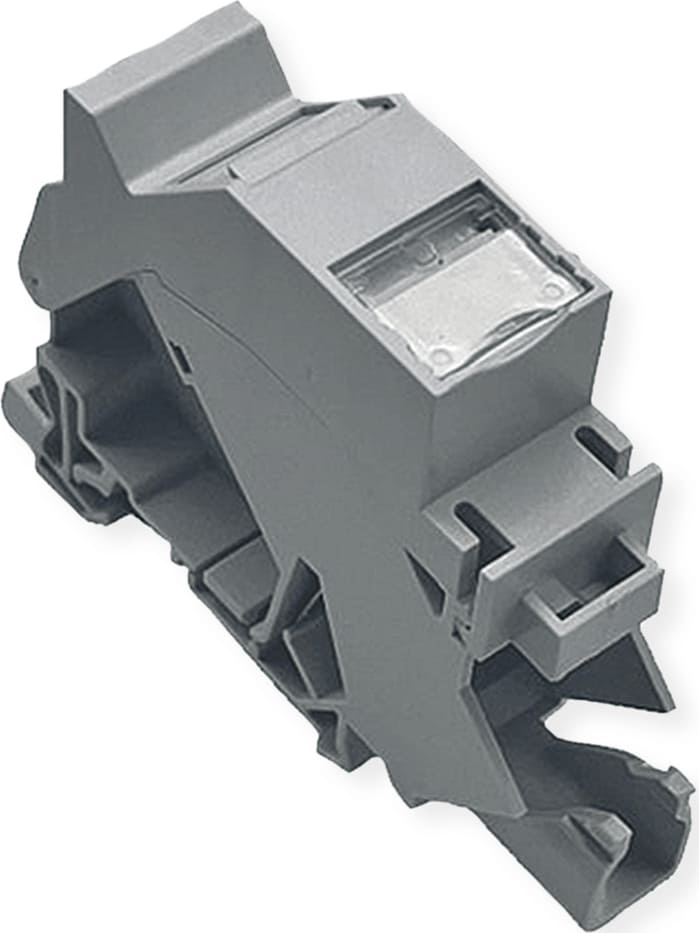

    Keystone holder including shielded Cat.6A keystone, for installation on DIN rail

    • Cable access 45° from the top or bottom, connection direction 45° downwards
    • With shielded plate (grounding)
    • Keystones with printed colour coding in accordance with EIA/TIA 568
    • Cables can be connected to the keystones without tools – simply place the cable wires in the guides, close the module and press it together – and the connection is complete
    • Holder with integrated dust cover
    • For cables with outer diameter: 5.0 - 8.0mm
    • Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
    • Dimensions Keystone Holder: 78.25 x 17.7 x 63.9mm
    • Dimensions Keystone: 21.5 x 14.7 x 34.5 mm

    Products specifications
    manufacturerROLINE
    product groupConnection technology TP
    product typeDIN rail adapter
    colourgrey
    weight31 g
    height of packaging (single piece)10 mm
    width of packaging (single piece)60 mm
    depth of packaging (single piece)60 mm
    package weight (single piece)0.05 kg
    gross weight0.05
    current catalog edition25.1
    transfer qualityCat6A / Class EA
    scope of deliveryDIN-Rail Keystone Holder and Keystone, Installation Guide...
    height78.25 mm
    width17.7 mm
    depth63.9 mm
    operating temperature min.-10 °C
    operating temperature max.60 °C
    storage temperature min.-40 °C
    storage temperature max.70 °C
    dimensions (hxwxd)Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x ...
    quantity of ports1
    shield typeScreened
    connection direction45°-inclination
    material (casing)ABS + Zinc Alloy
    assignmentEIA/TIA 568A & 568B
    Description

    Keystone holder including shielded Cat.6A keystone, for installation on DIN rail

    • Cable access 45° from the top or bottom, connection direction 45° downwards
    • With shielded plate (grounding)
    • Keystones with printed colour coding in accordance with EIA/TIA 568
    • Cables can be connected to the keystones without tools – simply place the cable wires in the guides, close the module and press it together – and the connection is complete
    • Holder with integrated dust cover
    • For cables with outer diameter: 5.0 - 8.0mm
    • Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
    • Dimensions Keystone Holder: 78.25 x 17.7 x 63.9mm
    • Dimensions Keystone: 21.5 x 14.7 x 34.5 mm
