Manufacturer: ROLINE

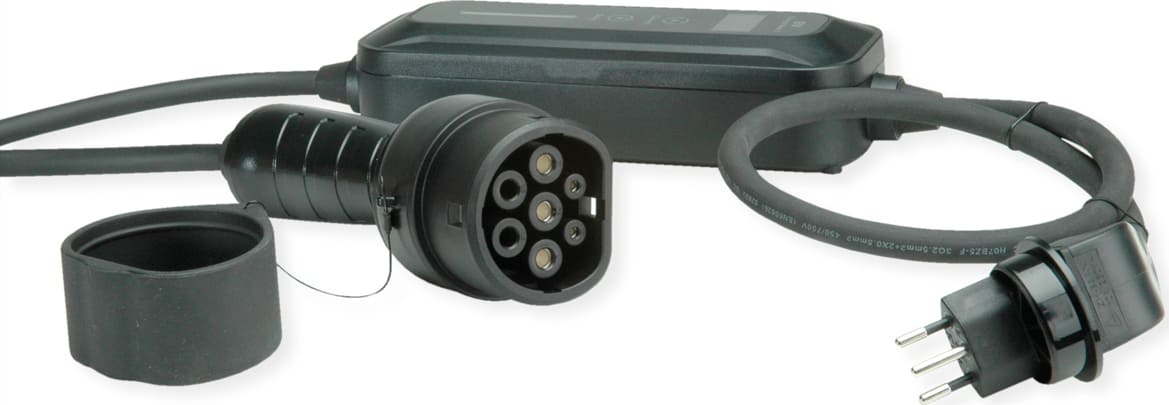

Roline Portable EV Charging Cable, Swiss Plug - Type 2, Mode 2, 10 A, 2.3 kW, 3 m

€163.17 incl tax

SKU: ST09785586

Manufacturer part number: 19.08.0103

Manufacturer Homepage

Warranty: 12 months

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	36	€163.17 incl tax

Qty:

Specifications

Products specifications

manufacturer

ROLINE

product group

Power Cables

product type

Electric car charging cable

colour

black

side 1 connector type

T12, 10A, Type-J

side 1 connector gender

Male

side 2 connector type

IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)

side 2 connector gender

Female

weight

1.534 kg

height of packaging (single piece)

100 mm

width of packaging (single piece)

370 mm

depth of packaging (single piece)

370 mm

package weight (single piece)

2.5 kg

gross weight

2.5

current catalog edition

24.1

technical particularity

Rated Current: 6/8/10A

supported charging technology

Mode-2

scope of delivery

Charging Cable, Carrying Bag, User Manual

height

80 mm

width

360 mm

depth

360 mm

material (external cable mantle)

TPU

operating temperature min.

-30 °C

operating temperature max.

50 °C

storage temperature min.

-40 °C

storage temperature max.

85 °C

cable lsoh

flame retardant

regional use

Switzerland, Liechtenstein

protection class (ip code)

IP67

charging power

2.3 kW

input voltage

250 V, 50 Hz

current

10 A

number of phases

1-phase

garums

3 m

Description

ROLINE Portable Charging Cable Mode 2 with Swiss Plug (Type J) and Type 2 Connector for Electric and Hybrid Cars - with up to 2.3 kW.

Enables easy and fast charging at home or on the go
Suitable for charging electric and hybrid vehicles
Connections: Type J /(Swiss Plug) and Type 2 Connector
For all electric or hybrid cars with Type 2 connection
Ergonomically shaped plug and coupler
IP-Protection of Type 2 Connector: IP65 (mated) / IP54 (unmated)
IP-Protection of IC-CPD (In-cable control and protection device): IP67

10 A / 1-phase (250 VAC)
Max. Charging Power: 2,3 kW
Flame retardant (IEC 60332-1)
Halogen free (IEC 60754-1/2)

Products specifications

manufacturer

ROLINE

product group

Power Cables

product type

Electric car charging cable

colour

black

side 1 connector type

T12, 10A, Type-J

side 1 connector gender

Male

side 2 connector type

IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)

side 2 connector gender

Female

weight

1.534 kg

height of packaging (single piece)

100 mm

width of packaging (single piece)

370 mm

depth of packaging (single piece)

370 mm

package weight (single piece)

2.5 kg

gross weight

2.5

current catalog edition

24.1

technical particularity

Rated Current: 6/8/10A

supported charging technology

Mode-2

scope of delivery

Charging Cable, Carrying Bag, User Manual

height

80 mm

width

360 mm

depth

360 mm

material (external cable mantle)

TPU

operating temperature min.

-30 °C

operating temperature max.

50 °C

storage temperature min.

-40 °C

storage temperature max.

85 °C

cable lsoh

flame retardant

regional use

Switzerland, Liechtenstein

protection class (ip code)

IP67

charging power

2.3 kW

input voltage

250 V, 50 Hz

current

10 A

number of phases

1-phase

garums

3 m

Description

ROLINE Portable Charging Cable Mode 2 with Swiss Plug (Type J) and Type 2 Connector for Electric and Hybrid Cars - with up to 2.3 kW.

Enables easy and fast charging at home or on the go
Suitable for charging electric and hybrid vehicles
Connections: Type J /(Swiss Plug) and Type 2 Connector
For all electric or hybrid cars with Type 2 connection
Ergonomically shaped plug and coupler
IP-Protection of Type 2 Connector: IP65 (mated) / IP54 (unmated)
IP-Protection of IC-CPD (In-cable control and protection device): IP67

10 A / 1-phase (250 VAC)
Max. Charging Power: 2,3 kW
Flame retardant (IEC 60332-1)
Halogen free (IEC 60754-1/2)
