    Manufacturer: APC

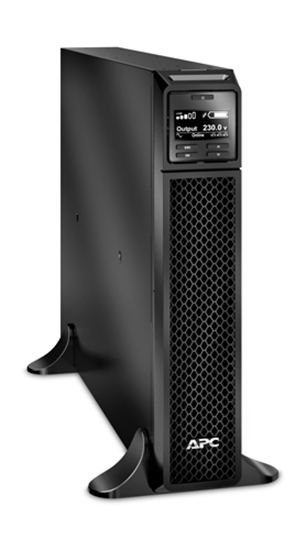

    APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1980 W 10 AC outlet(s)


    €1790.65 incl tax

    SKU: ST00766840
    Manufacturer part number: SRT2200XLI
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    UPS voltage regulators 2200
    Tips Double Conversion Online
    Socket (IEC320) yes
    Output power 1980
    Tips Smart UPS
    Socket (USB) yes
    Socket (RJ-45) yes
    Apparent power2200 VA
    Active power1980 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    No. of batteries1
    Battery capacity367 (Ah)
    Backup time (100% load)3.9 (Minute)
    Charging time3 (Hour)
    Chassis typeTower
    Filters / protectionSurge
    Input power portsIEC-C20
    Output power ports8 x IEC-C13
    Output power ports2 x IEC-C19
    I/O connectors1 x USB 2.0
    I/O connectors1 x RJ-45 LAN
    Environment requirements

    Operating Temperature
    0 - 40 °C
    Operating Relative Humidity
    0 - 95% non-condensing %
    Operating Elevation
    0-3000meters
    Storage Temperature
    -15 - 45 °C
    Storage Relative Humidity
    0 - 95% non-condensing %
    Storage Elevation
    0-15000meters
    Audible noise at 1 meter from surface of unit
    55.0dBA
    Online thermal dissipation
    703.0BTU/hr
    Protection Class
    IP 20
    ColorBlack
    Dimensions

    43.2 x 8.5 x 58.4 cm
    Weight25 (kilogram)
    DesignationCE+WEEE
    Width85
    Height590
    Depth440
    Weight31000
    DescriptionAPC SMART-UPS SRT 2200VA 230V
    CountryofOriginCHINA
    TariffHeading85044030
    PictureLocationhttps://www2.f9baltic.com/productimages/big/SRT2200XLI.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/SRT2200XLI.jpg
    Weight31.000000
    Height610.000000
    Length250.000000
    Width810.000000
    BoxSize0
    PalletSize0
    UPS devices and accessoriesYes
    Output power capacity (VA)2200
    Form factorTower
    Runtime4 min (full load) / 12 min (half load)
    Output power, W1980
    Maximum power, W1980
    Maximum output power capacity (VA)2200
    Nominal input voltage, V230 (220, 240)
    Nominal output voltage, V230 (220, 240)
    Input connectionIEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
    Frequency range, Hz50/60 +/- 3
    Output interface2 x IEC 320 C19, 8 x IEC 320 C13
    Input frequency, Hz40 - 70
    Cable length, m2.44
    Weight, kg25
    ConnectionsRJ-45 Serial
    ConnectionsSmart-Slot
    ConnectionsUSB
    Surge energy rating, J340
    Battery technologyLead-Acid
    CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
    Operating temperature range (T-T), �C0 - 40
    Operating relative humidity range, %0 - 95
    Storage temperature range (T-T), �C-15 - 45
    Battery recharge time, h3
    Height, mm432
    Width, mm85
    Depth, mm584
    UPS topologyDouble-conversion (Online)
    Output power capacity2.2 kVA
    Output power1980 W
    WaveformSine
    Input operation voltage (min)100 V
    Input operation voltage (max)275 V
    Input frequency40/70 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Surge energy rating340 J
    Efficiency92.2%
    Crest factor3:1
    Emergency Power Off (EPO)Yes
    Noise level55 dB
    Surge protectionYes
    Audible alarm(s)Yes
    Web-based managementYes
    Auto-restartYes
    AC outlet typesC13 coupler, C19 coupler
    Power plugC20 coupler
    AC outlets quantity10 AC outlet(s)
    Number of output IEC jumpers2
    USB portYes
    Serial interfaceYes
    Serial interface typeRJ-45
    SmartSlotYes
    Battery technologySealed Lead Acid (VRLA)
    Battery capacity367 VAh
    Number of batteries supported1
    Typical backup time at full load3.9 min
    Typical backup time at half load11.6 min
    Battery life (max)5 year(s)
    Battery recharge time3 h
    Hot-swap batteryYes
    Automatic battery testYes
    Cold startYes
    Form factorRackmount/Tower
    Product colourBlack
    Cable length2.44 m
    Display typeLCD
    LED indicatorsYes
    International Protection (IP) codeIP20
    CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-15 - 45 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 3000 m
    Non-operating altitude0 - 15000 m
    Sustainability certificatesENERGY STAR, Green Premium, RoHS
    Width85 mm
    Depth584 mm
    Height432 mm
    Weight25 kg
    Package width599 mm
    Package depth810 mm
    Package height246 mm
    Package weight30.8 kg
    BracketYes
    Cables includedUSB cable
    Quick installation guideYes
    Warranty cardYes
    Software CDYes
    Products per pallet12 pc(s)
    Harmonized System (HS) code85078000
    InterfaceSmartSlot
    Nominal output voltage230 V
    Nominal input voltage230 V
    Packaging contentPower cord Removable support feet
    Description
    APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 2.44 m. Width: 85 mm, Depth: 584 mm, Height: 432 mm
    emergency power off (epo)Yes
    smartslotYes
    international protection (ip) codeIP20
    manufacturerAPC
    product groupUSV
    product typeUPS Online
    colourblack
    weight25 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)34 kg
    gross weight34
    current catalog edition24.1
    current catalog page10.09
    height432 mm
    width85 mm
    depth584 mm
    operating temperature min.0 °C
    operating temperature max.40 °C
    dimensions (hxwxd)432 x 85 x 58.4 mm
    interfaceSmartSlot
    mounting formTower
    usb 2.0 interfaceja
    cable length2.44 m
    battery capacity367 VAh
    acoustic level1Meter Entfernung: 55.0 dBA
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)2200 / 2200
    backup time full/half-load4 / 11 min
    voltage (input)230 V
    voltage (output)230 V
    frequency50Hz
    connector type (input)IEC320 C20
    connector type (output)8 x IEC320 C13; 2 x IEC320 C19
    phase in/output230V/230V / 50Hz
    activity displayJa
    internal coolingAktiv, Lüfter
    ambient temperature0-40°C
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    efficiency92.2%
    delay expansion unit10x SRT96BP (19.29.3034)
    web-based managementYes
    form factorRackmount/Tower
    product colourBlack
    led indicatorsYes
    noise level55 dB
    operating temperature (t-t)0 - 40 °C
    storage temperature (t-t)-15 - 45 °C
    operating relative humidity (h-h)0 - 95%
    storage relative humidity (h-h)0 - 95%
    package width599 mm
    package depth810 mm
    package height246 mm
    package weight30.8 kg
    certificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
    harmonized system (hs) code85078000
    battery technologySealed Lead Acid (VRLA)
    compliance certificatesRoHS
    cables includedUSB cable
    products per pallet12 pc(s)
    number of batteries supported1
    total carbon footprint (kg of co2e)3634.43
    quick installation guideYes
    operating altitude0 - 3000 m
    non-operating altitude0 - 15000 m
    ac outlets quantity10 AC outlet(s)
    ac outlet typesC13 coupler, C19 coupler
    nominal input voltage230 V
    power plugC20 coupler
    nominal output voltage230 V
    usb portYes
    sustainability certificatesENERGY STAR, Green Premium
    ups topologyDouble-conversion (Online)
    output power capacity2.2 kVA
    output power1980 W
    waveformSine
    input operation voltage (min)100 V
    input operation voltage (max)275 V
    input frequency40/70 Hz
    output operation voltage (min)220 V
    output operation voltage (max)240 V
    surge energy rating340 J
    surge protectionYes
    audible alarm(s)Yes
    auto-restartYes
    number of output iec jumpers2
    typical backup time at full load3.9 min
    typical backup time at half load11.6 min
    battery life (max)5 year(s)
    battery recharge time3 h
    hot-swap batteryYes
    automatic battery testYes
    cold startYes
    software cdYes
    packaging contentPower cord Removable support feet
    serial interfaceYes
    serial interface typeRJ-45
    warranty cardYes
    display typeLCD
    crest factor3:1
    output frequency50/60 Hz
    bracketYes
    Description
    APC Smart-UPS On-Line. UPS topoloģija: Divkāršā-konversija (tiešsaiste), Izejas jaudas kapacitāte (VA): 2,2 kilovoltampērs, Izejas jauda: 1980 W. Maiņstrāvas izeju tipi: C13 uzmava, C19 uzmava, Jaudas spraudnis: C20 uzmava, Izeju skaits: 10 Maiņstrāvas izvade (-s). Baterijas tehnoloģija: Noslēgts svina skābju (VRLA), Akumulatora ietilpība: 367 volt-ampērstunda, Tipiskais dublējuma laiks pilnā ielādē: 3,9 min. Formas faktors: Statīvs/Tornis, Produkta krāsa: Melns, Kabeļa garums: 2,44 m. Atbilstības sertifikāti: RoHS, Sertifikācija: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
    DescriptionAPC Smart-UPS SRT 2200VA Tower 230V
    VatTypeVAT
    Weight31.000000000
    Height250.000000000
    Width600.000000000
    Length820.000000000
    Description
    APC Smart-UPS SRT 2200VA Tower 230V
