Manufacturer: SUPERMICRO

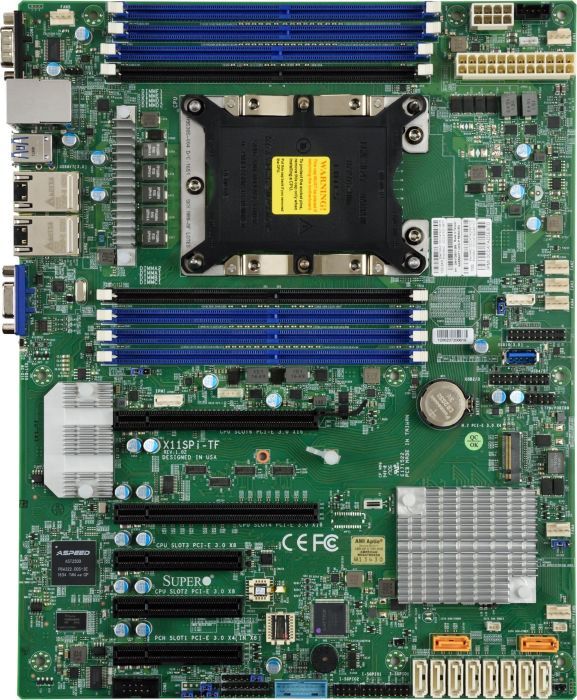

Supermicro X11SPI-TF server/workstation motherboard ATX

€739.61 incl tax

SKU: ST03996921

Manufacturer part number: MBD-X11SPI-TF-B

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	7	€739.61 incl tax

Qty:

Specifications

Products specifications

Processor manufacturer	Intel
Number of processors supported	1
Processor number of cores supported	28
Thermal power	205 W
Supported memory types	DDR4-SDRAM
Number of DIMM slots	8
Supported memory clock speeds	1600,1866,2133,2400,2666 MHz
Maximum internal memory	1024 GB
Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB, 128MB
ECC	Y
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
Supported LRDIMM module capacity	32GB, 64GB
Maximum RDIMM memory	256 GB
Maximum LRDIMM memory	512 GB
Memory voltage	1.2 V
HDD interface	Serial ATA III
RAID support	Y
RAID levels	0,1,5,10
On-board graphics adapter model	Aspeed AST2500
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Serial port headers	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
Ethernet LAN	Y
Wi-Fi	N
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard form factor	ATX
PCI Express x8 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI Express x4 (Gen 3.x) slots	1
BIOS type	UEFI AMI
ACPI version	6.0
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	304.8 mm
Depth	243.8 mm
Bundled software	Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Description
Description	Supermicro X11SPI-TF. Component for: Server, Motherboard form factor: ATX. Number of processors supported: 1. Number of DIMM slots: 8, Supported memory types: DDR4-SDRAM, Maximum internal memory: 1024 GB. HDD interface: Serial ATA III, RAID levels: 0,1,5,10. On-board graphics adapter model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet. BIOS type: UEFI AMI

Products specifications

Processor manufacturer	Intel
Number of processors supported	1
Processor number of cores supported	28
Thermal power	205 W
Supported memory types	DDR4-SDRAM
Number of DIMM slots	8
Supported memory clock speeds	1600,1866,2133,2400,2666 MHz
Maximum internal memory	1024 GB
Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB, 128MB
ECC	Y
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
Supported LRDIMM module capacity	32GB, 64GB
Maximum RDIMM memory	256 GB
Maximum LRDIMM memory	512 GB
Memory voltage	1.2 V
HDD interface	Serial ATA III
RAID support	Y
RAID levels	0,1,5,10
On-board graphics adapter model	Aspeed AST2500
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
Serial port headers	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
Ethernet LAN	Y
Wi-Fi	N
Ethernet interface type	Gigabit Ethernet
Component for	Server
Motherboard form factor	ATX
PCI Express x8 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI Express x4 (Gen 3.x) slots	1
BIOS type	UEFI AMI
ACPI version	6.0
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	304.8 mm
Depth	243.8 mm
Bundled software	Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Description
Description	Supermicro X11SPI-TF. Component for: Server, Motherboard form factor: ATX. Number of processors supported: 1. Number of DIMM slots: 8, Supported memory types: DDR4-SDRAM, Maximum internal memory: 1024 GB. HDD interface: Serial ATA III, RAID levels: 0,1,5,10. On-board graphics adapter model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet. BIOS type: UEFI AMI
