    Manufacturer: LEVELONE

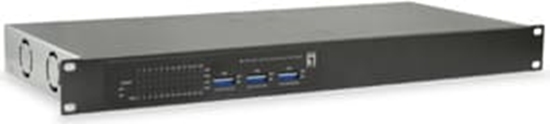

    LevelOne FGP-2602W380 26-Port-Fast Ethernet-PoE-Switch


    €696.05 incl tax

    SKU: ST04527277
    Manufacturer part number: FGP-2602W380
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    RJ-45 port 26
    Properties RJ-45
    power over ethernet (poe)Yes
    weight2.9 kg
    height440 mm
    width200 mm
    depth44 mm
    full duplexYes
    switch typeUnmanaged
    basic switching rj-45 ethernet ports quantity26
    basic switching rj-45 ethernet ports typeFast Ethernet (10/100)
    gigabit ethernet (copper) ports quantity2
    sfp module slots quantity2
    networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
    cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6, Cat7
    flow control supportYes
    mac address table4000 entries
    switching capacity8.8 Gbit/s
    rack mountingYes
    product colourBlack
    led indicatorsLAN, PoE, Power, Uplink
    mean time between failures (mtbf)50000 h
    power over ethernet plus (poe+) ports quantity24
    total power over ethernet (poe) budget380 W
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    package width260 mm
    package depth95 mm
    package height540 mm
    package weight3.5 kg
    harmonized system (hs) code85176990
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    manualYes
    housing materialMetal
    cables includedAC
    jumbo frames supportYes
    safetyFCC Class A, CE
    jumbo frames10000
    power protection featuresOver current, Over voltage, Overheating
    fast ethernet (copper) ports quantity24
    buffer size512 KB
    packet forwarding rate (1 gbps)1488000 pps
    packet forwarding rate (100 mbps)148800 pps
    packet forwarding rate (10 mbps)14880 pps
    power over ethernet (poe) power per port30 W
    regulatory approvalsEMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
    Description
    LevelOne FGP-2602W380. Slēdža tips: Nepārvaldīts. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 26. Pilns duplekss. Adrešu tabulas izmērs: 4000 ieraksti, Komutācijas ietilpība: 8,8 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Statņa montāža

    Products specifications
    RJ-45 port 26
    Properties RJ-45
    power over ethernet (poe)Yes
    weight2.9 kg
    height440 mm
    width200 mm
    depth44 mm
    full duplexYes
    switch typeUnmanaged
    basic switching rj-45 ethernet ports quantity26
    basic switching rj-45 ethernet ports typeFast Ethernet (10/100)
    gigabit ethernet (copper) ports quantity2
    sfp module slots quantity2
    networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
    cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6, Cat7
    flow control supportYes
    mac address table4000 entries
    switching capacity8.8 Gbit/s
    rack mountingYes
    product colourBlack
    led indicatorsLAN, PoE, Power, Uplink
    mean time between failures (mtbf)50000 h
    power over ethernet plus (poe+) ports quantity24
    total power over ethernet (poe) budget380 W
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    package width260 mm
    package depth95 mm
    package height540 mm
    package weight3.5 kg
    harmonized system (hs) code85176990
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    manualYes
    housing materialMetal
    cables includedAC
    jumbo frames supportYes
    safetyFCC Class A, CE
    jumbo frames10000
    power protection featuresOver current, Over voltage, Overheating
    fast ethernet (copper) ports quantity24
    buffer size512 KB
    packet forwarding rate (1 gbps)1488000 pps
    packet forwarding rate (100 mbps)148800 pps
    packet forwarding rate (10 mbps)14880 pps
    power over ethernet (poe) power per port30 W
    regulatory approvalsEMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
    Description
    LevelOne FGP-2602W380. Slēdža tips: Nepārvaldīts. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 26. Pilns duplekss. Adrešu tabulas izmērs: 4000 ieraksti, Komutācijas ietilpība: 8,8 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Statņa montāža
