    PrevSwitch|MIKROTIK|Type L3|Rac...
    NextSwitch|TP-LINK|ES224G|Type ...
    Manufacturer: TELTONIKA

    Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFast Ethernet (copper) ports quantity|TSF010000000


    €35.99 incl tax

    SKU: ST08231335
    Manufacturer part number: TSF010000000
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    RJ-45 port 5
    DescriptionTELTONIKA TSF010 FLAT ETHERNET SWITCH
    CountryofOriginLITHUANIA
    TariffHeading85176200
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSF010000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSF010000000.jpg
    AdditionalPictures TSF010000000_7.jpg TSF010000000_6.jpg TSF010000000_5.jpg TSF010000000_4.jpg TSF010000000_3.jpg TSF010000000_2.jpg
    Weight0.150000
    Height30.000000
    Length140.000000
    Width55.000000
    BoxSize0
    PalletSize0
    IP classificationIP30
    Operating temperature range (T-T), �C-40 - 75
    Weight, g142
    Dimensions W x D x H, mm113 x 50 x 28
    Ports quantity5
    Power consumption, W1
    Power over Ethernet (PoE) SupportNo
    Power consumption (max.), W1.5
    MAC address table, entries2K
    Switch typeEthernet
    Switching capacity, Gbit/s10
    Description

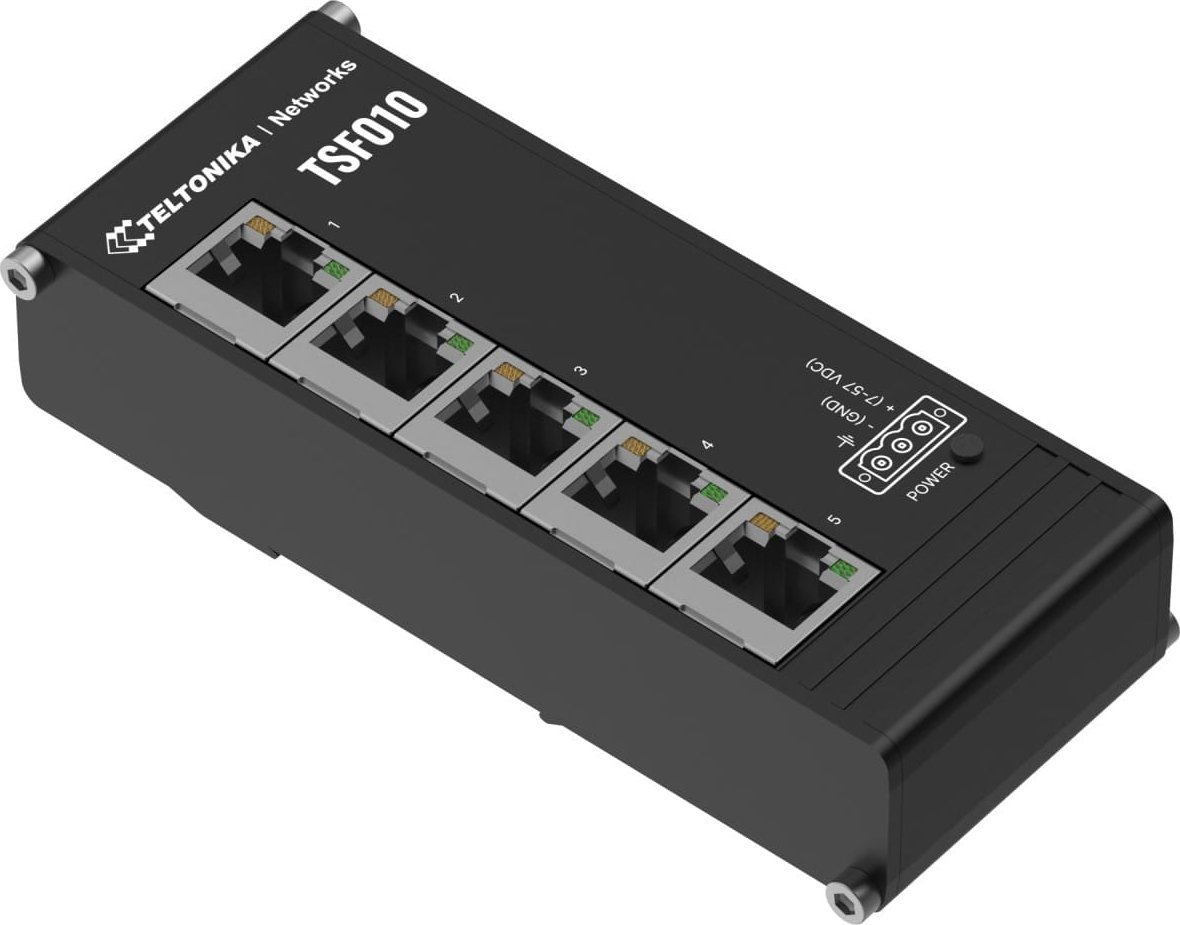

    The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
    Description
    Type Unmanaged | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Full duplex Yes | Switching capacity 10 Gbit/s | Form factor DIN rail | Product colour Black | DIN rail mounting Yes | Power source DC | Power consumption (typical) 1 W | Width 113 mm | Depth 50 mm | Height 28 mm | Weight 142 g
    power over ethernet (poe)nein
    manufacturerTeltonika
    product groupIndustrial Networking
    product typeNetzwerk-Switch
    colourblack
    weight142 g
    height of packaging (single piece)30 mm
    width of packaging (single piece)60 mm
    depth of packaging (single piece)150 mm
    package weight (single piece)0.147 kg
    gross weight0.152
    height28 mm
    width113 mm
    depth50 mm
    operating temperature min.-40 °C
    operating temperature max.75 °C
    quantity of ports5
    lan (mbps)10/100
    mains connectionSystemstecker, Proprietär
    protection class (ip code)IP30
    network standardFast Ethernet
    power supply unit (internal/external)extern
    fast ethernet ports rj-455
    Description

    Der TSF010 ist ein Unmanaged Ethernet-Switch im flachen Design mit integrierter DIN-Schienenbefestigung für den Plug-and-Play-Einsatz in industriellen Schaltschränken. Mit Abmessungen von 113 x 28 x 50 mm und einem Gewicht von nur 142 g ist dieser Ethernet-Switch kompakt und leicht. Sein 3-poliger Stromeingang und ein Spannungsbereich von 7-57 VDC machen ihn zu einem flexiblen Unmanaged Switch, der für den industriellen Einsatz maßgeschneidert ist.

    • 3-poliger Stromeingang
    • Integrierte DIN Halterung
    • 5 x 10/100 Ethernet Anschlüße
    Gross weight0.222
    Net weight0.14
    Gross depth (mm)50
    Gross depth (mm)50
    Gross width (mm)113
    Gross width (mm)113
    Gross height (mm)28
    Gross height (mm)28
    Volume (m3)0.0001582
    Volume (m3)0.0001582
    Tare weight (kg)0.08
    Tare weight (kg)0.08

    Products specifications
    Properties RJ-45
    RJ-45 port 5
    DescriptionTELTONIKA TSF010 FLAT ETHERNET SWITCH
    CountryofOriginLITHUANIA
    TariffHeading85176200
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSF010000000.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSF010000000.jpg
    AdditionalPictures TSF010000000_7.jpg TSF010000000_6.jpg TSF010000000_5.jpg TSF010000000_4.jpg TSF010000000_3.jpg TSF010000000_2.jpg
    Weight0.150000
    Height30.000000
    Length140.000000
    Width55.000000
    BoxSize0
    PalletSize0
    IP classificationIP30
    Operating temperature range (T-T), �C-40 - 75
    Weight, g142
    Dimensions W x D x H, mm113 x 50 x 28
    Ports quantity5
    Power consumption, W1
    Power over Ethernet (PoE) SupportNo
    Power consumption (max.), W1.5
    MAC address table, entries2K
    Switch typeEthernet
    Switching capacity, Gbit/s10
    Description
    The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
    Description
    Type Unmanaged | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Full duplex Yes | Switching capacity 10 Gbit/s | Form factor DIN rail | Product colour Black | DIN rail mounting Yes | Power source DC | Power consumption (typical) 1 W | Width 113 mm | Depth 50 mm | Height 28 mm | Weight 142 g
    power over ethernet (poe)nein
    manufacturerTeltonika
    product groupIndustrial Networking
    product typeNetzwerk-Switch
    colourblack
    weight142 g
    height of packaging (single piece)30 mm
    width of packaging (single piece)60 mm
    depth of packaging (single piece)150 mm
    package weight (single piece)0.147 kg
    gross weight0.152
    height28 mm
    width113 mm
    depth50 mm
    operating temperature min.-40 °C
    operating temperature max.75 °C
    quantity of ports5
    lan (mbps)10/100
    mains connectionSystemstecker, Proprietär
    protection class (ip code)IP30
    network standardFast Ethernet
    power supply unit (internal/external)extern
    fast ethernet ports rj-455
    Description

    Der TSF010 ist ein Unmanaged Ethernet-Switch im flachen Design mit integrierter DIN-Schienenbefestigung für den Plug-and-Play-Einsatz in industriellen Schaltschränken. Mit Abmessungen von 113 x 28 x 50 mm und einem Gewicht von nur 142 g ist dieser Ethernet-Switch kompakt und leicht. Sein 3-poliger Stromeingang und ein Spannungsbereich von 7-57 VDC machen ihn zu einem flexiblen Unmanaged Switch, der für den industriellen Einsatz maßgeschneidert ist.

    • 3-poliger Stromeingang
    • Integrierte DIN Halterung
    • 5 x 10/100 Ethernet Anschlüße
    Gross weight0.222
    Net weight0.14
    Gross depth (mm)50
    Gross depth (mm)50
    Gross width (mm)113
    Gross width (mm)113
    Gross height (mm)28
    Gross height (mm)28
    Volume (m3)0.0001582
    Volume (m3)0.0001582
    Tare weight (kg)0.08
    Tare weight (kg)0.08
