Manufacturer: TP-LINK

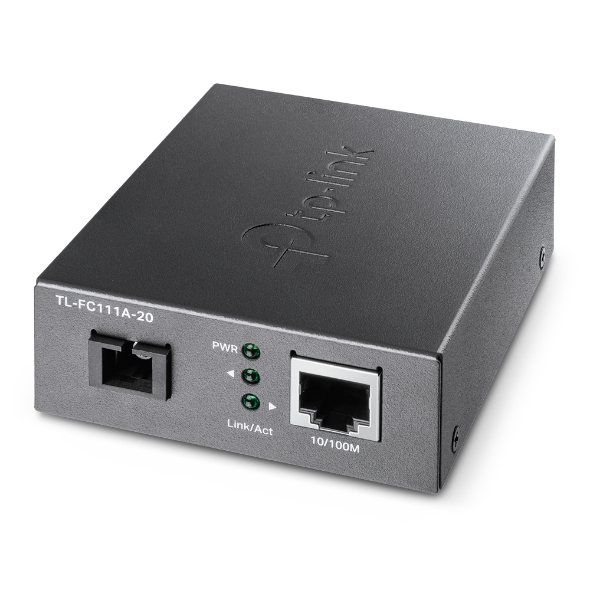

TP-LINK 10/100 Mbps WDM Media Converter

€18.40 incl tax

SKU: ST04588804

Manufacturer part number: TL-FC111A-20

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	2 - 4 days	5	€18.40 incl tax
PL	8 - 15 days	3	€25.48 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5

RJ-45 port	1
Properties	RJ-45

Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Fiber ethernet cabling technology	100BASE-FX
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Certification	FCC, CE
Output voltage	5 V
Output current	0.6 A
Width	94.5 mm
Depth	73 mm
Height	27 mm
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Description
Description	TP-Link 10/100 Mbps WDM Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black, Certification: FCC, CE. Output voltage: 5 V, Output current: 0.6 A

Description
	2x10Base-T / 100Base-TX \| Cable distance 20km

Description	TP-LINK TL-FC111A-20 WDM SC Converter
VatType	VAT
Weight	0.350000000
Height	65.000000000
Width	170.000000000
Length	205.000000000
Description
Description	TP-LINK TL-FC111A-20 10/100 RJ45 to 100Mbps Single-mode SC WDM Bi-Directional Fiber Converter TX:1310 RX:1550 20km

Gross depth (mm)	204.00
Gross height (mm)	65.00
Gross weight	0.36
Gross width (mm)	165.00
Net weight	0.21
Packing quantity	1.00
Paper/Pasteboard	100.00
Plastic (No PET)	50.00
Tare weight (kg)	0.15
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Other features	This media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated
Auto MDI/MDI-X	Yes
Converter output interface	10/100 Mbps RJ45 Port
Converter input interface	1 x SC Fiber Port
Producer product name	TL-FC111A-20
Producer product family	10/100 Mbps WDM Media Converter
Producer	TP-LINK
Warranty	60

Products specifications

1
Details 2
Details 3
Details 4
Details 5

RJ-45 port	1
Properties	RJ-45

Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Fiber ethernet cabling technology	100BASE-FX
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Maximum transfer distance	20000 m
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Certification	FCC, CE
Output voltage	5 V
Output current	0.6 A
Width	94.5 mm
Depth	73 mm
Height	27 mm
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Description
Description	TP-Link 10/100 Mbps WDM Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black, Certification: FCC, CE. Output voltage: 5 V, Output current: 0.6 A

Description
	2x10Base-T / 100Base-TX \| Cable distance 20km

Description	TP-LINK TL-FC111A-20 WDM SC Converter
VatType	VAT
Weight	0.350000000
Height	65.000000000
Width	170.000000000
Length	205.000000000
Description
Description	TP-LINK TL-FC111A-20 10/100 RJ45 to 100Mbps Single-mode SC WDM Bi-Directional Fiber Converter TX:1310 RX:1550 20km

Gross depth (mm)	204.00
Gross height (mm)	65.00
Gross weight	0.36
Gross width (mm)	165.00
Net weight	0.21
Packing quantity	1.00
Paper/Pasteboard	100.00
Plastic (No PET)	50.00
Tare weight (kg)	0.15
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Other features	This media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated
Auto MDI/MDI-X	Yes
Converter output interface	10/100 Mbps RJ45 Port
Converter input interface	1 x SC Fiber Port
Producer product name	TL-FC111A-20
Producer product family	10/100 Mbps WDM Media Converter
Producer	TP-LINK
Warranty	60
