Connectivity technology | Wireless |
Host interface | PCI Express |
Interface | WLAN / Bluetooth |
Maximum data transfer rate | 2402 Mbit/s |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Wi-Fi | Yes |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Frequency range | 2.4 - 5 GHz |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
WLAN data transfer rates supported | 54,300,574,1733,2402 Mbit/s |
Modulation | 16-QAM, 64-QAM, 256-QAM, DBPSK, DQPSK, OFDM |
Security algorithms | 64-bit AES, 128-bit AES, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
Bluetooth | Yes |
Internal | Yes |
Product colour | Black, Metallic |
Antenna | Yes |
Antenna design | External |
Certification | CE, FCC |
Windows operating systems supported | Windows 10 x64 |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Sustainability certificates | RoHS |
Width | 95.2 mm |
Depth | 120.8 mm |
Height | 21.5 mm |
Package width | 200 mm |
Package depth | 150 mm |
Package height | 39 mm |
Package weight | 270 g |
Description |

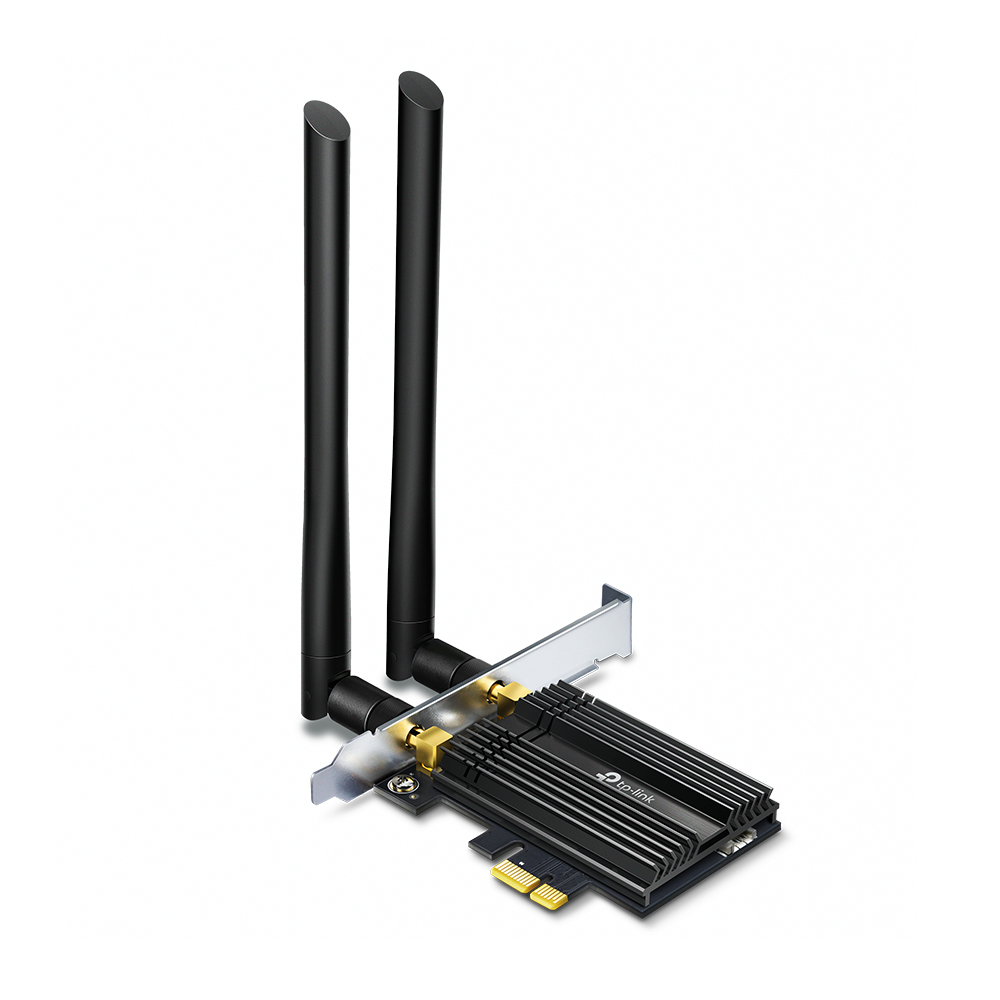

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Metallic |
