    PrevTP-Link TL-SG1008P
    NextTP-LINK TL-SG1016DE
    Manufacturer: TP-LINK

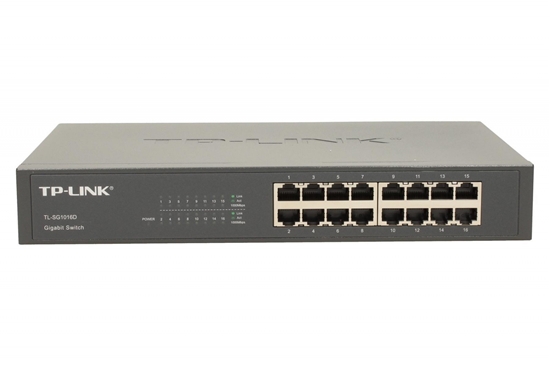

    TP-LINK TL-SG1016D


    €65.99 incl tax

    SKU: ST00772713
    Manufacturer part number: TL-SG1016D
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    LT
    DE
    LT
    LT
    PL
    LV

    Products specifications
    WRL stadarti 802.11b
    Properties RJ-45
    RJ-45 port 16
    RJ-45 port 12
    RJ-45 port 1
    Width250
    Height400
    Depth80
    Weight2219
    Description

    Przełącznik 16 portowy, Gb

    • Standardy i protokoły: IEEE802.3, 802.3u, 802.3ab, 802.3x
    • CSMA/CD, TCP/IP
    • Podstawowe funkcje: duża prędkość przewodowej transmisji, obsługa funkcji auto-learning i auto-aging adresów MAC, wsparcie standardu kontroli przepustowości dla trybu pełnego dupleksu (IEEE802.3x) oraz funkcji back pressure dla trybu pół dupleksu
    • Wydajność przełączania:  32Gb/s
    • Tablica adresów MAC:  8k
    • Szybkość przekierowań:
      • 10BASE-T: 14880pps/port
      • 100BASE-TX: 148800pps/port
      • 1000BASE-T: 1488000pps/port
    • Metoda transmisji:  Store-and-Forward
    • Porty: 16 portów RJ45 10/100/1000Mb/s (automatyczna negocjacja połączeń, automatyczne krosowanie MDI/MDIX)
    • Okablowanie sieciowe:
      • 10Base-T: kabel UTP kat. 3, 4 lub 5 (do 100m)
      • Kabel STP EIA/TIA-568 100Ω (do 100m)
      • 100Base-Tx: kabel UTP kat. 5, lub 5e (do 100m)
      • Kabel STP EIA/TIA-568 100Ω (do 100m)
      • 1000Base-T: kabel UTP kat. 5, lub 5e (do 100m)
    • Wskaźniki LED  Power, Link/Act, 1000Mbps
    • Wymiary: 294*180*44 mm
    • Dopuszczalna temperatura pracy: 0℃~40℃ (32℉~104℉)
    • Dopuszczalna temperatura przechowywania: -40℃~70℃ (-40℉~158℉)
    • Dopuszczalna wilgotność powietrza: 10%~90%, niekondensująca
    • Dopuszczalna wilgotność przechowywania: 5%~90%, niekondensująca
    • Zasilanie: 100-240VAC, 50/60Hz
    Switch typeUnmanaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Power connectorDC-in jack
    Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G supportNo
    Port mirroringYes
    Full duplexYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Auto MDI/MDI-XYes
    VLAN supportYes
    Number of VLANs32
    MAC address table8000 entries
    Switching capacity32 Gbit/s
    Throughput23.08 Mpps
    Store-and-forwardYes
    Number of queues4
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory0.5 MB
    IGMP snoopingYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    CertificationFCC, CE, RoHS
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)11.73 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)5 - 90%
    Width294 mm
    Depth180 mm
    Height44 mm
    Cables includedAC
    User guideYes
    Rack mount kitYes
    Harmonized System (HS) code85176990
    Description
    TP-Link TL-SG1016D. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
    Description
    16x10Base-T / 100Base-TX / 1000Base-T | IEEE 802.3x | Cable distance 100m at Cat.5 | Auto-negotiation | Switching capacity 32 Gbps | Unit Net Weight 1.55 kg
    Description
    Portu skaits: 16, Portu ātrums: 10/100/1000 Mb/s, Garantija: 2 gadi
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    Weight0.3
    Gross weight0.6
    Description

    Type of RJ-45 Ethernet ports for the main connection: Gigabit Ethernet (10/100/1000),

    Number of RJ-45 Ethernet ports for the main connection: 16.

    Full-duplex mode.

    Address table size: 8000 records,

    Switching capacity: 32 Gbit/s.

    Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x.

    Power connector: DC socket. Rack mounting





    Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000),

    Basic switching RJ-45 Ethernet portu daudzums: 16.

    Pilns duplekss.

     Adrešu tabulas izmērs: 8000 ieraksti,

    Komutācijas ietilpība: 32 Gbit/s.

    Tīkla standarts: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x.

    Saspraudnis: DC-ligzda. Statņa montāža

    Тип RJ-45 Ethernet портов для основного подключения: Gigabit Ethernet (10/100/1000),

    Количество RJ-45 Ethernet портов для основного подключения: 16.

    Полнодуплексный режим.

    Размер адресной таблицы: 8000 записей,

    Коммутационная способность: 32 Gbit/s.

    Стандарты сети: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x.

    Разьъм питания: Гнездо для постоянного тока. Монтаж в стойку
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    Gross depth (mm)405
    Gross height (mm)255
    Gross weight1.975
    Gross width (mm)80
    Net weight1.347
    Packing quantity8
    Paper/Pasteboard613
    Plastic (No PET)15.00
    Tare weight (kg)0.628
    Volume (m3)0.008262
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Gross depth master carton525
    Gross width master carton425
    Gross height master carton345
    Net weight master carton15.8
    Tare weight master carton1.309
    PET4
    Warranty60
    Producer product name TL-SG1016D
    Producer product familySwitch
    POENo
    Predominant port type10/100/1000 Mbps (RJ-45)
    Switch typeUnmanaged
    Power supply typeExternal
    Form factorDesktop/Rackmountable
    Case designSteel case
    Other featuresSupports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    Palette Qty176
    ProducerTP-LINK
    Description
    - 16 10/100/1000Mbps ports- Innovative energy-efficient technology saves power up to 40%*- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation- Plug & play designThe TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

    Products specifications
    WRL stadarti 802.11b
    Properties RJ-45
    RJ-45 port 16
    RJ-45 port 12
    RJ-45 port 1
    Width250
    Height400
    Depth80
    Weight2219
    Description

    Przełącznik 16 portowy, Gb

    • Standardy i protokoły: IEEE802.3, 802.3u, 802.3ab, 802.3x
    • CSMA/CD, TCP/IP
    • Podstawowe funkcje: duża prędkość przewodowej transmisji, obsługa funkcji auto-learning i auto-aging adresów MAC, wsparcie standardu kontroli przepustowości dla trybu pełnego dupleksu (IEEE802.3x) oraz funkcji back pressure dla trybu pół dupleksu
    • Wydajność przełączania:  32Gb/s
    • Tablica adresów MAC:  8k
    • Szybkość przekierowań:
      • 10BASE-T: 14880pps/port
      • 100BASE-TX: 148800pps/port
      • 1000BASE-T: 1488000pps/port
    • Metoda transmisji:  Store-and-Forward
    • Porty: 16 portów RJ45 10/100/1000Mb/s (automatyczna negocjacja połączeń, automatyczne krosowanie MDI/MDIX)
    • Okablowanie sieciowe:
      • 10Base-T: kabel UTP kat. 3, 4 lub 5 (do 100m)
      • Kabel STP EIA/TIA-568 100Ω (do 100m)
      • 100Base-Tx: kabel UTP kat. 5, lub 5e (do 100m)
      • Kabel STP EIA/TIA-568 100Ω (do 100m)
      • 1000Base-T: kabel UTP kat. 5, lub 5e (do 100m)
    • Wskaźniki LED  Power, Link/Act, 1000Mbps
    • Wymiary: 294*180*44 mm
    • Dopuszczalna temperatura pracy: 0℃~40℃ (32℉~104℉)
    • Dopuszczalna temperatura przechowywania: -40℃~70℃ (-40℉~158℉)
    • Dopuszczalna wilgotność powietrza: 10%~90%, niekondensująca
    • Dopuszczalna wilgotność przechowywania: 5%~90%, niekondensująca
    • Zasilanie: 100-240VAC, 50/60Hz
    Switch typeUnmanaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Power connectorDC-in jack
    Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G supportNo
    Port mirroringYes
    Full duplexYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Auto MDI/MDI-XYes
    VLAN supportYes
    Number of VLANs32
    MAC address table8000 entries
    Switching capacity32 Gbit/s
    Throughput23.08 Mpps
    Store-and-forwardYes
    Number of queues4
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory0.5 MB
    IGMP snoopingYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    CertificationFCC, CE, RoHS
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)11.73 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)5 - 90%
    Width294 mm
    Depth180 mm
    Height44 mm
    Cables includedAC
    User guideYes
    Rack mount kitYes
    Harmonized System (HS) code85176990
    Description
    TP-Link TL-SG1016D. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
    Description
    16x10Base-T / 100Base-TX / 1000Base-T | IEEE 802.3x | Cable distance 100m at Cat.5 | Auto-negotiation | Switching capacity 32 Gbps | Unit Net Weight 1.55 kg
    Description
    Portu skaits: 16, Portu ātrums: 10/100/1000 Mb/s, Garantija: 2 gadi
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    Weight0.3
    Gross weight0.6
    Description

    Type of RJ-45 Ethernet ports for the main connection: Gigabit Ethernet (10/100/1000),

    Number of RJ-45 Ethernet ports for the main connection: 16.

    Full-duplex mode.

    Address table size: 8000 records,

    Switching capacity: 32 Gbit/s.

    Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x.

    Power connector: DC socket. Rack mounting





    Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000),

    Basic switching RJ-45 Ethernet portu daudzums: 16.

    Pilns duplekss.

     Adrešu tabulas izmērs: 8000 ieraksti,

    Komutācijas ietilpība: 32 Gbit/s.

    Tīkla standarts: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x.

    Saspraudnis: DC-ligzda. Statņa montāža

    Тип RJ-45 Ethernet портов для основного подключения: Gigabit Ethernet (10/100/1000),

    Количество RJ-45 Ethernet портов для основного подключения: 16.

    Полнодуплексный режим.

    Размер адресной таблицы: 8000 записей,

    Коммутационная способность: 32 Gbit/s.

    Стандарты сети: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x.

    Разьъм питания: Гнездо для постоянного тока. Монтаж в стойку
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    DescriptionTP-LINK 16port Gigab. ECO-Switch 19in
    VatTypeVAT
    Weight2.060000000
    Height85.000000000
    Width252.000000000
    Length413.000000000
    Description
    TP-LINK 16port Gigab. ECO-Switch 19in
    Gross depth (mm)405
    Gross height (mm)255
    Gross weight1.975
    Gross width (mm)80
    Net weight1.347
    Packing quantity8
    Paper/Pasteboard613
    Plastic (No PET)15.00
    Tare weight (kg)0.628
    Volume (m3)0.008262
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Gross depth master carton525
    Gross width master carton425
    Gross height master carton345
    Net weight master carton15.8
    Tare weight master carton1.309
    PET4
    Warranty60
    Producer product name TL-SG1016D
    Producer product familySwitch
    POENo
    Predominant port type10/100/1000 Mbps (RJ-45)
    Switch typeUnmanaged
    Power supply typeExternal
    Form factorDesktop/Rackmountable
    Case designSteel case
    Other featuresSupports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    Palette Qty176
    ProducerTP-LINK
    Description
    - 16 10/100/1000Mbps ports- Innovative energy-efficient technology saves power up to 40%*- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation- Plug & play designThe TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.
    Customers who bought this item also bought
    Picture of Faber 112.0158.127

    Faber 112.0158.127

    €87.30 incl tax
    Gartraukiai Hoods Okapy Tvaika nosūcēji Вытяжки Buitinė technika, nuotrauka Household appliances, photo Sadzīves tehnika, foto Sprzęt gospodarstwa domowego, fot. Бытовая техника, фото Buitinė technika - dideli Household appliances - large Sadzīves tehnika - lielā Sprzęt AGD - duży Бытовая техника - большоя Gartraukiai Hoods Okapy Tvaika nosūcēji Вытяжки 112.0158.127
    Recently viewed products
    Information
    Customer service
    My account
    Contact Us
    • Ogre, Mālkalnes prospekts 5-18, LV-5003
    • (+371) 22111444, (+371) 22500002
    Our Partners
    Copyright © 2024 Tera.lv. All rights reserved.
