    Manufacturer: GEMBIRD

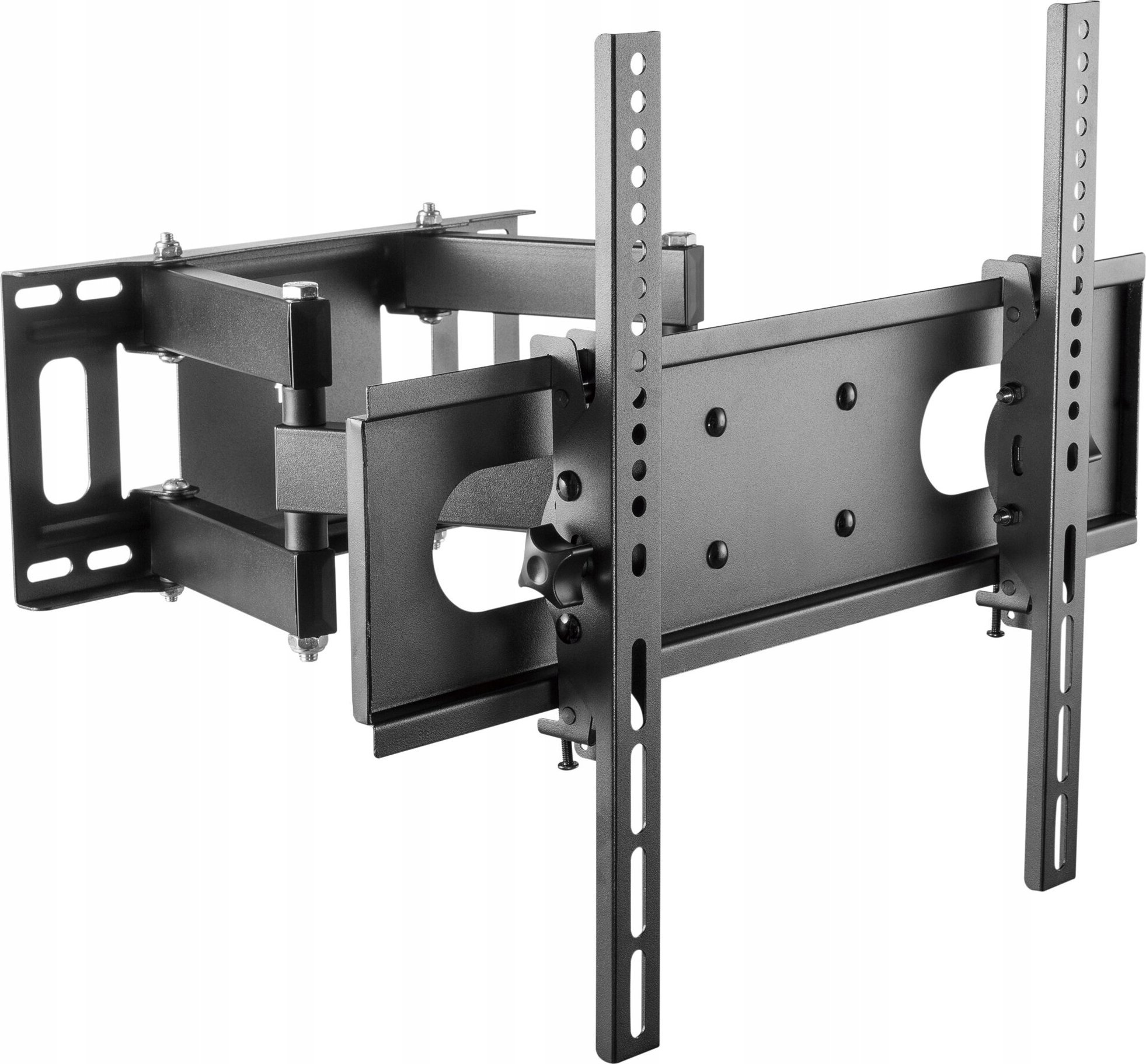

    Tv Stiprinājums Gembird TV Wall Mount (Full-Motion)


    €26.84 incl tax

    SKU: ST07740088
    Manufacturer part number: WM-55ST-04
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    LV
    LV
    PL

    Products specifications
    Color Black
    UsageTV
    TypeWall
    Number of supported monitors1
    Screen size (min)32 (Cal)
    Screen size (max)55 (Cal)
    VESA100 x 100
    VESA75 x 75
    VESA100 x 150
    VESA400 x 200
    VESA400 x 300
    VESA300 x 200
    VESA100 x 200
    VESA200 x 100
    VESA300 x 300
    VESA400 x 400
    VESA200 x 200
    VESA150 x 150
    VESA150 x 100
    Load (max)35 (kilogram)
    Range adjustmentYes
    rotation60 (Degrees)
    Corner mountNo
    Cable managementYes
    StuffPlastic
    StuffSteel
    Accessories included
    • Uchwyt ścienny
    • Elementy montażowe
    • Instrukcja obsługi
    ColorBlack
    Dimensions

    400 x 435 x 430 mm

    Weight4.15 (kilogram)
    DesignationCE+WEEE
    Description

    Uchwyt ścienny na telewizor (obrót i pochylenie), 32"- 55", do 35 kg

    • Jednoramienny, pełnoekranowy uchwyt ścienny do telewizora
    • Obsługuje większość telewizorów LCD/LED o przekątnej od 32 do 55 cali
    • Zgodność ze standardem VESA, maks. 400 mm x 400 mm
    • Odległość od ściany 78 - 400 mm
    • Umożliwia obrót o 120 stopni i przechylanie o 20 stopni
    • Zawiera wszystkie niezbędne materiały instalacyjne
    Description
    1xNumber of displays supported | Maximum weight capacity 35 kg | Minimum screen size 32 " | Maximum screen size 55 " | Minimum VESA mount 75 x 75 mm | Maximum VESA mount 400 x 400 mm | Mounting type Wall | Tilt adjustment Yes | Tilt angle range 0 - -20 ° | Swivelling Yes | Distance to the wall (min) 78 mm | Colour Black | Housing material Steel/Plastic | Weight 4.15 kg
    Weight3
    Gross weight3.2
    Description

    The GEMBIRD WM-55ST-04 supports TVs with a diagonal of 32 to 55 inches. VESA compliant, Max. 400 mm x 400 mm. The maximum permissible load on the handle is 35 kg. Its design allows you to rotate horizontally from +60 to -60 degrees and tilt from 0 to -20 degrees. The holder also allows you to adjust the distance of the TV from the wall from 78 to 400 mm. The package contains all the necessary installation materials.

    Gembird WM-55st-04 kronšteins atbalsta televizorus no 32 līdz 55 collām. Atbilst VESA standartam, maks. 400 mm x 400 mm. maksimālā pieļaujamā roktura slodze ir 35 kg. tā dizains ļauj horizontāli griezties no +60 līdz -60 grādiem un noliekties no 0 līdz -20 grādiem. Stiprinājums ļauj arī pielāgot televizora attālumu no sienas no 78 līdz 400 mm. Iepakojumā ir visi nepieciešamie montāžas Materiāli.

    Кронштейн Gembird WM-55st-04 поддерживает телевизоры с диагональю от 32 до 55 дюймов. Соответствует стандарту VESA, макс. 400 мм х 400 мм. Максимально допустимая нагрузка на ручку составляет 35 кг. Его конструкция позволяет горизонтально вращаться от +60 до -60 градусов и наклоняться от 0 до -20 градусов. Крепление также позволяет регулировать расстояние телевизора от стены от 78 до 400 мм. Упаковка содержит все необходимые монтажные материалы.

    Gross depth (mm)560.00
    Gross depth (mm)560.00
    Gross height (mm)91.00
    Gross height (mm)91.00
    Gross weight5.35
    Gross width (mm)184.00
    Gross width (mm)184.00
    Net weight4.15
    Tare weight (kg)1.20
    Tare weight (kg)1.20
    Volume (m3)0.01
    Volume (m3)0.01
