    Manufacturer: ROLINE

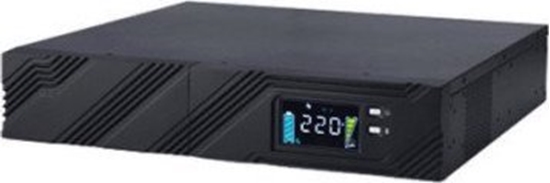

    Roline LineSecure III 1000R - Line Interactive UPS, Rack Version


    €404.42 incl tax

    SKU: ST08160320
    Manufacturer part number: 19.40.1126
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Socket (RS232) yes
    Tips Line Interactive
    Batteries Batteries
    Socket (USB) yes
    manufacturerROLINE
    product groupUPS
    product typeUPS Line Interactive, Rackmount
    colourblack
    weight14.4 kg
    height of packaging (single piece)200 mm
    width of packaging (single piece)600 mm
    depth of packaging (single piece)500 mm
    package weight (single piece)18.625 kg
    gross weight18.625
    current catalog editionC25-07.02
    current catalog page10.05
    scope of deliveryUPS, Software, Cable Set, (19" Rail Kit not included > se...
    height84 mm
    width428 mm
    depth431 mm
    operating temperature min.0 °C
    operating temperature max.40 °C
    dimensions (hxwxd)84 x 483 x 430
    interfaceUSB, RS232
    outputs8
    mounting formRackmount
    rs-232 interfaceyes
    usb 2.0 interfaceyes
    activityDisplay
    acoustic level40dBA
    classification (iec 62040-3)VI-SS-333
    ups technologyLine Interactive
    output (va/w)1000 / 800
    backup time full/half-load3 / 6 min
    voltage (input)230V +- 10%
    voltage (output)230V
    frequency50Hz
    connector type (input)Connector IEC320 C14
    connector type (output)8 x Cold Connector IEC320 C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter card1
    additional over current protectorTelephone/Fax
    activity displayLCD
    incl.management softwareWindows
    internal coolingActive, fan
    ambient temperature0-40°C
    hot swap batteriesno
    bypassno
    activity led--
    efficiency95 %
    delay expansion unit--
    backup time3 min
    power class1000 ... 1900 VA
    slots for adapter card1
    Description

    The ROLINE LineSecure UPS series uses line-interactive technology and is used wherever reliable protection is required.

    The LineSecure III UPS series, with its intelligent design and pure sine wave output for connected applications, is the best choice for office, SOHO, and home applications. It provides high-quality pure sine wave output for connected critical devices. Additionally equipped with an AVR (Automatic Voltage Regulator), it stabilizes fluctuating voltages such as overvoltages and undervoltages as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and increases user-friendliness. The LS III series offers power protection, including overload, surge, and short-circuit protection. The USB port allows you to monitor UPS status, schedule UPS events, and receive instant notifications via a computer system or portable device. It also has a slot for an SNMP/web card.

    In areas with significant voltage fluctuations, the UPS uses buck and boost regulation to compensate for differences between the input and target voltage. The battery management system monitors the UPS batteries and only charges them when necessary, extending battery life by up to 50%.

    • RS232 interface
    • USB interface
    • Operating display via LCD panel
    • Battery management
    • Automatic voltage regulation
    • Tel/modem protection
    • SNMP/WEB via optional LAN adapter
    • Sine wave output

    Products specifications
    Socket (RS232) yes
    Tips Line Interactive
    Batteries Batteries
    Socket (USB) yes
    manufacturerROLINE
    product groupUPS
    product typeUPS Line Interactive, Rackmount
    colourblack
    weight14.4 kg
    height of packaging (single piece)200 mm
    width of packaging (single piece)600 mm
    depth of packaging (single piece)500 mm
    package weight (single piece)18.625 kg
    gross weight18.625
    current catalog editionC25-07.02
    current catalog page10.05
    scope of deliveryUPS, Software, Cable Set, (19" Rail Kit not included > se...
    height84 mm
    width428 mm
    depth431 mm
    operating temperature min.0 °C
    operating temperature max.40 °C
    dimensions (hxwxd)84 x 483 x 430
    interfaceUSB, RS232
    outputs8
    mounting formRackmount
    rs-232 interfaceyes
    usb 2.0 interfaceyes
    activityDisplay
    acoustic level40dBA
    classification (iec 62040-3)VI-SS-333
    ups technologyLine Interactive
    output (va/w)1000 / 800
    backup time full/half-load3 / 6 min
    voltage (input)230V +- 10%
    voltage (output)230V
    frequency50Hz
    connector type (input)Connector IEC320 C14
    connector type (output)8 x Cold Connector IEC320 C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter card1
    additional over current protectorTelephone/Fax
    activity displayLCD
    incl.management softwareWindows
    internal coolingActive, fan
    ambient temperature0-40°C
    hot swap batteriesno
    bypassno
    activity led--
    efficiency95 %
    delay expansion unit--
    backup time3 min
    power class1000 ... 1900 VA
    slots for adapter card1
    Description

    The ROLINE LineSecure UPS series uses line-interactive technology and is used wherever reliable protection is required.

    The LineSecure III UPS series, with its intelligent design and pure sine wave output for connected applications, is the best choice for office, SOHO, and home applications. It provides high-quality pure sine wave output for connected critical devices. Additionally equipped with an AVR (Automatic Voltage Regulator), it stabilizes fluctuating voltages such as overvoltages and undervoltages as well as other voltage problems and provides a stable output voltage for the most important devices. The LS III series is equipped with a color LCD display that shows the UPS status and increases user-friendliness. The LS III series offers power protection, including overload, surge, and short-circuit protection. The USB port allows you to monitor UPS status, schedule UPS events, and receive instant notifications via a computer system or portable device. It also has a slot for an SNMP/web card.

    In areas with significant voltage fluctuations, the UPS uses buck and boost regulation to compensate for differences between the input and target voltage. The battery management system monitors the UPS batteries and only charges them when necessary, extending battery life by up to 50%.

    • RS232 interface
    • USB interface
    • Operating display via LCD panel
    • Battery management
    • Automatic voltage regulation
    • Tel/modem protection
    • SNMP/WEB via optional LAN adapter
    • Sine wave output
