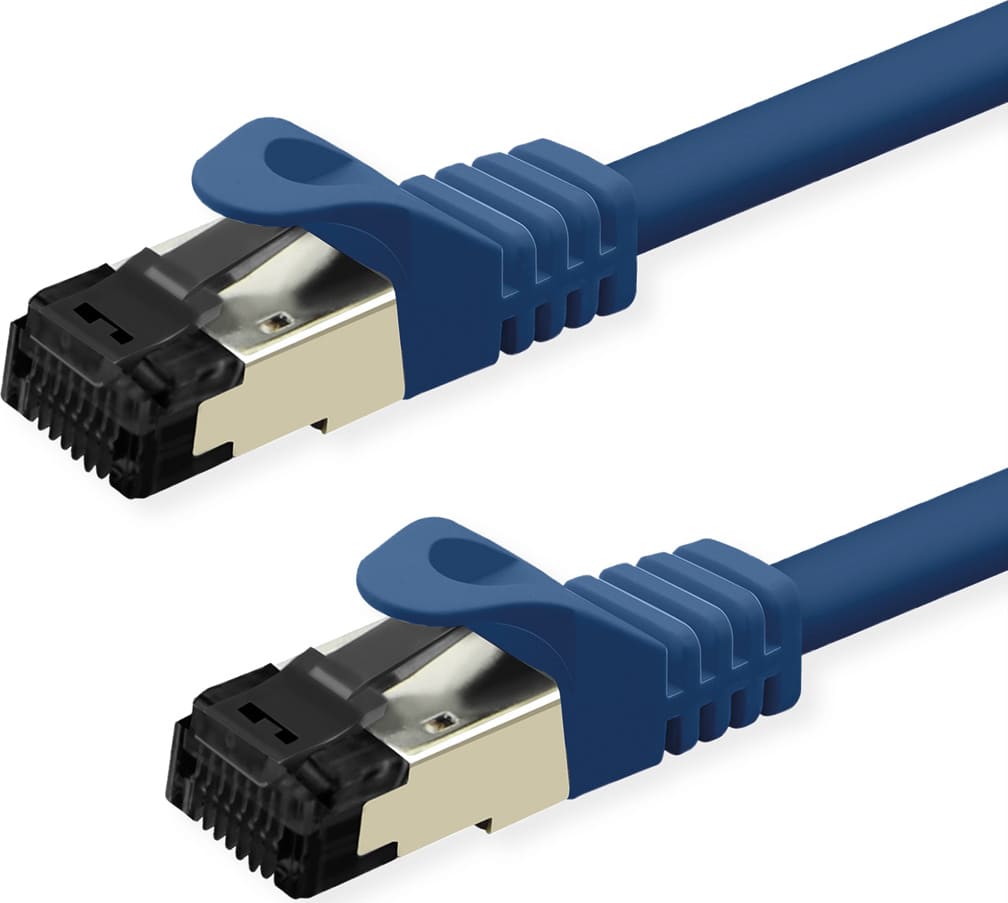

Value S/FTP Patch Cord Cat.8 (Class I), stranded, LSOH, blue, 3 m

Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are halogen-free and flame-retardant (LSOH).

• Prepared double shielded Twisted Pair cable with screened RJ45 connector on both ends
• Suitable for PoE applications and multimedia applications were the extension is working over TP
• Suitable for 10 GBit to IEEE 802.3an and for Power over Ethernet
• Suitable for 25/40 GBit to IEEE 802.3bq applications (4-pair balanced twisted-pair cabling with 2 connectors over distances up to 30m)
• High quality plugs with gold plated contacts
• Contact settings 1:1, in accordance with the EIA/TIA 568 standard
• Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)
