    Manufacturer: INTELLINET

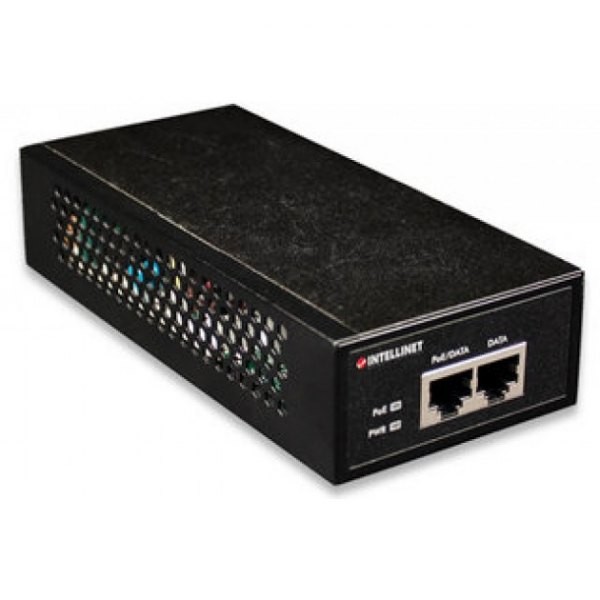

    Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE)


    €87.17 incl tax

    SKU: ST02831662
    Manufacturer part number: 560566
    Manufacturer Homepage
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    RJ-45 port 2
    WRL stadarti 802.11b
    RJ-45 port 1
    Properties RJ-45
    RJ-45 port 12
    Dimensions

    154 x 72 x 35 mm
    Weight0.79 (kilogram)
    Other features

     Media transmisyjne:
    - 100Base-TX Cat5 UTP/STP RJ45, 8 pin
    - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
    Porty:- 1 x RJ-45 1000 Mb/s port wejścia danych
    - 1 x RJ-45 1000 Mb/s port wyjścia danych oraz zasilania
    - 1 x port do podłączenia zewnętrznego zasilacza
    Zabezpieczenia:
    - Zabezpieczenie przeciwprzepięciowe typu short GND
    - Zabezpieczenie przed przeciążeniem dla prądu powyżej 1.8 A
    - Zabezpieczenie przed wysokim napięciem powyżej 58 V
    Kompatybilność: urz- Bezprzewodowe Punkty Dostępowe (524735, 524711, 525251)
    - Rozdzielacz PoE+ IEEE 802.3at (560443)
    - Kamery sieciowe (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-IRV)
    Certyfikaty: FCC Class A Part 15, CE 89/336/EEC
    Power supply

    - Wejście: 100-240 V AC, 50-60 Hz
    - Pobór mocy: 42 W (maksymalnie)
    Delivery set

    - Adapter zasilania PoE Gigabit 1-Portowy
    - Kabel zasilający
    - Szybka Instrukcja Instalacji
    Width155
    Height205
    Depth73
    Weight773
    Description

    - Umożliwia zasilanie poprzez sieć urządzenia POE Gigabit;
    - Moc wyjściowa do 30 W;
    - Współpraca z urządzeniami zgodnymi ze standardem IEEE 802.3af oraz 802.3at (Access Pointy, telefony VOIP, kamery IP);
    - Obsługa detekcji standardu IEEE 802.3 at/af oraz ochrona przed zwarciem, przeciążeniem i zbyt wysokim napięciem;
    Ethernet interface typeGigabit Ethernet
    Ethernet LAN data rates10,100,1000 Mbit/s
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Cable types supportedCat5, Cat5e
    Product colourBlack
    Housing materialMetal
    LED indicatorsPoE, Power
    Power protection featuresOver voltage, Overload, Short circuit
    CertificationFCC Class A Subpart B, CE, RoHS, UKCA, NDAA
    Ethernet LAN (RJ-45) ports2
    Input voltage100 - 240 V
    Power consumption (max)42 W
    Operating temperature (T-T)5 - 45 °C
    Operating relative humidity (H-H)10 - 90%
    Storage temperature (T-T)-20 - 55 °C
    Width72 mm
    Depth154 mm
    Height35 mm
    Weight790 g
    Number of products included1 pc(s)
    ManualYes
    Harmonized System (HS) code85044095
    Description
    Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE). Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Housing material: Metal, LED indicators: PoE, Power. Input voltage: 100 - 240 V, Power consumption (max): 42 W. Width: 72 mm, Depth: 154 mm, Height: 35 mm. Number of products included: 1 pc(s)
    Status10 dienas
    Description
    Reduce costs by using existing Cat5 cable to provide both power and data. The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices. Reduce Wiring Costs No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.

    Ethernet interface type Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Cable types supported Cat5, Cat5e
    Product colour Black
    Housing material Metal
    LED indicators PoE, Power
    Power protection features Over voltage, Overload, Short circuit
    Certification FCC Class A Subpart B, CE, RoHS, UKCA, NDAA
    Ethernet LAN (RJ-45) ports 2
    Input voltage 100 - 240 V
    Power consumption (max) 42 W
    Operating temperature (T-T) 5 - 45 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage temperature (T-T) -20 - 55 °C
    Width 72 mm
    Depth 154 mm
    Height 35 mm
    Weight 790 g
    Number of products included 1 pc(s)
    Manual Y
    Harmonized System (HS) code 85044095

    Products specifications
    RJ-45 port 2
    WRL stadarti 802.11b
    RJ-45 port 1
    Properties RJ-45
    RJ-45 port 12
    Dimensions

    154 x 72 x 35 mm
    Weight0.79 (kilogram)
    Other features

     Media transmisyjne:
    - 100Base-TX Cat5 UTP/STP RJ45, 8 pin
    - 1000Base-T Cat5e UTP/STP RJ45, 8 pin
    Porty:- 1 x RJ-45 1000 Mb/s port wejścia danych
    - 1 x RJ-45 1000 Mb/s port wyjścia danych oraz zasilania
    - 1 x port do podłączenia zewnętrznego zasilacza
    Zabezpieczenia:
    - Zabezpieczenie przeciwprzepięciowe typu short GND
    - Zabezpieczenie przed przeciążeniem dla prądu powyżej 1.8 A
    - Zabezpieczenie przed wysokim napięciem powyżej 58 V
    Kompatybilność: urz- Bezprzewodowe Punkty Dostępowe (524735, 524711, 525251)
    - Rozdzielacz PoE+ IEEE 802.3at (560443)
    - Kamery sieciowe (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-IRV)
    Certyfikaty: FCC Class A Part 15, CE 89/336/EEC
    Power supply

    - Wejście: 100-240 V AC, 50-60 Hz
    - Pobór mocy: 42 W (maksymalnie)
    Delivery set

    - Adapter zasilania PoE Gigabit 1-Portowy
    - Kabel zasilający
    - Szybka Instrukcja Instalacji
    Width155
    Height205
    Depth73
    Weight773
    Description

    - Umożliwia zasilanie poprzez sieć urządzenia POE Gigabit;
    - Moc wyjściowa do 30 W;
    - Współpraca z urządzeniami zgodnymi ze standardem IEEE 802.3af oraz 802.3at (Access Pointy, telefony VOIP, kamery IP);
    - Obsługa detekcji standardu IEEE 802.3 at/af oraz ochrona przed zwarciem, przeciążeniem i zbyt wysokim napięciem;
    Ethernet interface typeGigabit Ethernet
    Ethernet LAN data rates10,100,1000 Mbit/s
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Cable types supportedCat5, Cat5e
    Product colourBlack
    Housing materialMetal
    LED indicatorsPoE, Power
    Power protection featuresOver voltage, Overload, Short circuit
    CertificationFCC Class A Subpart B, CE, RoHS, UKCA, NDAA
    Ethernet LAN (RJ-45) ports2
    Input voltage100 - 240 V
    Power consumption (max)42 W
    Operating temperature (T-T)5 - 45 °C
    Operating relative humidity (H-H)10 - 90%
    Storage temperature (T-T)-20 - 55 °C
    Width72 mm
    Depth154 mm
    Height35 mm
    Weight790 g
    Number of products included1 pc(s)
    ManualYes
    Harmonized System (HS) code85044095
    Description
    Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE). Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Housing material: Metal, LED indicators: PoE, Power. Input voltage: 100 - 240 V, Power consumption (max): 42 W. Width: 72 mm, Depth: 154 mm, Height: 35 mm. Number of products included: 1 pc(s)
    Status10 dienas
    Description
    Reduce costs by using existing Cat5 cable to provide both power and data. The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices. Reduce Wiring Costs No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.

    Ethernet interface type Gigabit Ethernet
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
    Cable types supported Cat5, Cat5e
    Product colour Black
    Housing material Metal
    LED indicators PoE, Power
    Power protection features Over voltage, Overload, Short circuit
    Certification FCC Class A Subpart B, CE, RoHS, UKCA, NDAA
    Ethernet LAN (RJ-45) ports 2
    Input voltage 100 - 240 V
    Power consumption (max) 42 W
    Operating temperature (T-T) 5 - 45 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage temperature (T-T) -20 - 55 °C
    Width 72 mm
    Depth 154 mm
    Height 35 mm
    Weight 790 g
    Number of products included 1 pc(s)
    Manual Y
    Harmonized System (HS) code 85044095
