    Manufacturer: ZYXEL

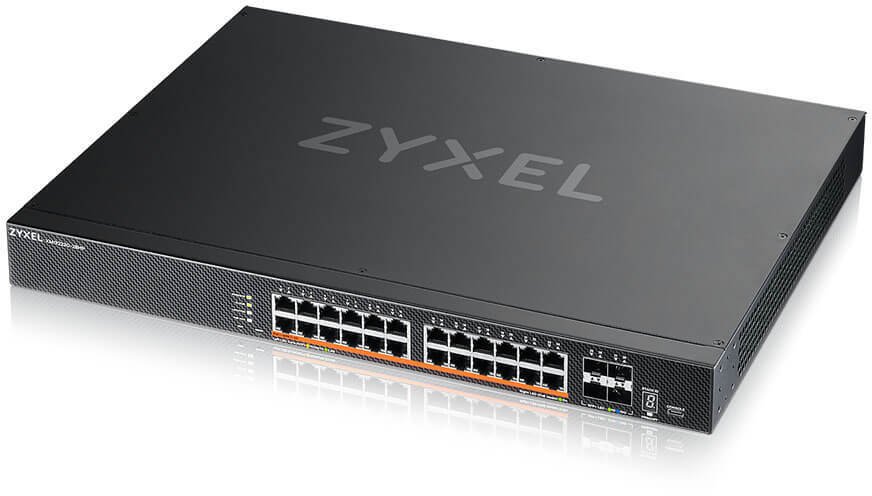

    Zyxel XMG2230-28HP 28-port Smart Switch, NebulaFlex


    €1098.35 incl tax

    SKU: ST09965549
    Manufacturer part number: XMG2230-28HP-ZZ0101F
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    PL
    LV

    Products specifications
    Properties RJ-45
    Properties USB Type-C
    Properties USB
    power over ethernet (poe)Yes
    weight4.53 kg
    height44 mm
    width441 mm
    depth330 mm
    switch typeManaged
    stackableYes
    switch layerL2/L3
    quality of service (qos) supportYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports type2.5G Ethernet (100/1000/2500)
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    copper ethernet cabling technology2.5GBASE-T, 100BASE-T, 1000BASE-T
    port mirroringYes
    mac address table32000 entries
    switching capacity200 Gbit/s
    forwarding rate148.8 Mpps
    packet buffer memory2 MB
    multicast supportYes
    rack mountingYes
    form factor1U
    product colourBlack
    led indicatorsYes
    noise level48.85 dB
    mean time between failures (mtbf)554612.62 h
    power consumption (max)1519.1 W
    total power over ethernet (poe) budget1440 W
    operating temperature (t-t)-20 - 50 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 95%
    storage relative humidity (h-h)5 - 95%
    heat dissipation2856 BTU/h
    package width580 mm
    package depth503 mm
    package height95 mm
    package weight6.81 kg
    certificationFCC Part 15 (Class A) CE EMC (Class A) BSMI EMC
    compliance certificatesBSMI, Low Voltage Directive (LVD), RoHS
    power sourceAC/PoE
    ac input voltage100 - 240 V
    ac input frequency50/60 Hz
    jumbo frames supportYes
    security algorithmsSNMP, SNMPv2, SNMPv3
    jumbo frames12
    igmp snoopingYes
    power supply includedYes
    internal memory1000 MB
    dc input voltage50 - 57 V
    power over ethernet (poe) type supportedPoE++ (4PPoE)
    static routeYes
    policy-based routingYes
    flash memory64 MB
    sfp+ module slots quantity4
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
    static port securityYes
    ssh/ssl supportYes
    virtual lan featuresIP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    console portRJ-45/USB Type-C
    arp inspectionYes
    number of static routes4000
    bpdu filtering/protectionYes
    authenticationGuest VLAN, MAC-based authentication
    cloud-managedYes
    configuring location settings (cli)Yes
    ip-mac-port bindingYes
    ipv4 & ipv6 featuresDual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
    igmp proxyYes
    garp vlan registration protocol (gvrp)Yes
    authentication typeIEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
    routing entries64
    number of ip interfaces32
    Description
    Zyxel XMG2230-28HP. Slēdža tips: Vadīts, Slēdža līmenis: L2/L3. Basic switching RJ-45 Ethernet portu veids: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45/USB Type-C. Adrešu tabulas izmērs: 32000 ieraksti, Komutācijas ietilpība: 200 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC ievades spriegums: 50 - 57 V. Power over Ethernet (PoE). Statņa montāža, Formas faktors: 1U

    Products specifications
    Properties RJ-45
    Properties USB Type-C
    Properties USB
    power over ethernet (poe)Yes
    weight4.53 kg
    height44 mm
    width441 mm
    depth330 mm
    switch typeManaged
    stackableYes
    switch layerL2/L3
    quality of service (qos) supportYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports type2.5G Ethernet (100/1000/2500)
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    copper ethernet cabling technology2.5GBASE-T, 100BASE-T, 1000BASE-T
    port mirroringYes
    mac address table32000 entries
    switching capacity200 Gbit/s
    forwarding rate148.8 Mpps
    packet buffer memory2 MB
    multicast supportYes
    rack mountingYes
    form factor1U
    product colourBlack
    led indicatorsYes
    noise level48.85 dB
    mean time between failures (mtbf)554612.62 h
    power consumption (max)1519.1 W
    total power over ethernet (poe) budget1440 W
    operating temperature (t-t)-20 - 50 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 95%
    storage relative humidity (h-h)5 - 95%
    heat dissipation2856 BTU/h
    package width580 mm
    package depth503 mm
    package height95 mm
    package weight6.81 kg
    certificationFCC Part 15 (Class A) CE EMC (Class A) BSMI EMC
    compliance certificatesBSMI, Low Voltage Directive (LVD), RoHS
    power sourceAC/PoE
    ac input voltage100 - 240 V
    ac input frequency50/60 Hz
    jumbo frames supportYes
    security algorithmsSNMP, SNMPv2, SNMPv3
    jumbo frames12
    igmp snoopingYes
    power supply includedYes
    internal memory1000 MB
    dc input voltage50 - 57 V
    power over ethernet (poe) type supportedPoE++ (4PPoE)
    static routeYes
    policy-based routingYes
    flash memory64 MB
    sfp+ module slots quantity4
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
    static port securityYes
    ssh/ssl supportYes
    virtual lan featuresIP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
    console portRJ-45/USB Type-C
    arp inspectionYes
    number of static routes4000
    bpdu filtering/protectionYes
    authenticationGuest VLAN, MAC-based authentication
    cloud-managedYes
    configuring location settings (cli)Yes
    ip-mac-port bindingYes
    ipv4 & ipv6 featuresDual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
    igmp proxyYes
    garp vlan registration protocol (gvrp)Yes
    authentication typeIEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
    routing entries64
    number of ip interfaces32
    Description
    Zyxel XMG2230-28HP. Slēdža tips: Vadīts, Slēdža līmenis: L2/L3. Basic switching RJ-45 Ethernet portu veids: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45/USB Type-C. Adrešu tabulas izmērs: 32000 ieraksti, Komutācijas ietilpība: 200 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC ievades spriegums: 50 - 57 V. Power over Ethernet (PoE). Statņa montāža, Formas faktors: 1U
