Ražotājs: APC

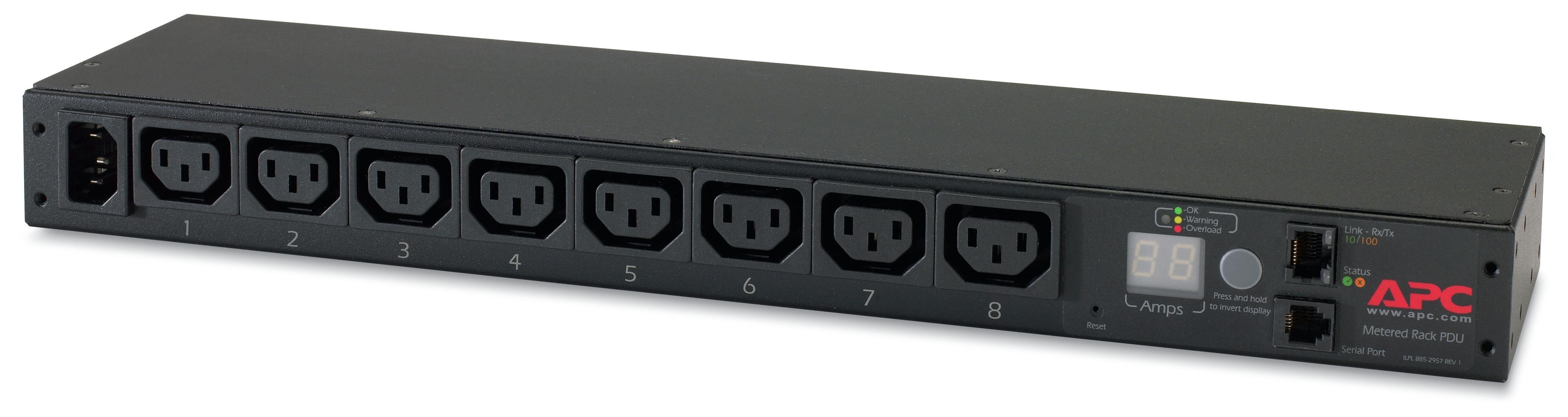

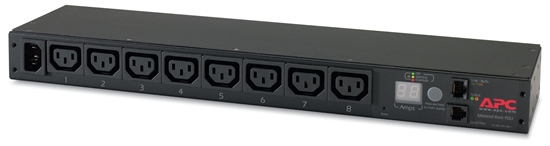

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

€855,00 ar pvn

Artikuls: ST02136770

Preces kods: AP7820B

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	16	€855,00 ar pvn

Daudzums:

Specifikācija

Nominālais efekts (VA)	2300
Ligzda (IEC320)	Jā

Description	APC NETSHELTER METERED RACK PDU 1U 12A/208V 10A/230V 8 C13 OUTLET
CountryofOrigin	CHINA
TariffHeading	84733080
PictureLocation	https://www2.f9baltic.com/productimages/big/AP7820B.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP7820B.jpg
Weight	3.090000
Height	340.000000
Length	480.000000
Width	70.000000
BoxSize	0
PalletSize	0
Cable length, m	2
Input voltage, V	200, 208, 230
Height, mm	44
Width, mm	444
Output voltage, V	208, 230
Depth, mm	102
Weight, kg	1.73
Input connection	IEC 60320 C14
Rack height (units)	1
Input current, A	15
Output power capacity (VA)	2300
Input frequency, Hz	50/60
Output interface	8 IEC 60320 C13
Description
Description	It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 12A at 208V and 10A at 230V. The PDU features 8 IEC 60320 C13 outlets and a 6.5-foot power cord with an IEC 60320 C14 plug. It has a load capacity of 2300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

PDU types	Metered
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Input connection type	IEC-320 C14
LED indicators	Yes
Cable length	1.98 m
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Monitoring	Current, Power, Voltage
Nominal input voltage	208-230 V
Maximum current	15 A
AC input frequency	50 - 60 Hz
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	15 A
Maximum total current draw per phase	10 A
Maximum power	2300 W
Dimensions (WxDxH)	444 x 102 x 44 mm
Weight	1.73 kg
Package dimensions (WxDxH)	470 x 337 x 64 mm
Package weight	2.91 kg
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC AP7820B. PDU types: Metered, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.98 m, Certification: cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI. Monitoring: Current, Power, Voltage. Nominal input voltage: 208-230 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz
