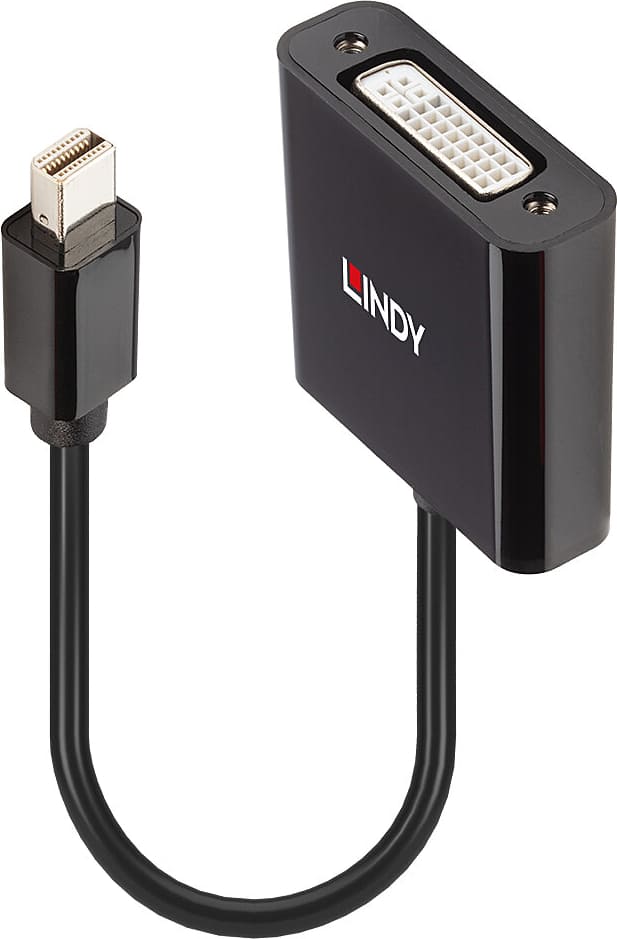

Lindy Mini DisplayPort to DVI Active Converter

Specifications

• AV Interface: Mini DisplayPort to DVI
• Interface Standard: DisplayPort 1.2 / DVI
• Supported Bandwidth: 5.4Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: PS171
• HDCP Support: HDCP 1.3
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output: DVI-D Female

Physical Properties

• Dimensions (approx.) WxDxH:
  • 11x18.7x9mm (0.43x0.74x0.35in) / mDP
  • 45x44.3x14.8mm (1.77x1.74x0.58in)
• Cable Length: 160mm (6.3in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5.0mm (0.20in)
• Minimum Bend Radius: 45mm (1.77in)
• Net Weight: 0.030kg (0.07lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.04kg (0.09lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, CP65

Package Contents

• Mini DisplayPort to DVI Active Converter

Purchasing Information

• No.: 41736
• EAN: 4002888417365
