Manufacturer: BE QUIET!

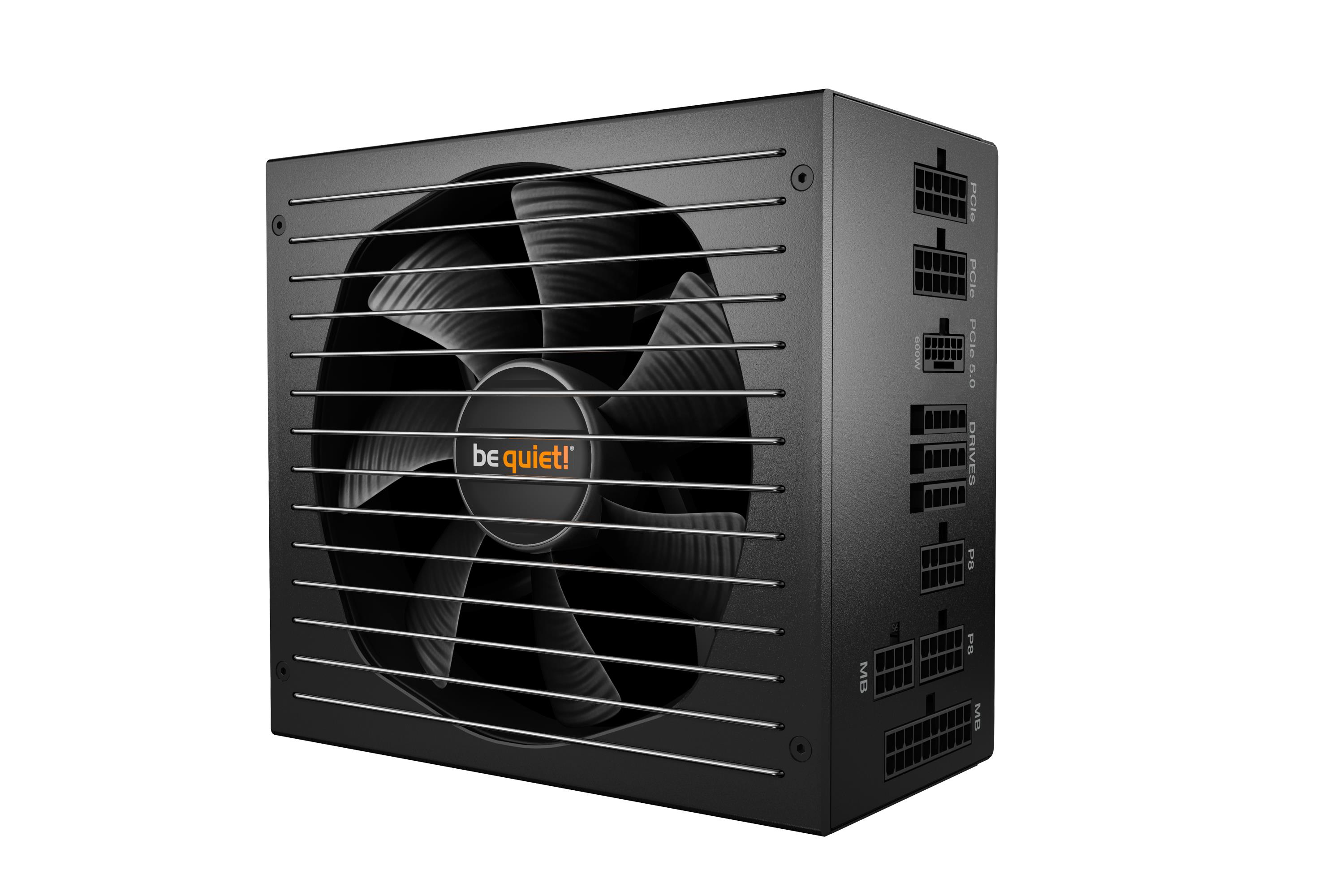

be quiet! STRAIGHT POWER 12 850W Power Supply

€196.58 incl tax

SKU: ST07412915

Manufacturer part number: BN337

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
EU	10 - 20 days	60	€196.58 incl tax
PL	8 - 15 days	129	€205.10 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Form Factor	mATX
Power supply	800W - 850W
Form Factor	ATX
Color	Black

Total power	850 W
AC input voltage	100 - 240 V
Peak power	920 W
AC input frequency	50/60 Hz
Input current	10/5 A
Power factor	0.99
Combined power (+3.3V)	150 W
Combined power (+12V)	849.6 W
Combined power (+5V)	150 W
Max output current (+3.3V)	25 A
Max output current (+12V1)	70.8 A
Max output current (+5V)	25 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Hold time	19.2 ms
Efficiency	92.3%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	60 cm
Number of SATA power connectors	9
Number of PATA power connectors	2
SATA power cable length	550,700,850,1000 mm
Peripheral (Molex) power cable length	850 mm
EPS power connector (8-pin)	Yes
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	60 cm
CPU power cable length	70 cm
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
ATX version	3.0
EPS version	2.92
Noise level	22.1 dB
Bearing technology	FDB
Mean time between failures (MTBF)	100000 h
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Cables included	CPU, SATA
Cable tie(s) included	Yes
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	1.81 kg
Package width	248 mm
Package depth	328 mm
Package height	102 mm
Package weight	3.52 kg
Package type	Box
Sustainability compliance	Yes
Sustainability certificates	RoHS, Federal Communications Commission (FCC), Triman, UKCA, ENERGY STAR, WEEE, CE, ErP
Warranty period	10 year(s)
Shipping (inner) case length	65.1 cm
Shipping (inner) case width	28.2 cm
Shipping (inner) case height	34.6 cm
Shipping (inner) case net weight	22.7 kg
Products per shipping (inner) case	6 pc(s)
Description
Description	be quiet! BN337. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 920 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, SATA
