    • Digitus 10\" Gigabit Ethernet Switch, 16-Port, Unmanaged
    Manufacturer: DIGITUS

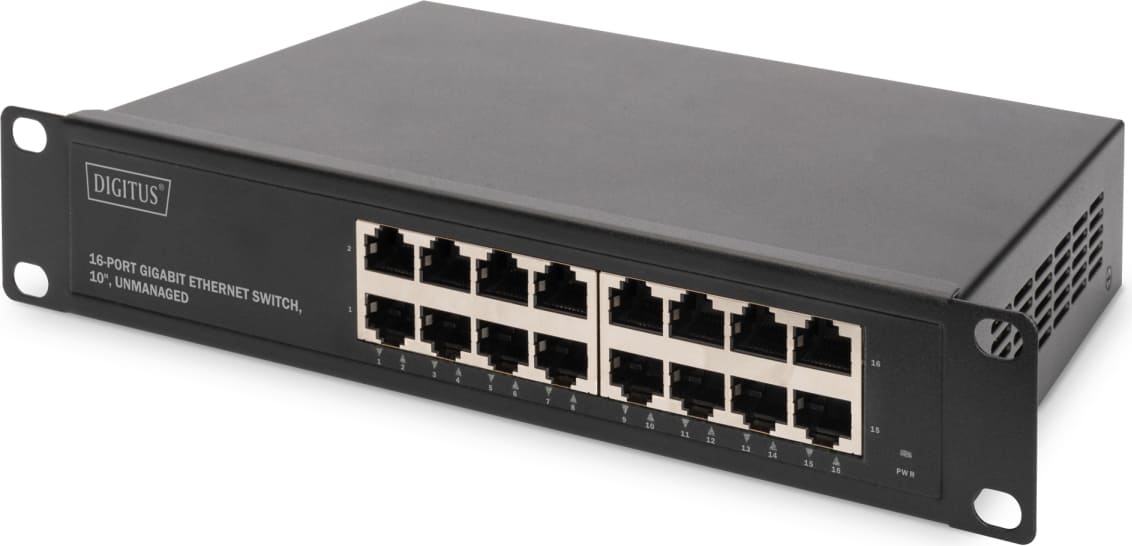

    Digitus 10\" Gigabit Ethernet Switch, 16-Port, Unmanaged


    €173.73 incl tax

    SKU: ST10328582
    Manufacturer part number: DN-80115-1
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    width(cm)24
    length(cm)6.7
    height(cm)32
    weight(kg)1.6
    volume(cm3)5145.6
    country of originCN
    Description
    Gigabit Ethernet Switch 16-port, 10 inch, unmanaged


    16 × 10/100/1000Base-T RJ45 ports
    Simple plug & play installation
    10" rack mounting (25 cm)
    Switching capacity: 32 Gbps
    Forwarding rate: up to 1,488 Mpps per port
    Store-and-forward switching
    Non-blocking architecture
    IEEE 802.3x Flow Control
    Auto-negotiation
    Auto MDI/MDI-X on all ports
    8K MAC address table
    Fanless metal housing
    Power consumption: max. 15 W

    The DIGITUS® DN-80115-1 is a compact 16-port Gigabit switch for high-performance network infrastructures with many wired end devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device offers sufficient performance reserves for parallel data transmission at high utilization. The switch operates as an unmanaged Layer 2 device and requires no configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture combined with store-and-forward technology ensures reliable, packet-checked data forwarding. IEEE 802.3x Flow Control (Full Duplex) and Back-Pressure (Half Duplex) support stable performance even with increased network load. The fanless metal housing ensures silent operation and reduces mechanical wear parts. Thanks to its 10" compatibility (1U), the switch is particularly suitable for compact network cabinets, wall distributors or structured building cabling.

    Number of ports: 16
    Industrial usage: false
    Managed: false
    Outdoorsuitable: false
    PoE (Power over Ethernet): false
    Protection against vanadlism: false
    VLAN: false
    Ports: 16 × 10/100/1000Base-TX
    Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
    Switching capacity: 32 Gbps
    Forwarding: Non-blocking
    Architecture: Store-and-Forward
    MAC addresses: 8K
    Duplex mode: Half / Full Duplex Auto-Detection
    Flow Control: IEEE 802.3x (Full Duplex), Back-Pressure (Half Duplex)
    Design: 10" (25 cm)
    Mounting: Rack or desktop
    Housing: Metal
    Fan: No (passive cooling)
    Dimensions: approx. 252 × 150 × 42 mm
    Input voltage: 100-240 V AC, 50/60 Hz
    Internal power supply unit
    Power consumption: max. 15 W
    Operating temperature: 0 °C to 40 °C
    Storage temperature: -10 °C to 70 °C
    Humidity: 5 % - 95 % (non-condensing)

    Package content:
    DN-80115-1 10" Gigabit Switch
    Mains cable
    Quick start guide
    Rubber feet

    Products specifications
    width(cm)24
    length(cm)6.7
    height(cm)32
    weight(kg)1.6
    volume(cm3)5145.6
    country of originCN
    Description
    Gigabit Ethernet Switch 16-port, 10 inch, unmanaged


    16 × 10/100/1000Base-T RJ45 ports
    Simple plug & play installation
    10" rack mounting (25 cm)
    Switching capacity: 32 Gbps
    Forwarding rate: up to 1,488 Mpps per port
    Store-and-forward switching
    Non-blocking architecture
    IEEE 802.3x Flow Control
    Auto-negotiation
    Auto MDI/MDI-X on all ports
    8K MAC address table
    Fanless metal housing
    Power consumption: max. 15 W

    The DIGITUS® DN-80115-1 is a compact 16-port Gigabit switch for high-performance network infrastructures with many wired end devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device offers sufficient performance reserves for parallel data transmission at high utilization. The switch operates as an unmanaged Layer 2 device and requires no configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture combined with store-and-forward technology ensures reliable, packet-checked data forwarding. IEEE 802.3x Flow Control (Full Duplex) and Back-Pressure (Half Duplex) support stable performance even with increased network load. The fanless metal housing ensures silent operation and reduces mechanical wear parts. Thanks to its 10" compatibility (1U), the switch is particularly suitable for compact network cabinets, wall distributors or structured building cabling.

    Number of ports: 16
    Industrial usage: false
    Managed: false
    Outdoorsuitable: false
    PoE (Power over Ethernet): false
    Protection against vanadlism: false
    VLAN: false
    Ports: 16 × 10/100/1000Base-TX
    Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
    Switching capacity: 32 Gbps
    Forwarding: Non-blocking
    Architecture: Store-and-Forward
    MAC addresses: 8K
    Duplex mode: Half / Full Duplex Auto-Detection
    Flow Control: IEEE 802.3x (Full Duplex), Back-Pressure (Half Duplex)
    Design: 10" (25 cm)
    Mounting: Rack or desktop
    Housing: Metal
    Fan: No (passive cooling)
    Dimensions: approx. 252 × 150 × 42 mm
    Input voltage: 100-240 V AC, 50/60 Hz
    Internal power supply unit
    Power consumption: max. 15 W
    Operating temperature: 0 °C to 40 °C
    Storage temperature: -10 °C to 70 °C
    Humidity: 5 % - 95 % (non-condensing)

    Package content:
    DN-80115-1 10" Gigabit Switch
    Mains cable
    Quick start guide
    Rubber feet
