    Manufacturer: EATON

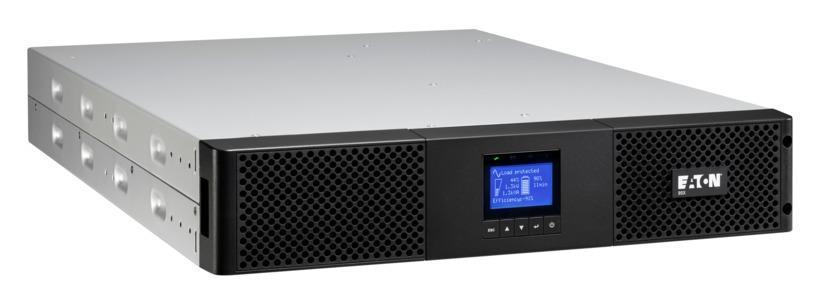

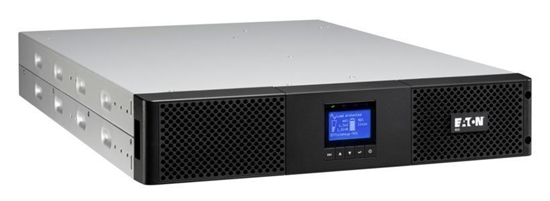

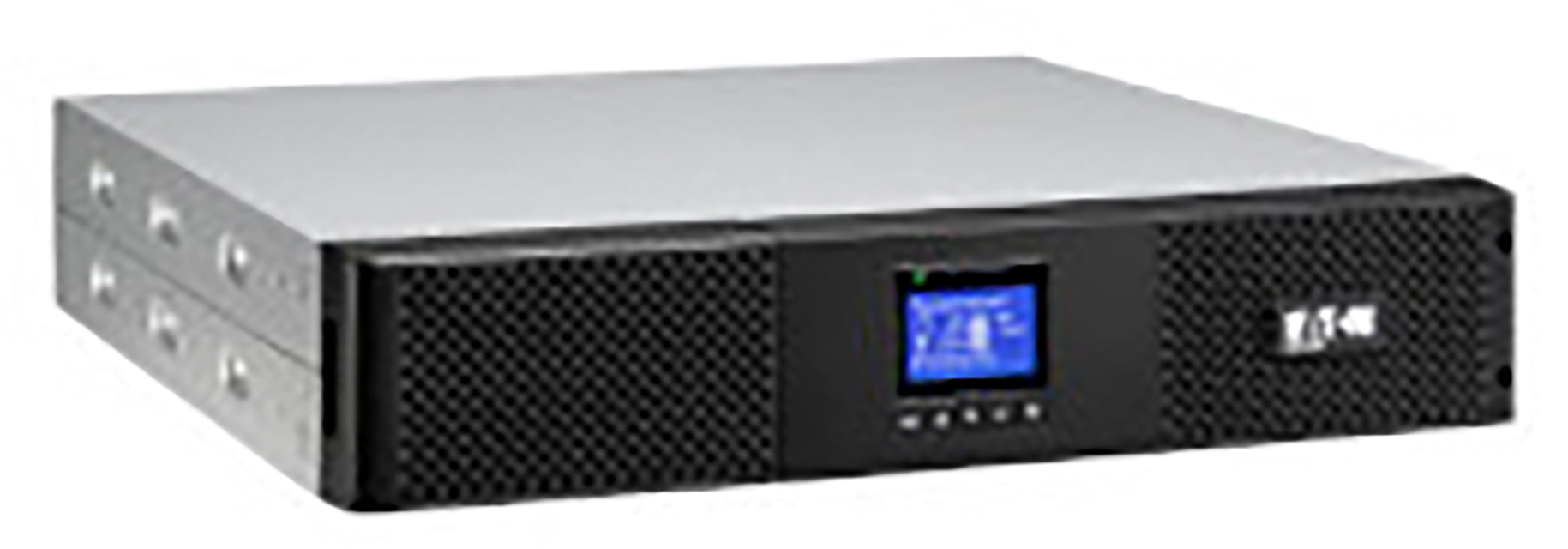

    Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 7 AC outlet(s)


    €1464.79 incl tax

    SKU: ST03305403
    Manufacturer part number: 9SX1500IR
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LT
    LV
    LV
    PL
    PL

    Products specifications
    UPS voltage regulators 1500
    Socket (RS232) yes
    Socket (IEC320) yes
    Socket (USB) yes
    Tips Online
    Output power 1350
    Tips Double Conversion Online
    Apparent power1500 VA
    Active power1350 (Watt)
    UPS Architectureon-line
    Number of phases input1 (230V)
    No. of batteries1
    Voltage240 (Volt)
    Chassis typeRack
    Input power portsIEC-C14
    Output power ports1 x IEC-C13
    Output power ports2 x Terminal
    I/O connectors1 x USB 2.0
    I/O connectors1 x RS-232 (COM)
    Environment requirements

    Temperatura robocza: 0 - 40° C
    ColorBlack
    Dimensions

    86,5 x 438 x 438 mm
    Other features
    • Gniazdo dla kart Network-M2, Network-MS, ModBus-MS lub Relay-MS
    • Wielojęzyczny graficzny wyświetlacz LCD
    Video
    Video
    DesignationCE+WEEE
    Width555
    Height580
    Depth235
    Weight24000
    UPS topologyDouble-conversion (Online)
    Output power capacity1.5 kVA
    Output power1350 W
    Input operation voltage (min)190 V
    Input operation voltage (max)276 V
    Input frequency40 - 70 Hz
    Output frequency50/60 Hz
    Maximum current10 A
    Noise level43 dB
    AC outlet typesC13 coupler, C14 coupler
    Power plugC14 coupler
    AC outlets quantity7 AC outlet(s)
    USB portYes
    Serial interfaceYes
    Serial interface typeRS-232
    Form factorRackmount
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
    Operating temperature (T-T)0 - 40 °C
    Width438 mm
    Depth438 mm
    Height86.5 mm
    Weight18.4 kg
    Description
    Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 438 mm, Depth: 438 mm, Height: 86.5 mm
    Description
    1350 Watts | 1500 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13
    manufacturerEaton
    product groupUSV
    product typeUPS Online
    colourblack
    weight18.4 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)18.4 kg
    gross weight18.4
    current catalog edition24.1
    current catalog page10.11
    height0.230
    width0.551
    depth0.571
    operating temperature min.-20 °C
    operating temperature max.40 °C
    dimensions (hxwxd)86.5 x 438 x 438 mm 2HE
    interfaceRS232, USB, MS-Slot, EPO
    mounting formRack
    rs-232 interfaceja
    usb 2.0 interfaceja
    conformityIEC/EN 62040-1, UL 1778, CSA 22.2; IEC/EN 62040 -2 , FCC ...
    acoustic level<43dB
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)1500 / 1350
    backup time full/half-load5 / 16 min
    voltage (input)190- 276 V without derating; 120 - 276 V with derating
    voltage (output)200/208/220/230/240V
    frequency40-70Hz, 50/60Hz autoselection, frequency converter mode
    connector type (input)C14
    connector type (output)(6) C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter cardMS-Slot
    additional over current protectornein
    activity displaymultilinugual
    incl.management softwarefür die gängigen OS
    internal coolingAktiv, Lüfter
    ambient temperatureElektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach ...
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    activity led4
    delay expansion unit4
    max. quantity of delay expansion units4
    Description
    DescriptionEATON 9SX 1500i Rack2U
    VatTypeVAT
    Weight24.060000000
    Height230.000000000
    Width550.000000000
    Length570.000000000
    Description
    EATON 9SX 1500i Rack2U
    Gross depth (mm)548.00
    Gross height (mm)240.00
    Gross weight20.40
    Gross width (mm)570.00
    Net weight18.40
    Packing quantity1.00
    Paper/Pasteboard1800.00
    Plastic (No PET)200.00
    Tare weight (kg)2.00
    TI weight (kg)16.00
    Volume (m3)0.07
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product name 9SX 1500i Rack2U
    UPS topologyOn line
    Capacity1350
    Capacity1500
    Input operation voltage (max)240
    Form factor Rack
    Producer product familyUPS
    Colour of productBlack
    Certification IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC
    Palette Qty12
    ProducerEaton
    Dimensions (WxDxH)438 x 438 x 86.5
    Output operation voltage (min)200
    Warranty24

    Products specifications
    UPS voltage regulators 1500
    Socket (RS232) yes
    Socket (IEC320) yes
    Socket (USB) yes
    Tips Online
    Output power 1350
    Tips Double Conversion Online
    Apparent power1500 VA
    Active power1350 (Watt)
    UPS Architectureon-line
    Number of phases input1 (230V)
    No. of batteries1
    Voltage240 (Volt)
    Chassis typeRack
    Input power portsIEC-C14
    Output power ports1 x IEC-C13
    Output power ports2 x Terminal
    I/O connectors1 x USB 2.0
    I/O connectors1 x RS-232 (COM)
    Environment requirements

    Temperatura robocza: 0 - 40° C
    ColorBlack
    Dimensions

    86,5 x 438 x 438 mm
    Other features
    • Gniazdo dla kart Network-M2, Network-MS, ModBus-MS lub Relay-MS
    • Wielojęzyczny graficzny wyświetlacz LCD
    Video
    Video
    DesignationCE+WEEE
    Width555
    Height580
    Depth235
    Weight24000
    UPS topologyDouble-conversion (Online)
    Output power capacity1.5 kVA
    Output power1350 W
    Input operation voltage (min)190 V
    Input operation voltage (max)276 V
    Input frequency40 - 70 Hz
    Output frequency50/60 Hz
    Maximum current10 A
    Noise level43 dB
    AC outlet typesC13 coupler, C14 coupler
    Power plugC14 coupler
    AC outlets quantity7 AC outlet(s)
    USB portYes
    Serial interfaceYes
    Serial interface typeRS-232
    Form factorRackmount
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
    Operating temperature (T-T)0 - 40 °C
    Width438 mm
    Depth438 mm
    Height86.5 mm
    Weight18.4 kg
    Description
    Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 438 mm, Depth: 438 mm, Height: 86.5 mm
    Description
    1350 Watts | 1500 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13
    manufacturerEaton
    product groupUSV
    product typeUPS Online
    colourblack
    weight18.4 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)18.4 kg
    gross weight18.4
    current catalog edition24.1
    current catalog page10.11
    height0.230
    width0.551
    depth0.571
    operating temperature min.-20 °C
    operating temperature max.40 °C
    dimensions (hxwxd)86.5 x 438 x 438 mm 2HE
    interfaceRS232, USB, MS-Slot, EPO
    mounting formRack
    rs-232 interfaceja
    usb 2.0 interfaceja
    conformityIEC/EN 62040-1, UL 1778, CSA 22.2; IEC/EN 62040 -2 , FCC ...
    acoustic level<43dB
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)1500 / 1350
    backup time full/half-load5 / 16 min
    voltage (input)190- 276 V without derating; 120 - 276 V with derating
    voltage (output)200/208/220/230/240V
    frequency40-70Hz, 50/60Hz autoselection, frequency converter mode
    connector type (input)C14
    connector type (output)(6) C13
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter cardMS-Slot
    additional over current protectornein
    activity displaymultilinugual
    incl.management softwarefür die gängigen OS
    internal coolingAktiv, Lüfter
    ambient temperatureElektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach ...
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    activity led4
    delay expansion unit4
    max. quantity of delay expansion units4
    Description
    DescriptionEATON 9SX 1500i Rack2U
    VatTypeVAT
    Weight24.060000000
    Height230.000000000
    Width550.000000000
    Length570.000000000
    Description
    EATON 9SX 1500i Rack2U
    Gross depth (mm)548.00
    Gross height (mm)240.00
    Gross weight20.40
    Gross width (mm)570.00
    Net weight18.40
    Packing quantity1.00
    Paper/Pasteboard1800.00
    Plastic (No PET)200.00
    Tare weight (kg)2.00
    TI weight (kg)16.00
    Volume (m3)0.07
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product name 9SX 1500i Rack2U
    UPS topologyOn line
    Capacity1350
    Capacity1500
    Input operation voltage (max)240
    Form factor Rack
    Producer product familyUPS
    Colour of productBlack
    Certification IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC
    Palette Qty12
    ProducerEaton
    Dimensions (WxDxH)438 x 438 x 86.5
    Output operation voltage (min)200
    Warranty24
