    Manufacturer: LEVELONE

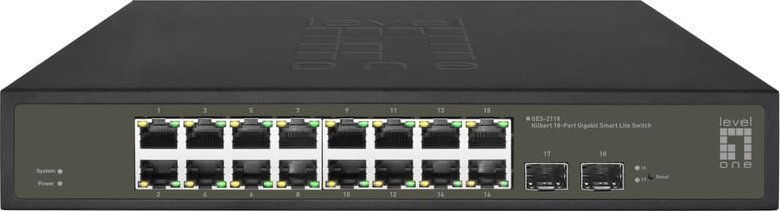

    LevelOne GES-2118 Hilbert 18-Port Gigabit Smart Switch


    €156.92 incl tax

    SKU: ST07370405
    Manufacturer part number: GES-2118
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    RJ-45 port 18
    RJ-45 port 8
    Properties RJ-45
    WRL stadarti 802.11b
    power over ethernet (poe)No
    weight1.08 kg
    height44.5 mm
    width271 mm
    depth181.5 mm
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity16
    sfp module slots quantity2
    networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity36 Gbit/s
    packet buffer memory4.1 MB
    multicast supportYes
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    power consumption (max)15 W
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation51.18 BTU/h
    package width350 mm
    package depth267 mm
    package height89 mm
    package weight1.68 kg
    certificationUKCA, FCC Class A
    package typeBox
    compliance certificatesCE, RoHS
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    cables includedAC
    master (outer) case gross weight17.8 kg
    master (outer) case width480 mm
    master (outer) case length370 mm
    master (outer) case height560 mm
    products per master (outer) case10 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    master (outer) cases per pallet (air)12 pc(s)
    pallet height (air)182.4 cm
    sustainability complianceYes
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    rack mount kitYes
    surge protectionYes
    fanlessYes
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    number of vlans32
    virtual lan featuresTagged VLAN
    number of queues4
    surge protection voltage8 kV
    master (outer) case net weight1 kg
    Description
    LevelOne GES-2118. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 36 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Statņa montāža

    Products specifications
    RJ-45 port 18
    RJ-45 port 8
    Properties RJ-45
    WRL stadarti 802.11b
    power over ethernet (poe)No
    weight1.08 kg
    height44.5 mm
    width271 mm
    depth181.5 mm
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity16
    sfp module slots quantity2
    networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    port mirroringYes
    link aggregationYes
    mac address table8000 entries
    switching capacity36 Gbit/s
    packet buffer memory4.1 MB
    multicast supportYes
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    noise level0 dB
    mean time between failures (mtbf)43800 h
    power consumption (max)15 W
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    heat dissipation51.18 BTU/h
    package width350 mm
    package depth267 mm
    package height89 mm
    package weight1.68 kg
    certificationUKCA, FCC Class A
    package typeBox
    compliance certificatesCE, RoHS
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    cables includedAC
    master (outer) case gross weight17.8 kg
    master (outer) case width480 mm
    master (outer) case length370 mm
    master (outer) case height560 mm
    products per master (outer) case10 pc(s)
    pallet gross width120 cm
    pallet gross length80 cm
    jumbo frames supportYes
    master (outer) cases per pallet (air)12 pc(s)
    pallet height (air)182.4 cm
    sustainability complianceYes
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    rack mount kitYes
    surge protectionYes
    fanlessYes
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    vlan supportYes
    flash memory2 MB
    broadcast storm controlYes
    rate limitingYes
    number of vlans32
    virtual lan featuresTagged VLAN
    number of queues4
    surge protection voltage8 kV
    master (outer) case net weight1 kg
    Description
    LevelOne GES-2118. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 36 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Statņa montāža
