Manufacturer: LEVELONE

Level One GEU-0523 5-Port Gigabit Switch

€23.78 incl tax

SKU: ST07363913

Manufacturer part number: GEU-0523

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
EU	10 - 20 days	1	€23.78 incl tax
LV	7 - 12 days	458	€31.84 incl tax
PL	8 - 15 days	39	€34.23 incl tax

Qty:

Specifications

Products specifications

1
Details 2

RJ-45 port	1
RJ-45 port	12
Properties	RJ-45
RJ-45 port	10
RJ-45 port	5

Status

10 dienas

Description

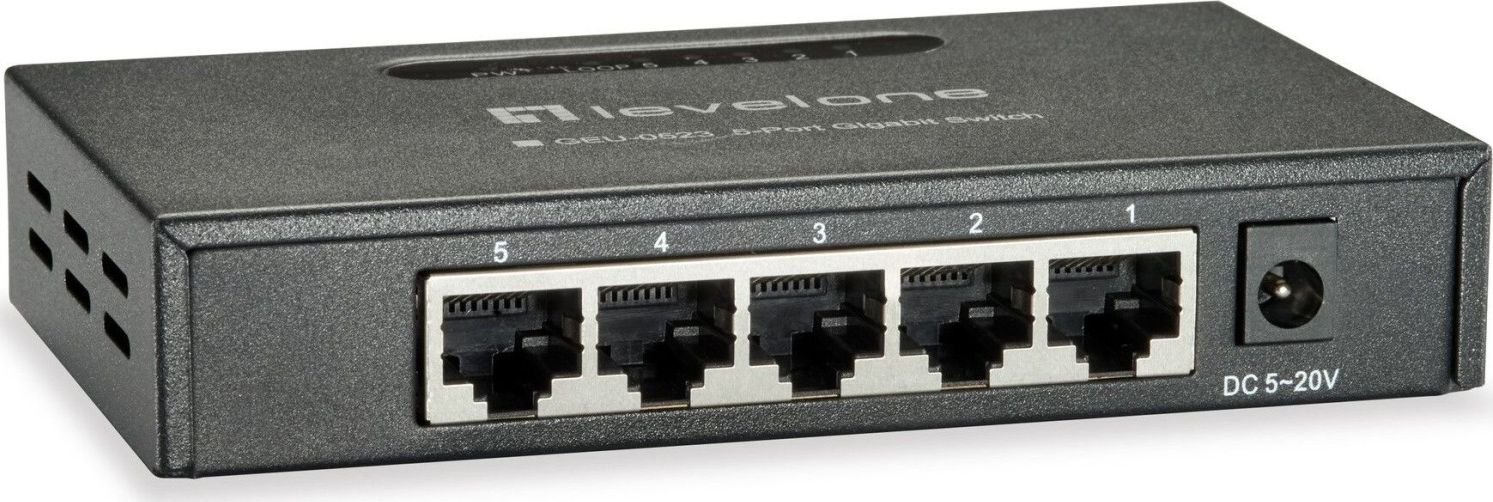

The LevelOne GEU-0523 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch. The GEU-0523 is the ideal and cost-effective choice for expanding your network.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.3az
10G support	N
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Y
Jumbo frames	9000
Transmission method	Store- froward
Packet forwarding rate (1 Gbps)	1488000 pps
Rack mounting	N
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Country of origin	China
Built-in processor	Y
Processor model	MT7530D
Flash memory	1024 MB
Power supply included	N
DC input voltage	5 V
Input current	0.5 A
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	124 mm
Depth	72 mm
Height	24 mm
Weight	174 g
Quick start guide	Y
Manual	Y
AC adapter included	Y
Package width	138 mm
Package depth	80 mm
Package height	80 mm
Package weight	290 g
Harmonized System (HS) code	85176990

Products specifications

1
Details 2

RJ-45 port	1
RJ-45 port	12
Properties	RJ-45
RJ-45 port	10
RJ-45 port	5

Status

10 dienas

Description

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.3az
10G support	N
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Y
Jumbo frames	9000
Transmission method	Store- froward
Packet forwarding rate (1 Gbps)	1488000 pps
Rack mounting	N
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Country of origin	China
Built-in processor	Y
Processor model	MT7530D
Flash memory	1024 MB
Power supply included	N
DC input voltage	5 V
Input current	0.5 A
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	124 mm
Depth	72 mm
Height	24 mm
Weight	174 g
Quick start guide	Y
Manual	Y
AC adapter included	Y
Package width	138 mm
Package depth	80 mm
Package height	80 mm
Package weight	290 g
Harmonized System (HS) code	85176990
