    Manufacturer: LEVELONE

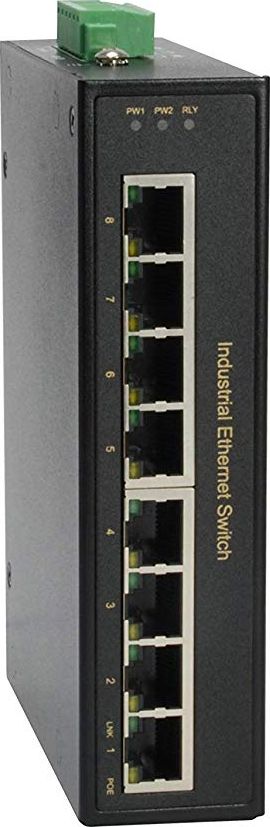

    LevelOne IFP-0801 Industrial 8 Port Fast Ethernet Switch


    €265.52 incl tax

    SKU: ST07370312
    Manufacturer part number: IFP-0801
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    Properties RJ-45
    auto mdi/mdi-xYes
    power over ethernet (poe)Yes
    plug and playYes
    weight525 g
    height142 mm
    width105 mm
    depth36.2 mm
    full duplexYes
    auto-negotiationYes
    wall mountableYes
    country of originTaiwan
    basic switching rj-45 ethernet ports quantity12
    basic switching rj-45 ethernet ports typeFast Ethernet (10/100)
    networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX
    flow control supportYes
    mac address table1000 entries
    switching capacity1.6 Gbit/s
    store-and-forwardYes
    packet buffer memory1 MB
    product colourBlack
    led indicatorsLink, Power, Status
    mean time between failures (mtbf)510304 h
    power over ethernet plus (poe+) ports quantity4
    total power over ethernet (poe) budget126 W
    operating temperature (t-t)-40 - 75 °C
    operating relative humidity (h-h)5 - 95%
    package width165 mm
    package depth65 mm
    package height215 mm
    package weight730 g
    certificationEMI: FCC Part 15 Subpart B Class A CE EN 55022 Class A EMC: EN55022, EN55024 EN50155/EN60068-2-6 EN50155/EN60068-2-27 EN50155/EN60068-2-32
    harmonized system (hs) code85176990
    package typeBox
    manualYes
    master (outer) case gross weight12.6 kg
    master (outer) case width350 mm
    master (outer) case length240 mm
    master (outer) case height570 mm
    products per master (outer) case16 pc(s)
    power consumption (typical)5.76 W
    safetyIEC EN60950-1
    redundant power supply (rps) supportYes
    terminal block portYes
    wall mounting kitYes
    din rail mountingYes
    power over ethernet (poe) power per port30 W
    power over ethernet (poe) voltage range44 - 56 V
    terminal block includedYes
    din rail includedYes
    Description
    LevelOne IFP-0801. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 12. Pilns duplekss. Adrešu tabulas izmērs: 1000 ieraksti, Komutācijas ietilpība: 1,6 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Pie sienas piestiprināms

    Products specifications
    Properties RJ-45
    auto mdi/mdi-xYes
    power over ethernet (poe)Yes
    plug and playYes
    weight525 g
    height142 mm
    width105 mm
    depth36.2 mm
    full duplexYes
    auto-negotiationYes
    wall mountableYes
    country of originTaiwan
    basic switching rj-45 ethernet ports quantity12
    basic switching rj-45 ethernet ports typeFast Ethernet (10/100)
    networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX
    flow control supportYes
    mac address table1000 entries
    switching capacity1.6 Gbit/s
    store-and-forwardYes
    packet buffer memory1 MB
    product colourBlack
    led indicatorsLink, Power, Status
    mean time between failures (mtbf)510304 h
    power over ethernet plus (poe+) ports quantity4
    total power over ethernet (poe) budget126 W
    operating temperature (t-t)-40 - 75 °C
    operating relative humidity (h-h)5 - 95%
    package width165 mm
    package depth65 mm
    package height215 mm
    package weight730 g
    certificationEMI: FCC Part 15 Subpart B Class A CE EN 55022 Class A EMC: EN55022, EN55024 EN50155/EN60068-2-6 EN50155/EN60068-2-27 EN50155/EN60068-2-32
    harmonized system (hs) code85176990
    package typeBox
    manualYes
    master (outer) case gross weight12.6 kg
    master (outer) case width350 mm
    master (outer) case length240 mm
    master (outer) case height570 mm
    products per master (outer) case16 pc(s)
    power consumption (typical)5.76 W
    safetyIEC EN60950-1
    redundant power supply (rps) supportYes
    terminal block portYes
    wall mounting kitYes
    din rail mountingYes
    power over ethernet (poe) power per port30 W
    power over ethernet (poe) voltage range44 - 56 V
    terminal block includedYes
    din rail includedYes
    Description
    LevelOne IFP-0801. Basic switching RJ-45 Ethernet portu veids: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet portu daudzums: 12. Pilns duplekss. Adrešu tabulas izmērs: 1000 ieraksti, Komutācijas ietilpība: 1,6 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Pie sienas piestiprināms
