Manufacturer: LEVELONE

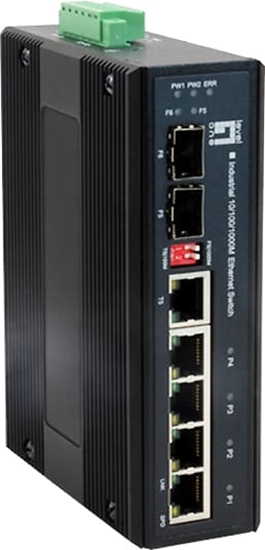

LevelOne IES-0600 Industrial 6-Port Gigabit Switch

€240.52 incl tax

SKU: ST04501625

Manufacturer part number: IES-0600

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LV	7 - 12 days	17	€240.52 incl tax

Qty:

Specifications

Products specifications

1
Details 2

RJ-45 port	6
RJ-45 port	1
RJ-45 port	10
Properties	RJ-45
WRL stadarti	802.11b
RJ-45 port	12

Status

10 dienas

Description

LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. - 4 10/100/1000Base-T ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	12 Gbit/s
Store-and-forward	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	1 MB
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
International Protection (IP) code	IP30
Wall mountable	Y
DIN rail mounting	Y
Country of origin	Taiwan
Certification	FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
Input voltage	5 - 56 V
Power protection features	Overload, Reverse polarity
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	40 mm
Depth	105 mm
Height	38 mm
Weight	720 g
Quick start guide	Y
Package type	Box
Package width	215 mm
Package depth	165 mm
Package height	65 mm
Package weight	120 g
Harmonized System (HS) code	85176990
Terminal block port	Y

Products specifications

1
Details 2

RJ-45 port	6
RJ-45 port	1
RJ-45 port	10
Properties	RJ-45
WRL stadarti	802.11b
RJ-45 port	12

Status

10 dienas

Description

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	N
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	12 Gbit/s
Store-and-forward	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	1 MB
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
International Protection (IP) code	IP30
Wall mountable	Y
DIN rail mounting	Y
Country of origin	Taiwan
Certification	FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
Input voltage	5 - 56 V
Power protection features	Overload, Reverse polarity
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	40 mm
Depth	105 mm
Height	38 mm
Weight	720 g
Quick start guide	Y
Package type	Box
Package width	215 mm
Package depth	165 mm
Package height	65 mm
Package weight	120 g
Harmonized System (HS) code	85176990
Terminal block port	Y
