Manufacturer: LEVELONE

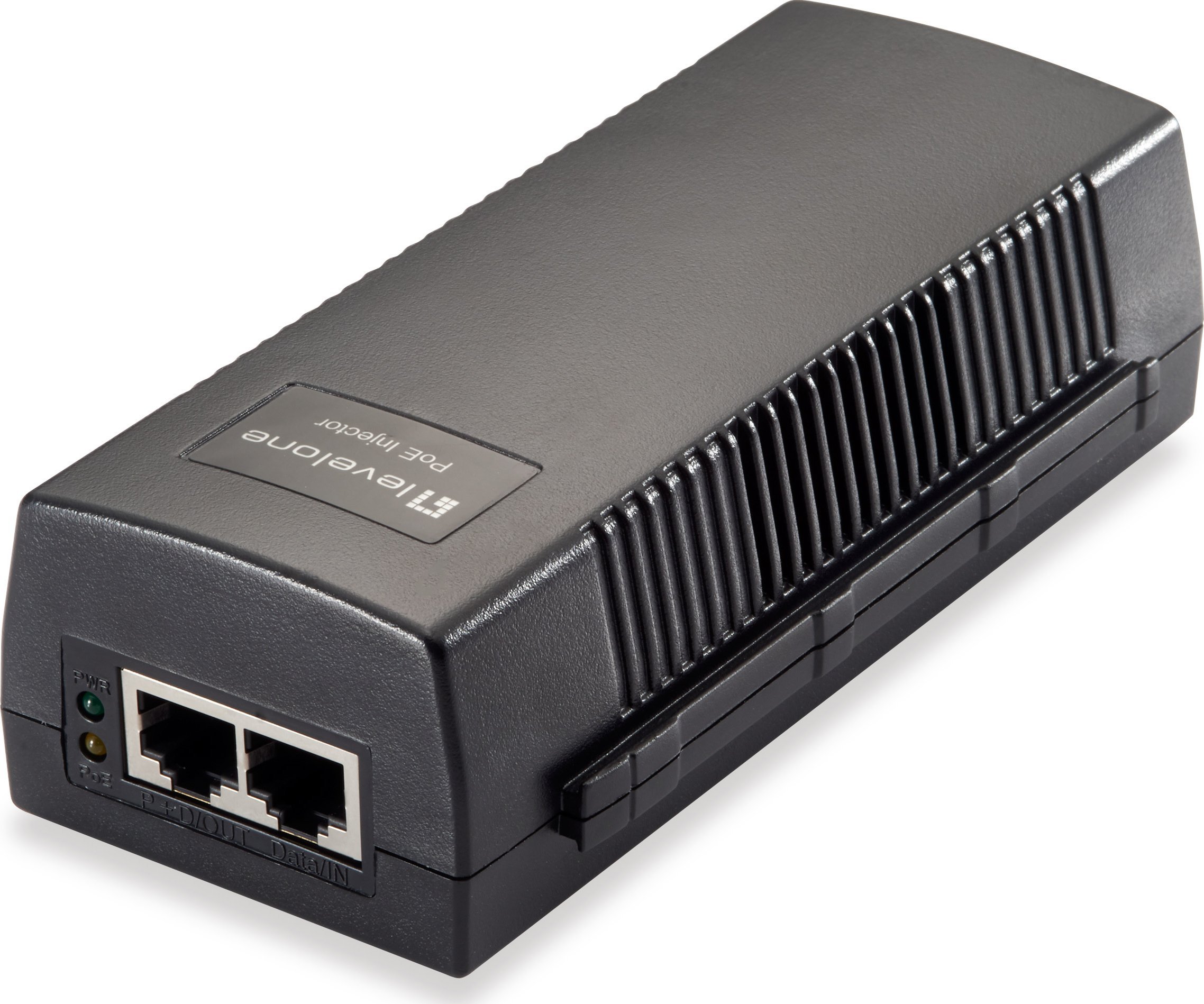

LevelOne POI-2012 PoE-Injektor, PSE 15,4W

€28.13 incl tax

SKU: ST06451880

Manufacturer part number: POI-2012

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
LV	7 - 12 days	413	€28.13 incl tax
PL	8 - 15 days	413	€52.82 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Properties	RJ-45

Status

10 dienas

Description

The LevelOne POI-2012 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Product colour	Black
Wall mountable	Y
Plug and Play	Y
Surge protection	Y
Maximum operating distance	100 m
LED indicators	PoE, Power
Pin assignment & polarity	4/5 (+), 7/8 (-)
Certification	FCC Part 15, CE
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	52 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.8 A
Output current	0.3 A
Power consumption (max)	15.4 W
Power over Ethernet (PoE) power per port	15.4 W
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Width	143 mm
Depth	51 mm
Height	38 mm
Weight	350 g
Package width	210 mm
Package depth	125 mm
Package height	55 mm
Package weight	400 g
Package type	Box
Number of products included	1 pc(s)
Quick installation guide	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85044095

Products specifications

1
Details 2

Properties	RJ-45

Status

10 dienas

Description

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Product colour	Black
Wall mountable	Y
Plug and Play	Y
Surge protection	Y
Maximum operating distance	100 m
LED indicators	PoE, Power
Pin assignment & polarity	4/5 (+), 7/8 (-)
Certification	FCC Part 15, CE
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) voltage	52 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.8 A
Output current	0.3 A
Power consumption (max)	15.4 W
Power over Ethernet (PoE) power per port	15.4 W
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Width	143 mm
Depth	51 mm
Height	38 mm
Weight	350 g
Package width	210 mm
Package depth	125 mm
Package height	55 mm
Package weight	400 g
Package type	Box
Number of products included	1 pc(s)
Quick installation guide	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85044095
