    Manufacturer: D-LINK

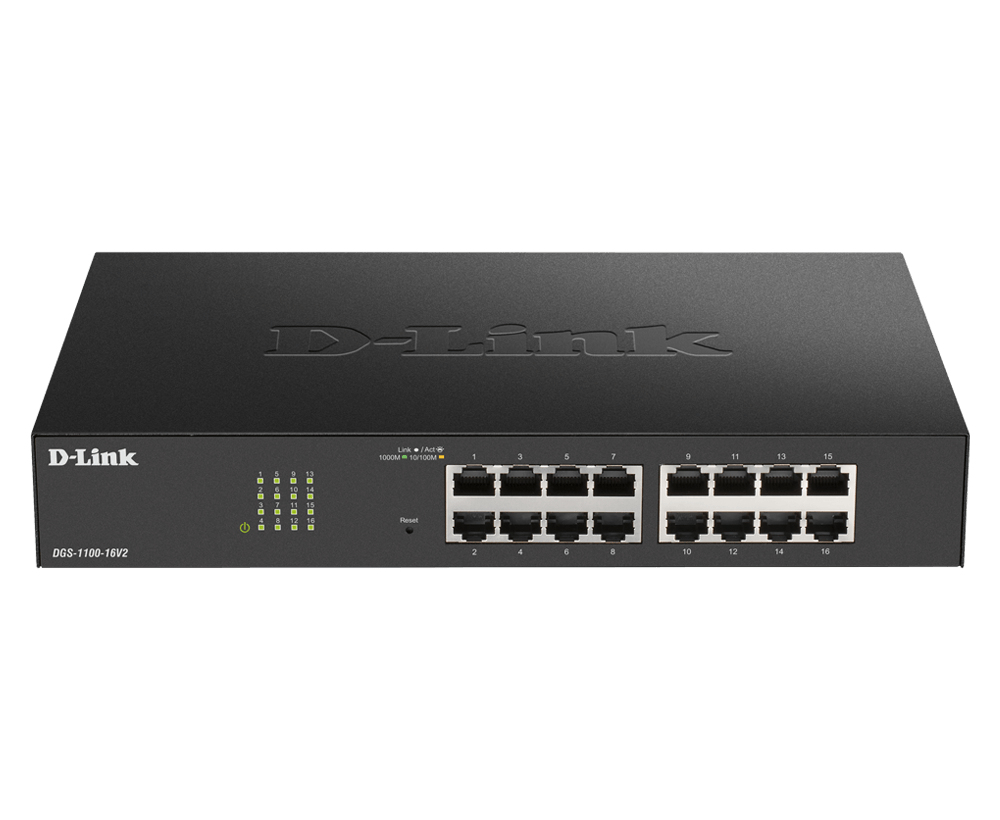

    D-Link DGS-1100-16V2/E 16 Port Layer2 Smart Gb Sw


    €131.54 incl tax

    SKU: ST06496493
    Manufacturer part number: DGS-1100-16V2/E
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    EU
    LV

    Products specifications
    Properties RJ-45
    RJ-45 port 16
    WRL stadarti 802.11b
    Switch typeManaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Web-based managementYes
    System event logYes
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
    Port mirroringYes
    Full duplexYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Auto MDI/MDI-XYes
    Spanning tree protocolYes
    Head-of-line (HOL) blockingYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Auto-negotiationYes
    VLAN supportYes
    Virtual LAN featuresPort-based VLAN, Voice VLAN
    Number of VLANs128
    MAC address table8000 entries
    Switching capacity32 Gbit/s
    Forwarding rate23.81 Mpps
    Store-and-forwardYes
    Number of queues4
    Jumbo frames supportYes
    Jumbo frames9216
    Packet buffer memory4.1 MB
    DHCP featuresDHCP client
    IGMP snoopingYes
    Security algorithmsSNMP, SSL/TLS
    Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
    Built-in processorYes
    Processor frequency125 MHz
    Memory typeDRAM
    Flash memory16 MB
    FanlessYes
    Mean time between failures (MTBF)710519 h
    AC input voltage100 - 240 V
    Power consumption (max)10.1 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)-5 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 2000 m
    Heat dissipation34.46 BTU/h
    Width280 mm
    Depth180 mm
    Height44 mm
    Weight1.27 kg
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1100-16V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    manufacturerD-LINK
    product groupNetzwerk-Switches
    product typeGigabit Ethernet Switch
    colourblack
    weight1.27 kg
    height of packaging (single piece)110 mm
    width of packaging (single piece)330 mm
    depth of packaging (single piece)370 mm
    package weight (single piece)2.048 kg
    gross weight2.048
    current catalog edition24.1
    current catalog page1.11
    scope of deliverySwitch, Handbuch
    height44 mm
    width280 mm
    depth180 mm
    dimensions (hxwxd)280 x 180 x 44 mm
    quantity of ports16
    lan (mbps)10/100/1000
    full duplexYes
    auto-negotiationYes
    mains connectionKaltgeräte-Anschluss
    switch typeManaged
    network standardGigabit Ethernet
    gigabit ethernet ports rj-4516
    power supply unit (internal/external)intern
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table8000 entries
    switching capacity32 Gbit/s
    forwarding rate23.81 Mpps
    store-and-forwardYes
    packet buffer memory4.1 MB
    multicast supportYes
    rack mountingYes
    product colourBlack
    led indicatorsYes
    noise level0 dB
    mean time between failures (mtbf)710519 h
    power consumption (max)10.1 W
    operating temperature (t-t)-5 - 50 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)0 - 95%
    storage relative humidity (h-h)0 - 95%
    heat dissipation34.46 BTU/h
    certificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50/60 Hz
    ethernet lan data rates10,100,1000 Mbit/s
    jumbo frames supportYes
    security algorithmsSNMP, SSL/TLS
    operating altitude0 - 2000 m
    jumbo frames9216
    igmp snoopingYes
    built-in processorYes
    processor frequency125 MHz
    spanning tree protocolYes
    fanlessYes
    vlan supportYes
    system event logYes
    flash memory16 MB
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP client
    number of vlans128
    virtual lan featuresPort-based VLAN, Voice VLAN
    number of queues4
    head-of-line (hol) blockingYes
    memory typeDRAM
    queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
    Description
    D-Link DGS-1100-16V2. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 32 Gbit/s. Tīkla standarts: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Statņa montāža
    Gross depth (mm)380.00
    Gross height (mm)60.00
    Gross weight1.71
    Gross width (mm)280.00
    Net weight1.21
    Packing quantity1.00
    Paper/Pasteboard400.00
    Plastic (No PET)100.00
    Tare weight (kg)0.50
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Switch typeManaged
    Producer product nameDGS-1100-16V2
    Form factorDesktop
    Producer product familySmart Managed Switch
    Predominant port type10/100/1000 Mbps (RJ-45)
    Power supply type100 to 240 V AC, 50 to 60 Hz Internal
    Tare other2.00
    Gross depth master carton280.00
    Gross width master carton360.00
    Gross height master carton470.00
    Net weight master carton6.00
    Tare weight master carton1.94
    POENo
    Ethernet LAN (RJ-45) ports16
    Colour of productBlack
    Switch layerL2
    Palette Qty271
    ProducerD-Link
    Warranty60

    Products specifications
    Properties RJ-45
    RJ-45 port 16
    WRL stadarti 802.11b
    Switch typeManaged
    Switch layerL2
    Quality of Service (QoS) supportYes
    Web-based managementYes
    System event logYes
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportNo
    Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
    Port mirroringYes
    Full duplexYes
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Auto MDI/MDI-XYes
    Spanning tree protocolYes
    Head-of-line (HOL) blockingYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Auto-negotiationYes
    VLAN supportYes
    Virtual LAN featuresPort-based VLAN, Voice VLAN
    Number of VLANs128
    MAC address table8000 entries
    Switching capacity32 Gbit/s
    Forwarding rate23.81 Mpps
    Store-and-forwardYes
    Number of queues4
    Jumbo frames supportYes
    Jumbo frames9216
    Packet buffer memory4.1 MB
    DHCP featuresDHCP client
    IGMP snoopingYes
    Security algorithmsSNMP, SSL/TLS
    Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
    Multicast supportYes
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
    Built-in processorYes
    Processor frequency125 MHz
    Memory typeDRAM
    Flash memory16 MB
    FanlessYes
    Mean time between failures (MTBF)710519 h
    AC input voltage100 - 240 V
    Power consumption (max)10.1 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)-5 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 2000 m
    Heat dissipation34.46 BTU/h
    Width280 mm
    Depth180 mm
    Height44 mm
    Weight1.27 kg
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1100-16V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    manufacturerD-LINK
    product groupNetzwerk-Switches
    product typeGigabit Ethernet Switch
    colourblack
    weight1.27 kg
    height of packaging (single piece)110 mm
    width of packaging (single piece)330 mm
    depth of packaging (single piece)370 mm
    package weight (single piece)2.048 kg
    gross weight2.048
    current catalog edition24.1
    current catalog page1.11
    scope of deliverySwitch, Handbuch
    height44 mm
    width280 mm
    depth180 mm
    dimensions (hxwxd)280 x 180 x 44 mm
    quantity of ports16
    lan (mbps)10/100/1000
    full duplexYes
    auto-negotiationYes
    mains connectionKaltgeräte-Anschluss
    switch typeManaged
    network standardGigabit Ethernet
    gigabit ethernet ports rj-4516
    power supply unit (internal/external)intern
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity16
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table8000 entries
    switching capacity32 Gbit/s
    forwarding rate23.81 Mpps
    store-and-forwardYes
    packet buffer memory4.1 MB
    multicast supportYes
    rack mountingYes
    product colourBlack
    led indicatorsYes
    noise level0 dB
    mean time between failures (mtbf)710519 h
    power consumption (max)10.1 W
    operating temperature (t-t)-5 - 50 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)0 - 95%
    storage relative humidity (h-h)0 - 95%
    heat dissipation34.46 BTU/h
    certificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50/60 Hz
    ethernet lan data rates10,100,1000 Mbit/s
    jumbo frames supportYes
    security algorithmsSNMP, SSL/TLS
    operating altitude0 - 2000 m
    jumbo frames9216
    igmp snoopingYes
    built-in processorYes
    processor frequency125 MHz
    spanning tree protocolYes
    fanlessYes
    vlan supportYes
    system event logYes
    flash memory16 MB
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP client
    number of vlans128
    virtual lan featuresPort-based VLAN, Voice VLAN
    number of queues4
    head-of-line (hol) blockingYes
    memory typeDRAM
    queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
    Description
    D-Link DGS-1100-16V2. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 32 Gbit/s. Tīkla standarts: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Statņa montāža
    Gross depth (mm)380.00
    Gross height (mm)60.00
    Gross weight1.71
    Gross width (mm)280.00
    Net weight1.21
    Packing quantity1.00
    Paper/Pasteboard400.00
    Plastic (No PET)100.00
    Tare weight (kg)0.50
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Switch typeManaged
    Producer product nameDGS-1100-16V2
    Form factorDesktop
    Producer product familySmart Managed Switch
    Predominant port type10/100/1000 Mbps (RJ-45)
    Power supply type100 to 240 V AC, 50 to 60 Hz Internal
    Tare other2.00
    Gross depth master carton280.00
    Gross width master carton360.00
    Gross height master carton470.00
    Net weight master carton6.00
    Tare weight master carton1.94
    POENo
    Ethernet LAN (RJ-45) ports16
    Colour of productBlack
    Switch layerL2
    Palette Qty271
    ProducerD-Link
    Warranty60
    Recently viewed products
    Information
    Customer service
    My account
    Contact Us
    • Ogre, Mālkalnes prospekts 5-18, LV-5003
    • (+371) 22111444, (+371) 22500002
    Our Partners
    Copyright © 2025 Tera.lv. All rights reserved.
