Manufacturer: ZYXEL

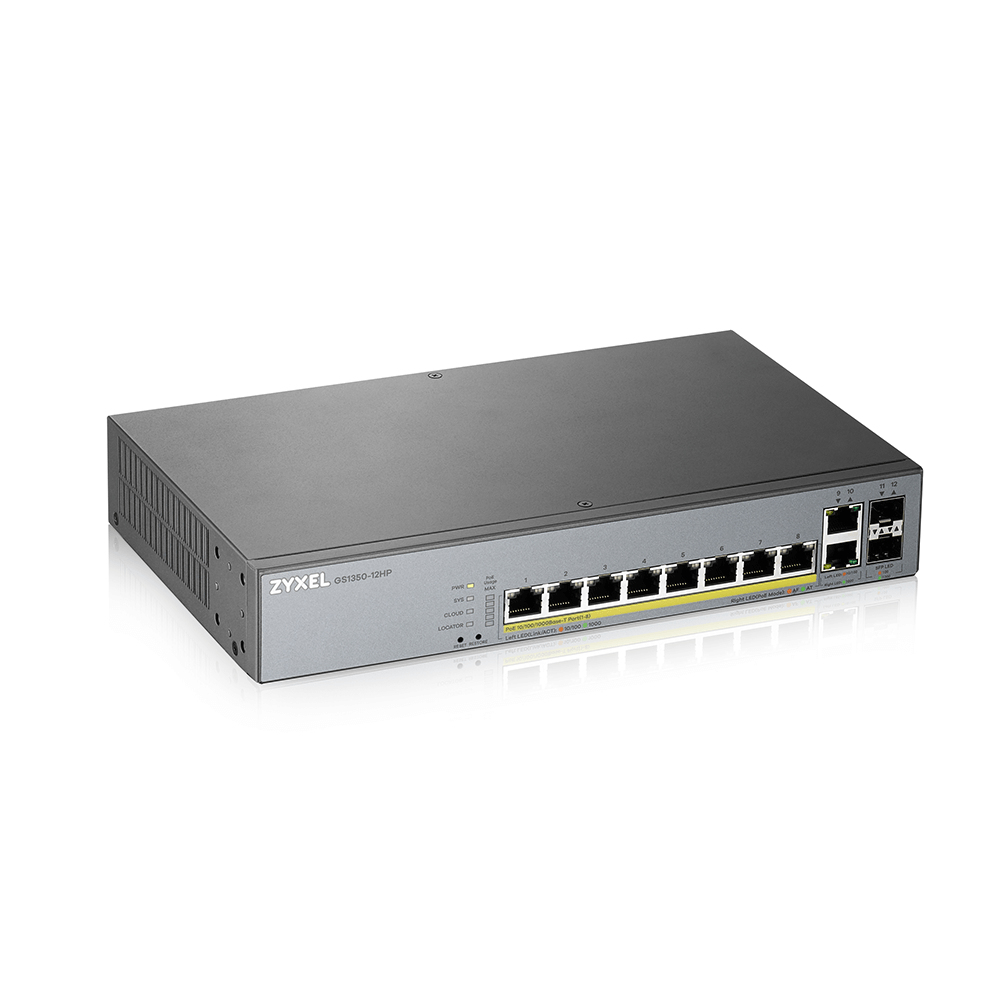

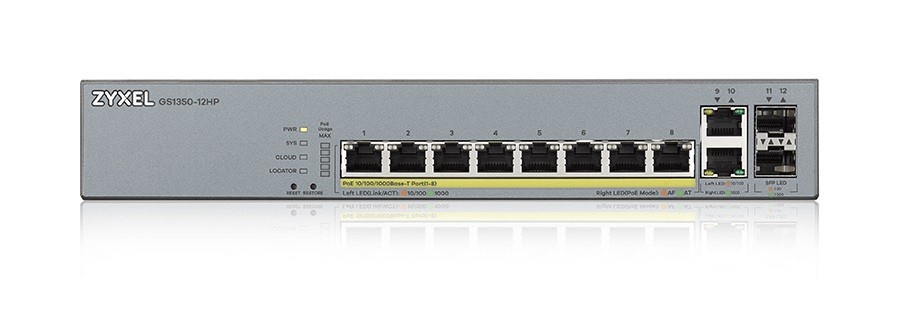

Zyxel GS1350-12HP 12 Port incl. 1 Year Nebula Pro

€258.02 incl tax

SKU: ST04128958

Manufacturer part number: GS1350-12HP-EU0101F

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
EU	10 - 20 days	3	€258.02 incl tax
PL	8 - 15 days	14	€260.08 incl tax
LV	7 - 12 days	8	€299.92 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

RJ-45 port	10
Properties	RJ-45

Switch class	Managed
Application	Home and small office
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	10
Number of 10Gb ports	None
Number of PoE ports (PoE & PoE+)	8
Number of COMBO ports	None
Number of SFP ports	2
Number of SFP+ ports	None
Number of QSFP+ ports	None
Forwarding mode	Store-and-forward
Throughput	24 (Gigabity na sek.)
Forwarding rate	17.8 (Mpps)
Packet buffer	525 (Kilobajt)
MAC address table size	8000
Supported protocols and standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x flow control IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (GS1350-6HP) IEEE 802.3az EEE support/Green Ethernet IEEE 802.1p CoS support
Mean time between failures (MTBF)	1065025 (Hour)
Power supply	100 - 240 V AC, 50/60 Hz
Dimensions	267 x 162 x 44 mm
Weight	1.63 (kilogram)
Designation	CE+WEEE
Width	380
Height	80
Depth	240
Weight	2514
Description
Description	Przełącznik zarządzalny GS1350-12HP CCTV PoE LR 130W

Switch type	Managed
Switch layer	L2
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN
Number of VLANs	256
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.8 Mpps
Packet buffer memory	0.525 MB
DHCP features	DHCP client, DHCP relay, DHCP snooping
IGMP snooping	Yes
IGMP proxy	Yes
Security algorithms	SNMP, SNMPv3, SSH, SSL/TLS
MAC address filtering	Yes
Loop protection	Yes
Queue scheduling algorithms	SPQ, WFQ, Weighted Round Robin (WRR)
Multicast support	Yes
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Noise level	27.3 dB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	1065025.45 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	160.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	546.62 BTU/h
Width	267 mm
Depth	162 mm
Height	44 mm
Weight	1.63 kg
Cables included	AC
Rack mount kit	Yes
Harmonized System (HS) code	85176990
Description
Description	Zyxel GS1350-12HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

power over ethernet (poe)

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

1.63 kg

height

44 mm

width

267 mm

depth

162 mm

switch type

Managed

switch layer

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

sfp module slots quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

port mirroring

Yes

flow control support

Yes

mac address table

8000 entries

switching capacity

24 Gbit/s

forwarding rate

17.8 Mpps

packet buffer memory

0.525 MB

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Grey

led indicators

Yes

noise level

27.3 dB

mean time between failures (mtbf)

1065025.45 h

power consumption (max)

160.3 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

130 W

operating temperature (t-t)

-20 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

5 - 95%

storage relative humidity (h-h)

5 - 95%

heat dissipation

546.62 BTU/h

harmonized system (hs) code

85176990

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

cables included

security algorithms

SNMP, SNMPv3, SSH, SSL/TLS

igmp snooping

Yes

rack mount kit

Yes

spanning tree protocol

Yes

vlan support

Yes

firmware upgradeable

Yes

system event log

Yes

broadcast storm control

Yes

dhcp features

DHCP client, DHCP relay, DHCP snooping

number of vlans

256

fiber ethernet cabling technology

1000BASE-X

virtual lan features

MAC address-based VLAN, Port-based VLAN

loop protection

Yes

mib support

RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113

configuring location settings (cli)

Yes

igmp proxy

Yes

queue scheduling algorithms

SPQ, WFQ, Weighted Round Robin (WRR)

Description

Zyxel GS1350-12HP-EU0101F. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 10. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 24 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Statņa montāža

Products specifications

1
Details 2
Details 3
Details 4

RJ-45 port	10
Properties	RJ-45

Switch class	Managed
Application	Home and small office
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	10
Number of 10Gb ports	None
Number of PoE ports (PoE & PoE+)	8
Number of COMBO ports	None
Number of SFP ports	2
Number of SFP+ ports	None
Number of QSFP+ ports	None
Forwarding mode	Store-and-forward
Throughput	24 (Gigabity na sek.)
Forwarding rate	17.8 (Mpps)
Packet buffer	525 (Kilobajt)
MAC address table size	8000
Supported protocols and standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x flow control IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (GS1350-6HP) IEEE 802.3az EEE support/Green Ethernet IEEE 802.1p CoS support
Mean time between failures (MTBF)	1065025 (Hour)
Power supply	100 - 240 V AC, 50/60 Hz
Dimensions	267 x 162 x 44 mm
Weight	1.63 (kilogram)
Designation	CE+WEEE
Width	380
Height	80
Depth	240
Weight	2514
Description
Description	Przełącznik zarządzalny GS1350-12HP CCTV PoE LR 130W

Switch type	Managed
Switch layer	L2
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN
Number of VLANs	256
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.8 Mpps
Packet buffer memory	0.525 MB
DHCP features	DHCP client, DHCP relay, DHCP snooping
IGMP snooping	Yes
IGMP proxy	Yes
Security algorithms	SNMP, SNMPv3, SSH, SSL/TLS
MAC address filtering	Yes
Loop protection	Yes
Queue scheduling algorithms	SPQ, WFQ, Weighted Round Robin (WRR)
Multicast support	Yes
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Noise level	27.3 dB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	1065025.45 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	160.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	546.62 BTU/h
Width	267 mm
Depth	162 mm
Height	44 mm
Weight	1.63 kg
Cables included	AC
Rack mount kit	Yes
Harmonized System (HS) code	85176990
Description
Description	Zyxel GS1350-12HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

power over ethernet (poe)

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

1.63 kg

height

44 mm

width

267 mm

depth

162 mm

switch type

Managed

switch layer

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

sfp module slots quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

port mirroring

Yes

flow control support

Yes

mac address table

8000 entries

switching capacity

24 Gbit/s

forwarding rate

17.8 Mpps

packet buffer memory

0.525 MB

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Grey

led indicators

Yes

noise level

27.3 dB

mean time between failures (mtbf)

1065025.45 h

power consumption (max)

160.3 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

130 W

operating temperature (t-t)

-20 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

5 - 95%

storage relative humidity (h-h)

5 - 95%

heat dissipation

546.62 BTU/h

harmonized system (hs) code

85176990

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

cables included

security algorithms

SNMP, SNMPv3, SSH, SSL/TLS

igmp snooping

Yes

rack mount kit

Yes

spanning tree protocol

Yes

vlan support

Yes

firmware upgradeable

Yes

system event log

Yes

broadcast storm control

Yes

dhcp features

DHCP client, DHCP relay, DHCP snooping

number of vlans

256

fiber ethernet cabling technology

1000BASE-X

virtual lan features

MAC address-based VLAN, Port-based VLAN

loop protection

Yes

mib support

RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113

configuring location settings (cli)

Yes

igmp proxy

Yes

queue scheduling algorithms

SPQ, WFQ, Weighted Round Robin (WRR)

Description
