    Manufacturer: ZYXEL

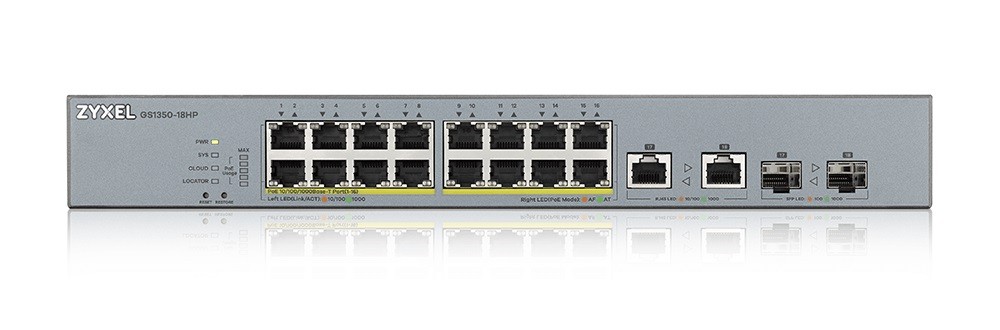

    Zyxel GS1350-18HP 18 Port incl. 1 Year Nebula Pro


    €363.97 incl tax

    SKU: ST04129249
    Manufacturer part number: GS1350-18HP-EU0101F
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    PL

    Products specifications
    RJ-45 port 16
    Properties RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports16
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)16
    Number of COMBO ports2
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Forwarding modeStore-and-forward
    Throughput36 (Gigabity na sek.)
    Forwarding rate26.7 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Supported protocols and standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-Tx Ethernet
    • IEEE 802.3ab 1000Base-T Ethernet
    • IEEE 802.3z 1000Base-X
    • IEEE 802.3x flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3bt (GS1350-6HP)
    • IEEE 802.3az EEE support/Green Ethernet
    • IEEE 802.1p CoS support


    Mean time between failures (MTBF)1699692 (Hour)
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    330 x 230 x 44 mm
    Weight2.42 (kilogram)
    Width390
    Height80
    Depth340
    Weight3377
    Description

    Przełącznik zarządzalny GS1350-18HP CCTV PoE LR 250W
    Switch typeManaged
    Switch layerL2
    Web-based managementY
    Configuring Location Settings (CLI)Y
    System event logY
    MIB supportRFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Combo SFP ports quantity2
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportN
    Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroringY
    Flow control supportY
    Broadcast storm controlY
    Rate limitingY
    Spanning tree protocolY
    VLAN supportY
    Virtual LAN featuresMAC address-based VLAN, Port-based VLAN
    Number of VLANs256
    Fiber ethernet cabling technology1000BASE-X
    MAC address table8000 entries
    Switching capacity36 Gbit/s
    Forwarding rate26.7 Mpps
    Packet buffer memory0.525 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping
    IGMP snoopingY
    IGMP proxyY
    Security algorithmsSNMP, SNMPv3, SSH, SSL/TLS
    MAC address filteringY
    Loop protectionY
    Queue scheduling algorithmsSPQ, WFQ, Weighted Round Robin (WRR)
    Multicast supportY
    Rack mountingY
    Product colourGrey
    LED indicatorsY
    Electromagnetic compatibilityCE, FCC, C-Tick, A; BSMI CNS13438
    Noise level39 dB
    Firmware upgradeableY
    Mean time between failures (MTBF)1699692.18 h
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)300.9 W
    Power over Ethernet (PoE)Y
    Power over Ethernet (PoE) ports quantity16
    Total Power over Ethernet (PoE) budget250 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation1026.07 BTU/h
    Width330 mm
    Depth230 mm
    Height44 mm
    Weight2.42 kg
    Cables includedAC
    Rack mount kitY
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1350-18HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications New outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch. Specialized PoE software features for surveillance Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations. Unique hardware, robust design Stabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system. Selected power supply 2X Surge and ESD protection. Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply. Intelligent System Monitor Keeps the system operational from anomalies. Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

    Switch type Managed
    Switch layer L2
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    MIB support RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Combo SFP ports quantity 2
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features MAC address-based VLAN, Port-based VLAN
    Number of VLANs 256
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 36 Gbit/s
    Forwarding rate 26.7 Mpps
    Packet buffer memory 0.525 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping
    IGMP snooping Y
    IGMP proxy Y
    Security algorithms SNMP, SNMPv3, SSH, SSL/TLS
    MAC address filtering Y
    Loop protection Y
    Queue scheduling algorithms SPQ, WFQ, Weighted Round Robin (WRR)
    Multicast support Y
    Rack mounting Y
    Product colour Grey
    LED indicators Y
    Electromagnetic compatibility CE, FCC, C-Tick, A; BSMI CNS13438
    Noise level 39 dB
    Firmware upgradeable Y
    Mean time between failures (MTBF) 1699692.18 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 300.9 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 16
    Total Power over Ethernet (PoE) budget 250 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 1026.07 BTU/h
    Width 330 mm
    Depth 230 mm
    Height 44 mm
    Weight 2.42 kg
    Cables included AC
    Rack mount kit Y
    Harmonized System (HS) code 85176990

    Products specifications
    RJ-45 port 16
    Properties RJ-45
    Switch classManaged
    ApplicationMedium and large companies
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports16
    Number of 10Gb portsNone
    Number of PoE ports (PoE & PoE+)16
    Number of COMBO ports2
    Number of SFP portsNone
    Number of SFP+ portsNone
    Number of QSFP+ portsNone
    Forwarding modeStore-and-forward
    Throughput36 (Gigabity na sek.)
    Forwarding rate26.7 (Mpps)
    Packet buffer525 (Kilobajt)
    MAC address table size8000
    Supported protocols and standards
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-Tx Ethernet
    • IEEE 802.3ab 1000Base-T Ethernet
    • IEEE 802.3z 1000Base-X
    • IEEE 802.3x flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE plus
    • IEEE 802.3bt (GS1350-6HP)
    • IEEE 802.3az EEE support/Green Ethernet
    • IEEE 802.1p CoS support


    Mean time between failures (MTBF)1699692 (Hour)
    Power supply

    100 - 240 V AC, 50/60 Hz
    Dimensions

    330 x 230 x 44 mm
    Weight2.42 (kilogram)
    Width390
    Height80
    Depth340
    Weight3377
    Description

    Przełącznik zarządzalny GS1350-18HP CCTV PoE LR 250W
    Switch typeManaged
    Switch layerL2
    Web-based managementY
    Configuring Location Settings (CLI)Y
    System event logY
    MIB supportRFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity16
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    Combo SFP ports quantity2
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportN
    Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroringY
    Flow control supportY
    Broadcast storm controlY
    Rate limitingY
    Spanning tree protocolY
    VLAN supportY
    Virtual LAN featuresMAC address-based VLAN, Port-based VLAN
    Number of VLANs256
    Fiber ethernet cabling technology1000BASE-X
    MAC address table8000 entries
    Switching capacity36 Gbit/s
    Forwarding rate26.7 Mpps
    Packet buffer memory0.525 MB
    DHCP featuresDHCP client, DHCP relay, DHCP snooping
    IGMP snoopingY
    IGMP proxyY
    Security algorithmsSNMP, SNMPv3, SSH, SSL/TLS
    MAC address filteringY
    Loop protectionY
    Queue scheduling algorithmsSPQ, WFQ, Weighted Round Robin (WRR)
    Multicast supportY
    Rack mountingY
    Product colourGrey
    LED indicatorsY
    Electromagnetic compatibilityCE, FCC, C-Tick, A; BSMI CNS13438
    Noise level39 dB
    Firmware upgradeableY
    Mean time between failures (MTBF)1699692.18 h
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)300.9 W
    Power over Ethernet (PoE)Y
    Power over Ethernet (PoE) ports quantity16
    Total Power over Ethernet (PoE) budget250 W
    Operating temperature (T-T)-20 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation1026.07 BTU/h
    Width330 mm
    Depth230 mm
    Height44 mm
    Weight2.42 kg
    Cables includedAC
    Rack mount kitY
    Harmonized System (HS) code85176990
    Description
    Zyxel GS1350-18HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting
    StatusJautāt
    Description
    Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications New outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch. Specialized PoE software features for surveillance Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations. Unique hardware, robust design Stabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system. Selected power supply 2X Surge and ESD protection. Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply. Intelligent System Monitor Keeps the system operational from anomalies. Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

    Switch type Managed
    Switch layer L2
    Web-based management Y
    Configuring Location Settings (CLI) Y
    System event log Y
    MIB support RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Combo SFP ports quantity 2
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroring Y
    Flow control support Y
    Broadcast storm control Y
    Rate limiting Y
    Spanning tree protocol Y
    VLAN support Y
    Virtual LAN features MAC address-based VLAN, Port-based VLAN
    Number of VLANs 256
    Fiber ethernet cabling technology 1000BASE-X
    MAC address table 8000 entries
    Switching capacity 36 Gbit/s
    Forwarding rate 26.7 Mpps
    Packet buffer memory 0.525 MB
    DHCP features DHCP client, DHCP relay, DHCP snooping
    IGMP snooping Y
    IGMP proxy Y
    Security algorithms SNMP, SNMPv3, SSH, SSL/TLS
    MAC address filtering Y
    Loop protection Y
    Queue scheduling algorithms SPQ, WFQ, Weighted Round Robin (WRR)
    Multicast support Y
    Rack mounting Y
    Product colour Grey
    LED indicators Y
    Electromagnetic compatibility CE, FCC, C-Tick, A; BSMI CNS13438
    Noise level 39 dB
    Firmware upgradeable Y
    Mean time between failures (MTBF) 1699692.18 h
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (max) 300.9 W
    Power over Ethernet (PoE) Y
    Power over Ethernet (PoE) ports quantity 16
    Total Power over Ethernet (PoE) budget 250 W
    Operating temperature (T-T) -20 - 50 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 1026.07 BTU/h
    Width 330 mm
    Depth 230 mm
    Height 44 mm
    Weight 2.42 kg
    Cables included AC
    Rack mount kit Y
    Harmonized System (HS) code 85176990
