| manufacturer | VALUE |
| product group | Connection technology TP |
| product type | Accessories |
| colour | grey |
| weight | 133 |
| height of packaging (single piece) | 70 |
| width of packaging (single piece) | 90 |
| depth of packaging (single piece) | 100 |
| package weight (single piece) | 0.17 |
| gross weight | 0.17 |
| scope of delivery | Outdoor Box |
| height | 58 |
| width | 76 |
| depth | 86 |
| dimensions (hxwxd) | 58 x 76 x 86 x mm |
| quantity of ports | 2 |
| connection direction | Straight |
| material (casing) | ABS |
| protection class (ip code) | IP44 |
| wall fixening | Wall mount |
| modular assembly | yes |
| cabinet system | 19"-Technique |
| battery category | not applicable |
| Description |

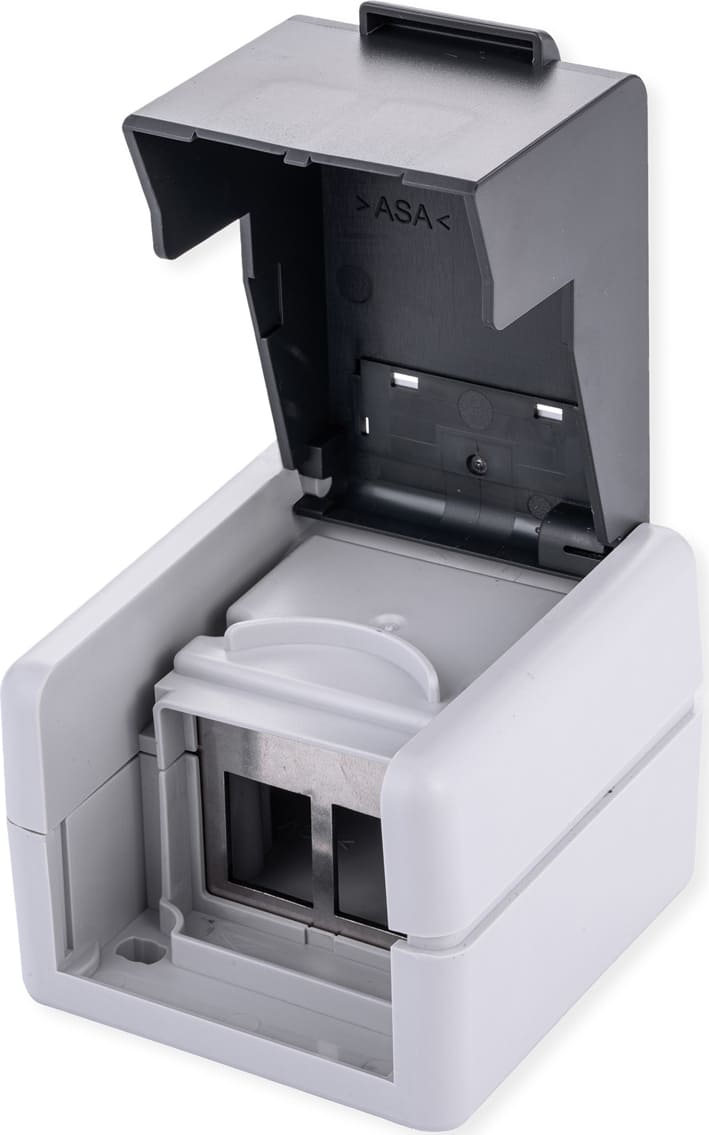

Wall-mounted enclosure with 2 ports for use with keystones, suitable for outdoor use and anywhere where connections need to be protected (protection class IP44)- Suitable for production process / outdoor / industrial application (IP44)
- Compatible with all snap-in connectors (keystones) that can be attached and detached with a simple click.
- Box for 2 keystones
- Keystone output: 90° (straight down)
- The keystones are protected by a hinged cover
- Cable openings protected at the front by a hinged cover and at the rear by a dust cover
- Individual markings are possible thanks to an integrated labeling field.
- Material: Thermoplastic (ABS); metal keystone holder
- Dimensions: HxWxD: 58 x 76 x 86 mm
- Color: Light gray with anthracite cover
- Space-saving, easy to install
- Note: Keystones are not included. Please order them separately.
|
|
