Manufacturer: ZYXEL

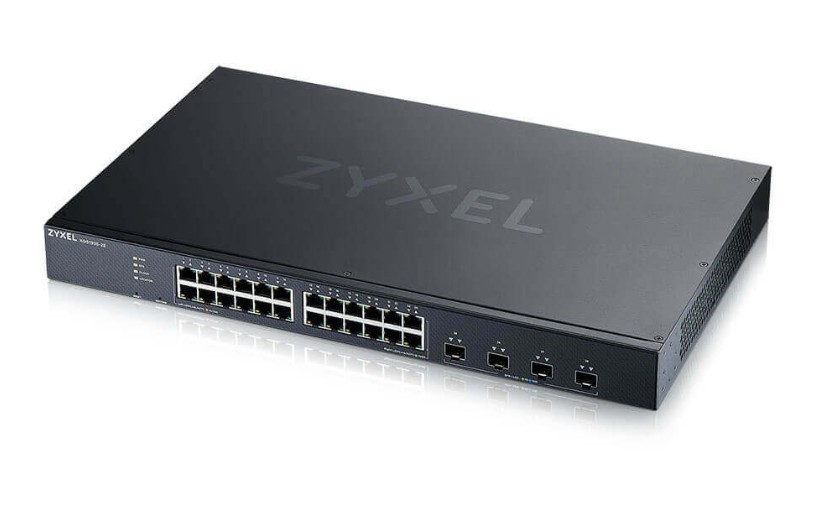

Zyxel XGS1935-28-EU0101F tīkla pārslēgs Vadīts L2+/L3 Gigabit Ethernet (10/100/1000) 1U Melns

€245.50 incl tax

SKU: ST08833804

Manufacturer part number: XGS1935-28-EU0101F

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	2	€245.50 incl tax
LV	7 - 12 days	29	€288.95 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

RJ-45 port	24
WRL stadarti	802.11b
Properties	RJ-45

Switch class	SMART
Switch class	Managed
Application	Medium and large companies
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	24
10/100/1000/2500 Mbps ports	None
Number of ports 1G/2.5G/5G/10G	1
Number of 10Gb ports	4
Number of ports 25Gb	None
Number of PoE ports (PoE & PoE+)	None
Number of PoE+ ports	None
Number of COMBO ports	None
Number of SFP ports	None
Number of SFP+ ports	4
Number of SFP56 ports	None
Number of QSFP+ ports	None
Console port	No
Throughput	128 (Gigabity na sek.)
Forwarding rate	95.2 (Mpps)
Packet buffer	1.5 (MegaBajt)
MAC address table size	16000
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
Stackability	Yes
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3ae 10-Gigabit Ethernet Over Fiber IEEE 802.3af PoE IEEE 802.3at PoE Plus IEEE 802.3az EEE IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
QoS	No. of hardware queues per port: 8 802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, unknown L2MC, unknown unicast (DLF) Rate limiting per port Policy-based rate limiting Policy-based prioritization
Security	802.1X Port security MAC authentication Static MAC forwarding SSL Static ARP Policy-based security filtering Port isolation MAC search Guest VLAN PPPoE relay agent PPPoE option 82 PPPoE IA Interface related trap enable/ disable (by port) CPU protection SHA2 HTTPS certification Login authentication by RADIUS RADIUS accounting Authorization on RADIUS Multiple RADIUS servers 802.1x VLAN and bandwidth assignment by RADIUS ACL packet filtering (IPv4)
Management, monitoring, configuration	Support NebulaFlex for hybrid mode Standalone management by Web interface Cloud management by Nebula Control Center Setup Wizard Management through Telnet Management through Web, SNMP Firmware upgrade by FTP/Web Configuration saving and retrieving Multiple login supported Configure clone DHCP relay per VLAN DHCP client IPv4 DHCP client IPv6 DHCP option 82 Daylight saving NTP Server (IPv4/IPv6) - Support DNS format Display port utilization Port mirroring Scheduled PoE PoE default consumption mode PoE power management extended configuration Web login warning page Restore to last custom default
Chassis type	Rack
Fan	No
Power supply	External
Power consumption	23.2 (Watt)
Mean time between failures (MTBF)	518332 (Hour)
Environment requirements	Warunki pracy: Temperatura: -20°C do 50°C Wilgotność: 10% do 95% (bez kondensacji) Przechowywanie: Temperatura: -40°C do 70°C Wilgotność: 10% do 95% (bez kondensacji)
Certificates	LVD BSMI FCC Part 15 (Class A) CE (Class A) BSMI EMC RoHS
Power supply	100 do 240 V prądu przemiennego, 50/60 Hz
Dimensions	440 x 270 x 43 mm
Weight	3.1 (kilogram)
Designation	CE+WEEE
Width	510
Height	95
Depth	395
Weight	4200
Description
Description	Seria Zyxel XGS1935 to rodzina inteligentnych przełączników zarządzanych Lite-L3, która obejmuje cztery modele, w tym opcje z 28 i 52 portami, zarówno z PoE, jak i bez PoE. Wszystkie cztery modele są wyposażone w dodatkowe cztery porty światłowodowe 10GbE, które odpowiadają na rosnące potrzeby Twojej firmy w zakresie wysokich prędkości sieci. Seria ta została zaprojektowana z inteligentnym wentylatorem, który automatycznie dostosowuje prędkość w zależności od temperatury urządzenia, zapewniając niemal bezgłośną pracę przełącznika.

power over ethernet (poe)

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

3.1 kg

height

433 mm

width

440 mm

depth

270 mm

switch type

Managed

stackable

Yes

country of origin

China

switch layer

L2+/L3

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

95.2 Mpps

packet buffer memory

1.5 MB

multicast support

Yes

rack mounting

Yes

form factor

product colour

Black

led indicators

Yes

power consumption (max)

23.2 W

operating temperature (t-t)

-20 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

package width

508 mm

package depth

394 mm

package height

90 mm

package weight

4.58 kg

power source

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

cables included

jumbo frames support

Yes

power consumption (typical)

11.5 W

jumbo frames

9000

igmp snooping

Yes

power supply included

Yes

rack mount kit

Yes

internal memory

512 MB

vlan support

Yes

system event log

Yes

flash memory

32 MB

sfp+ module slots quantity

dhcp features

DHCP client, DHCP relay

traffic classification

Yes

arp inspection

Yes

cloud-managed

Yes

configuring location settings (cli)

Yes

traffic shaping

Yes

memory type

RAM / Flash

Description

Zyxel XGS1935-28-EU0101F. Slēdža tips: Vadīts, Slēdža līmenis: L2+/L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Statņa montāža, Formas faktors: 1U
