    Iepriekšējais produktsAten 1U 16A 10Port Basic PD...
    Nākamais produktsAten 4-Port USB-to-Serial R...
    Ražotājs: ATEN

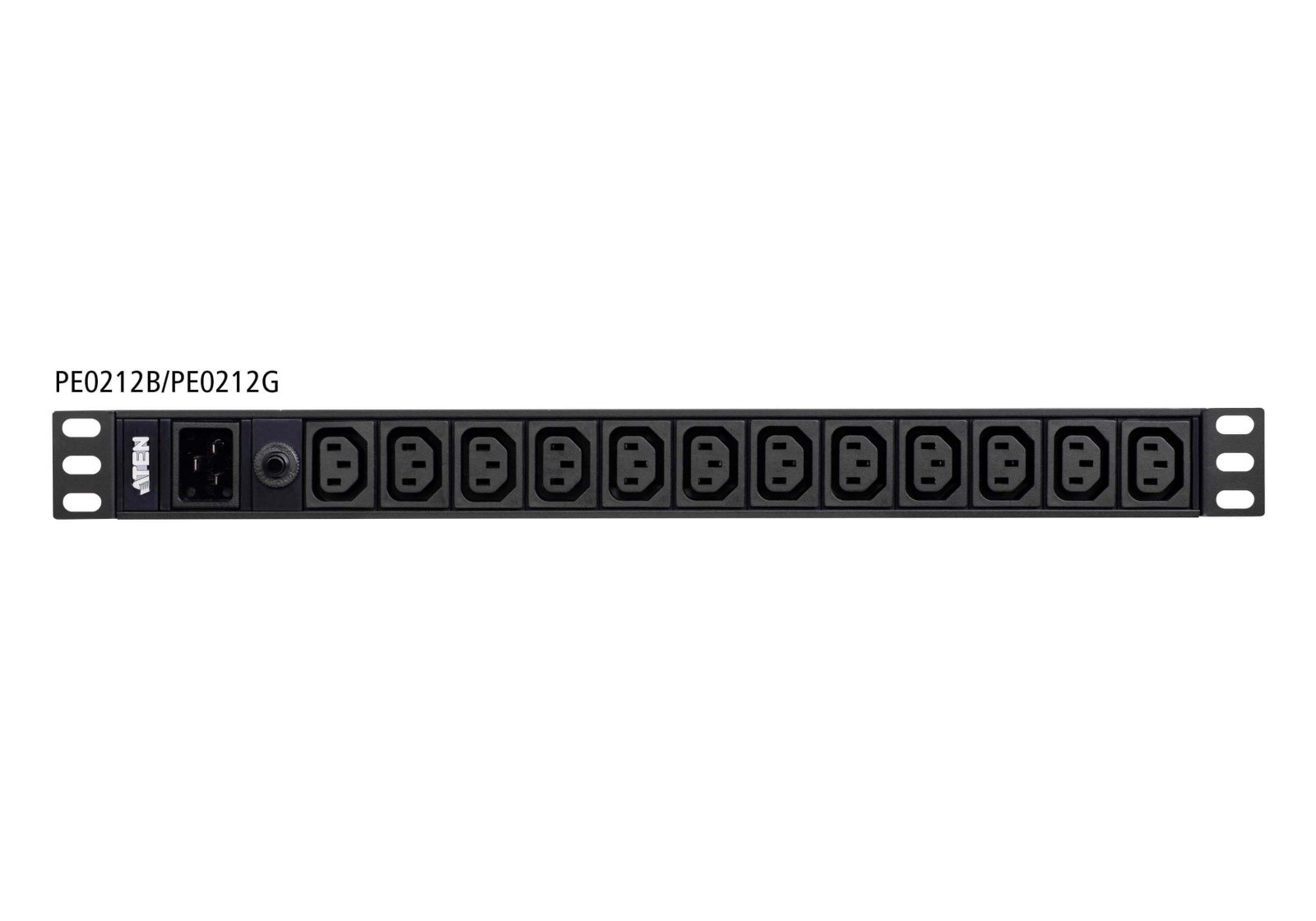

    Aten 1U 16A 12Port Basic PDU


    €76,24 ar pvn

    Artikuls: ST04705066
    Preces kods: PE0212G-AT-G
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LV
    LV
    PL

    Specifikācija
    Ligzda (IEC320) Jā
    PDU typesBasic
    Rack capacity1U
    TypeSingle-phase
    Housing materialAluminium
    Product colourBlack
    AC outlets quantity12 AC outlet(s)
    AC outlet typesC13 coupler
    Power plugC20 coupler
    Nominal input voltage100 - 240 V
    Maximum current16 A
    AC input frequency50 / 60 Hz
    Load capacity3840 VA
    Power protection featuresOver current
    Width488 mm
    Depth44 mm
    Height45 mm
    Weight1.3 kg
    Package weight1.49 kg
    Package width112 mm
    Package depth697 mm
    Package height82 mm
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating altitude0 - 3000 m
    Sustainability certificatesRoHS
    Master (outer) case net weight13 kg
    Master (outer) case width595 mm
    Master (outer) case length710 mm
    Master (outer) case height188 mm
    Master (outer) case gross weight14.9 kg
    Products per master (outer) case10 pc(s)
    Description
    ATEN 1U 16A 12Port Basic PDU. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 100 - 240 V, Maximum current: 16 A, AC input frequency: 50 / 60 Hz. Width: 488 mm, Depth: 44 mm, Height: 45 mm. Package weight: 1.49 kg, Package width: 112 mm, Package depth: 697 mm
    manufacturerATEN
    product groupSteckdosenleisten
    product typeStromverteilereinheiten (PDUs)
    colourblack
    weight0.88 kg
    height of packaging (single piece)110 mm
    width of packaging (single piece)130 mm
    depth of packaging (single piece)680 mm
    package weight (single piece)1.347 kg
    gross weight1.347
    current catalog edition24.1
    current catalog page10.26
    technical particularity--
    scope of delivery1x Basis-PDU PE0212G, 1x Stromkabel, 1x Benutzeranleitung
    height448 mm
    width44 mm
    depth45 mm
    material (casing)Metall
    colour (design profile)schwarz
    mounting form19" Rackmount
    on/off switchnein
    switch typeI
    number of socket pots12
    quantity of outputs/angles12
    output alignmentgerade, vorderseitig
    connector plug12 x IEC320 C13
    regional useOhne Einschränkung
    Description
    Gross depth (mm)482
    Gross height (mm)45.00
    Gross weight1.45
    Gross width (mm)44
    Net weight0.67
    Packing quantity1.00
    Paper/Pasteboard780.00
    Tare weight (kg)0.78
    Volume (m3)0.00095436
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Plastic (No PET)158.00
    Producer product namePE0212G Basic PDU Series
    Colour of productBlack
    FunctionsSpace saving - 1U rack mount design; IEC or NEMA outlet models; Overcurrent Protection; Aluminum material
    Palette Qty602
    ProducerAten
    Warranty24

    Specifikācija
    Ligzda (IEC320) Jā
    PDU typesBasic
    Rack capacity1U
    TypeSingle-phase
    Housing materialAluminium
    Product colourBlack
    AC outlets quantity12 AC outlet(s)
    AC outlet typesC13 coupler
    Power plugC20 coupler
    Nominal input voltage100 - 240 V
    Maximum current16 A
    AC input frequency50 / 60 Hz
    Load capacity3840 VA
    Power protection featuresOver current
    Width488 mm
    Depth44 mm
    Height45 mm
    Weight1.3 kg
    Package weight1.49 kg
    Package width112 mm
    Package depth697 mm
    Package height82 mm
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating altitude0 - 3000 m
    Sustainability certificatesRoHS
    Master (outer) case net weight13 kg
    Master (outer) case width595 mm
    Master (outer) case length710 mm
    Master (outer) case height188 mm
    Master (outer) case gross weight14.9 kg
    Products per master (outer) case10 pc(s)
    Description
    ATEN 1U 16A 12Port Basic PDU. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 100 - 240 V, Maximum current: 16 A, AC input frequency: 50 / 60 Hz. Width: 488 mm, Depth: 44 mm, Height: 45 mm. Package weight: 1.49 kg, Package width: 112 mm, Package depth: 697 mm
    manufacturerATEN
    product groupSteckdosenleisten
    product typeStromverteilereinheiten (PDUs)
    colourblack
    weight0.88 kg
    height of packaging (single piece)110 mm
    width of packaging (single piece)130 mm
    depth of packaging (single piece)680 mm
    package weight (single piece)1.347 kg
    gross weight1.347
    current catalog edition24.1
    current catalog page10.26
    technical particularity--
    scope of delivery1x Basis-PDU PE0212G, 1x Stromkabel, 1x Benutzeranleitung
    height448 mm
    width44 mm
    depth45 mm
    material (casing)Metall
    colour (design profile)schwarz
    mounting form19" Rackmount
    on/off switchnein
    switch typeI
    number of socket pots12
    quantity of outputs/angles12
    output alignmentgerade, vorderseitig
    connector plug12 x IEC320 C13
    regional useOhne Einschränkung
    Description
    Gross depth (mm)482
    Gross height (mm)45.00
    Gross weight1.45
    Gross width (mm)44
    Net weight0.67
    Packing quantity1.00
    Paper/Pasteboard780.00
    Tare weight (kg)0.78
    Volume (m3)0.00095436
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Plastic (No PET)158.00
    Producer product namePE0212G Basic PDU Series
    Colour of productBlack
    FunctionsSpace saving - 1U rack mount design; IEC or NEMA outlet models; Overcurrent Protection; Aluminum material
    Palette Qty602
    ProducerAten
    Warranty24
