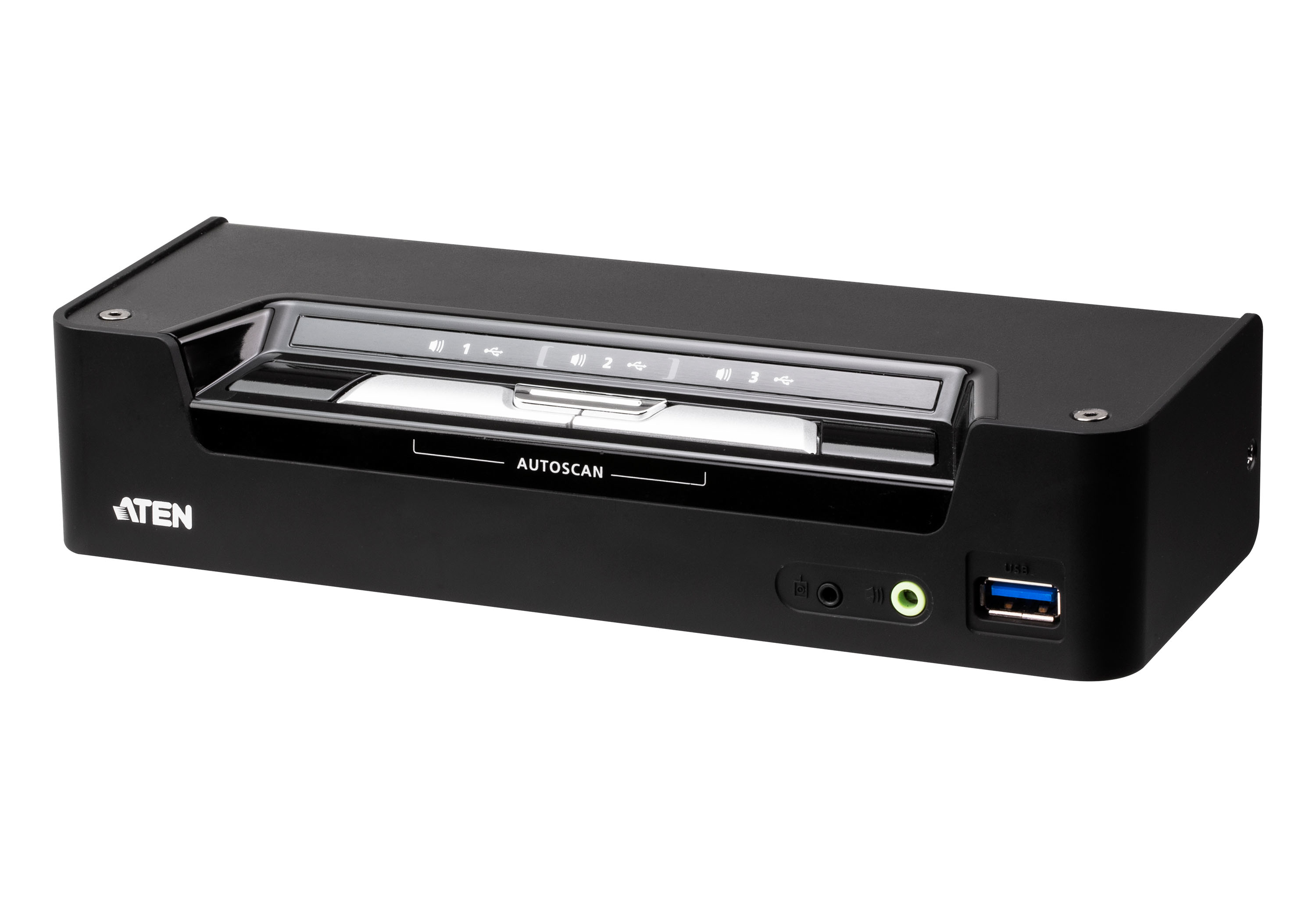

    • ATEN 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
    Ražotājs: ATEN

    ATEN 3-Port USB-C DisplayPort Hybrid KVMP™ Switch


    €280,19 ar pvn

    Artikuls: ST04780973
    Preces kods: CS1953
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Number of computers controlled3
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
    DisplayPorts quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity3
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Audio connectionsYes
    Headphone outputs4
    Number of microphone inputs1
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,5,99 s
    Product colourBlack
    Housing materialMetal, Plastic
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)5.78 W
    Windows operating systems supportedYes
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width206.3 mm
    Depth75.4 mm
    Height44 mm
    Weight960 g
    Package width95 mm
    Package depth265 mm
    Package height220 mm
    Package weight1.33 kg
    Quick installation guideYes
    ManualYes
    Master (outer) case net weight4.8 kg
    Harmonized System (HS) code85176200
    Master (outer) case width232 mm
    Master (outer) case length500 mm
    Master (outer) case height283 mm
    Master (outer) case gross weight7.19 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 3-Port USB-C DisplayPort Hybrid KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 5.78 W. Width: 206.3 mm, Depth: 75.4 mm, Height: 44 mm
    manufacturerATEN
    product groupKVM switches / PC shares
    product typeKVM-Switch, DP
    colourblack
    weight0.5 kg
    height of packaging (single piece)220 mm
    width of packaging (single piece)270 mm
    depth of packaging (single piece)90 mm
    package weight (single piece)1.334 kg
    gross weight1.334
    current catalog edition24.1
    current catalog page3.11
    technical particularityLEDs for easy status monitoring
    scope of delivery1 x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch, ...
    height44 mm
    width76 mm
    depth207 mm
    dimensions (hxwxd)44x76x207 mm
    quantity of pcs3
    supported pc-systemsUSB 3.1
    pc: monitor connection2 x DP F; 1 x USB-C
    pc: mouse/keyboard connectionUSB
    print button on deviceyes
    19" compatibleno
    cascadableno
    hot plug compatibleno
    max. resolution (nominal)4096 x 2160 @60 Hz
    colour (design profile)black
    power supply unit requiredyes
    pc: connection on moulded cablesno
    keyboard/mouse emulationyes
    mains connectionAppliance Europlug, Type-C
    Description

    Specifikācija
    Number of computers controlled3
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
    DisplayPorts quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity3
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Audio connectionsYes
    Headphone outputs4
    Number of microphone inputs1
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,5,99 s
    Product colourBlack
    Housing materialMetal, Plastic
    LED indicatorsYes
    Push buttonYes
    Hot keysYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)5.78 W
    Windows operating systems supportedYes
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width206.3 mm
    Depth75.4 mm
    Height44 mm
    Weight960 g
    Package width95 mm
    Package depth265 mm
    Package height220 mm
    Package weight1.33 kg
    Quick installation guideYes
    ManualYes
    Master (outer) case net weight4.8 kg
    Harmonized System (HS) code85176200
    Master (outer) case width232 mm
    Master (outer) case length500 mm
    Master (outer) case height283 mm
    Master (outer) case gross weight7.19 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 3-Port USB-C DisplayPort Hybrid KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 5.78 W. Width: 206.3 mm, Depth: 75.4 mm, Height: 44 mm
    manufacturerATEN
    product groupKVM switches / PC shares
    product typeKVM-Switch, DP
    colourblack
    weight0.5 kg
    height of packaging (single piece)220 mm
    width of packaging (single piece)270 mm
    depth of packaging (single piece)90 mm
    package weight (single piece)1.334 kg
    gross weight1.334
    current catalog edition24.1
    current catalog page3.11
    technical particularityLEDs for easy status monitoring
    scope of delivery1 x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch, ...
    height44 mm
    width76 mm
    depth207 mm
    dimensions (hxwxd)44x76x207 mm
    quantity of pcs3
    supported pc-systemsUSB 3.1
    pc: monitor connection2 x DP F; 1 x USB-C
    pc: mouse/keyboard connectionUSB
    print button on deviceyes
    19" compatibleno
    cascadableno
    hot plug compatibleno
    max. resolution (nominal)4096 x 2160 @60 Hz
    colour (design profile)black
    power supply unit requiredyes
    pc: connection on moulded cablesno
    keyboard/mouse emulationyes
    mains connectionAppliance Europlug, Type-C
    Description
