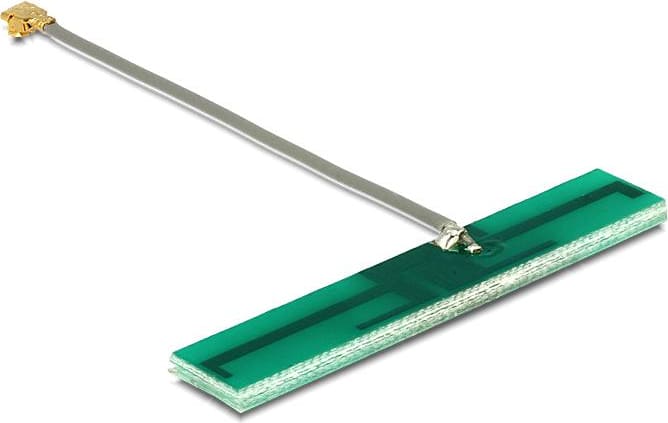

    • Antena WLAN 802.11 ac/ax/a/h/b/g/n MHF® I plug 3dBi 1.13 5cm
    Ražotājs: DELOCK

    Antena WLAN 802.11 ac/ax/a/h/b/g/n MHF® I plug 3dBi 1.13 5cm


    €9,03 ar pvn

    Artikuls: ST09562652
    Preces kods: 86246
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    N/ANO PROPERTY
    Description
    Description:
    This antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send WLAN and Bluetooth signals.

    Specification:
    • Internal WLAN antenna PCB
    • Connector: miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
    • Cable length: 50 mm
    • Cable diameter: 1.13 mm
    • Cable type: coax
    • Frequency range: 2.400 ~ 2.500 GHz, 4.900 ~ 5.825 GHz
    • Gain: > 3 dBi
    • Operating temperature: -10 °C ~ 55 °C
    • VSWR: 2.5:1 max.
    • Dimensions (LxWxH): 42.00 x 7.70 x 1.60 mm
    • Backside: self adhesive

    System requirements:


    Package content:
    • Antenna

    Specifikācija
    N/ANO PROPERTY
    Description
    Description:
    This antenna you can integrate into your devices with MHF / U.FL compatible connection to receive and send WLAN and Bluetooth signals.

    Specification:
    • Internal WLAN antenna PCB
    • Connector: miniature RF coaxial connector MHF (I-PEX), U.FL (Hirose) compatible
    • Cable length: 50 mm
    • Cable diameter: 1.13 mm
    • Cable type: coax
    • Frequency range: 2.400 ~ 2.500 GHz, 4.900 ~ 5.825 GHz
    • Gain: > 3 dBi
    • Operating temperature: -10 °C ~ 55 °C
    • VSWR: 2.5:1 max.
    • Dimensions (LxWxH): 42.00 x 7.70 x 1.60 mm
    • Backside: self adhesive

    System requirements:


    Package content:
    • Antenna
