Iepriekšējais produktsAPC SU032A rack accessory R...

Nākamais produktsAPC Temperature & Humidity ...

Ražotājs: APC

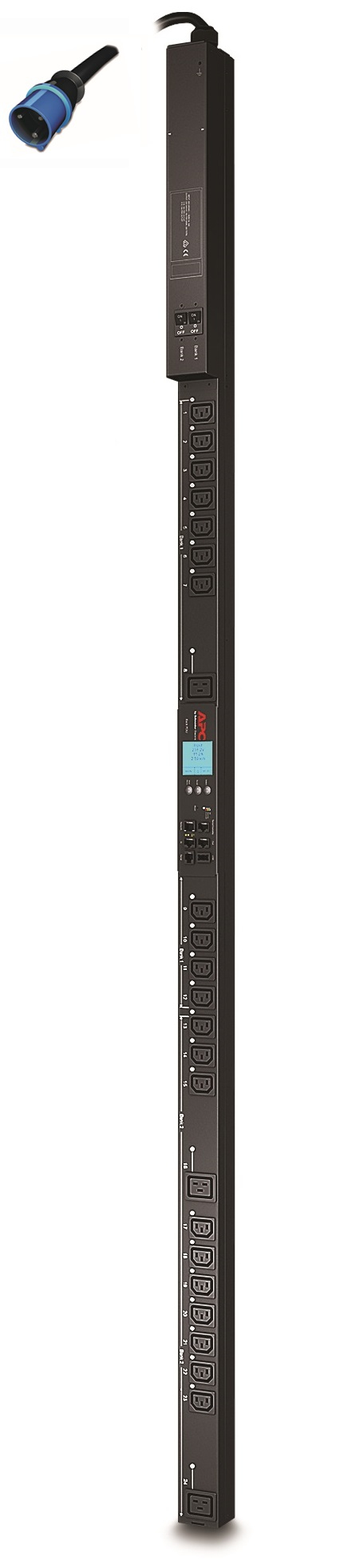

APC Switched Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black

€2261,48 ar pvn

Artikuls: ST02297091

Preces kods: AP8653

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	42	€2261,48 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

Description	APC RACK PDU 2G, METERED BY OUTLET WITH SWITCHING, ZEROU, 32A, 230V, (21) C13 & (3) C19
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/AP8653.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP8653.jpg
Weight	39.380000
Height	250.000000
Length	2200.000000
Width	600.000000
BoxSize	0
PalletSize	0
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Nominal input voltage, V	200V, 208V, 230V
Input frequency, Hz	50/60
Output interface	(21) IEC 320 C13, (3) IEC 320 C19
Nominal output voltage, V	230
Input current, A	32
Width, mm	56
Depth, mm	51
Height, mm	1829
Weight, kg	8.23
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Input connection	IEC 309 32A 2P+E
Cable length, m	3
Description
Description	Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19, IEC309 Cord

PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Type	Single-phase
Mounting	Vertical
Product colour	Black
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Cable length	3 m
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Power protection features	Overload
Maximum power	7680 W
Dimensions (WxDxH)	56.00 x 51.00 x 1829.00 mm
Weight	8.23 kg
Package dimensions (WxDxH)	162.00 x 118.00 x 2038.00 mm
Package weight	10.5 kg
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC Switched Rack PDU. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m, Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz

Specifikācija

Specifikācija 1
Specifikācija 2

Description	APC RACK PDU 2G, METERED BY OUTLET WITH SWITCHING, ZEROU, 32A, 230V, (21) C13 & (3) C19
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/AP8653.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP8653.jpg
Weight	39.380000
Height	250.000000
Length	2200.000000
Width	600.000000
BoxSize	0
PalletSize	0
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Nominal input voltage, V	200V, 208V, 230V
Input frequency, Hz	50/60
Output interface	(21) IEC 320 C13, (3) IEC 320 C19
Nominal output voltage, V	230
Input current, A	32
Width, mm	56
Depth, mm	51
Height, mm	1829
Weight, kg	8.23
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Input connection	IEC 309 32A 2P+E
Cable length, m	3
Description
Description	Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19, IEC309 Cord

PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Type	Single-phase
Mounting	Vertical
Product colour	Black
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Cable length	3 m
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Power protection features	Overload
Maximum power	7680 W
Dimensions (WxDxH)	56.00 x 51.00 x 1829.00 mm
Weight	8.23 kg
Package dimensions (WxDxH)	162.00 x 118.00 x 2038.00 mm
Package weight	10.5 kg
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC Switched Rack PDU. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m, Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
