Ražotājs: ASUS

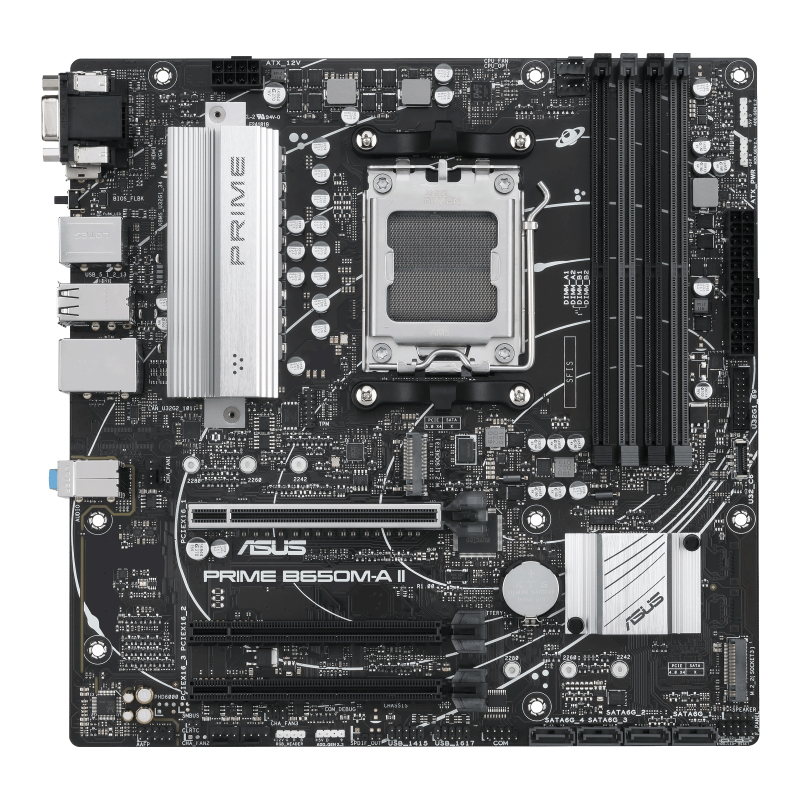

ASUS PRIME B650M-A II-CSM AMD B650 Socket AM5 micro ATX

€158,18 ar pvn

Artikuls: ST06845314

Preces kods: 90MB1EH0-M0EAYC

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	2	€158,18 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Plates izmērs (Form Factor)	mATX
Video interfeiss	HDMI
Video interfeiss	DisplayPort

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)	6400 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	6
Parallel processing technology support	Not supported
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Audio connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
PS/2 ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11
PCI Express x16 (Gen 3.x) slots	3
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Width	244 mm
Depth	244 mm
Cables included	SATA
Description
Description	ASUS PRIME B650M-A II-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Description	ASUS PRIME B650M-A II-CSM AM5 mATX MB
VatType	VAT
Weight	1.300000000
Height	70.000000000
Width	280.000000000
Length	280.000000000
Description
Description	ASUS PRIME B650M-A II-CSM AM5 mATX MB 4xDDR5 4xSATA 2xM.2

Specifikācija

1
Specifikācija 2
Specifikācija 3

Plates izmērs (Form Factor)	mATX
Video interfeiss	HDMI
Video interfeiss	DisplayPort

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)	6400 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	6
Parallel processing technology support	Not supported
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Audio connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Number of COM connectors	1
TPM connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
PS/2 ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11
PCI Express x16 (Gen 3.x) slots	3
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Width	244 mm
Depth	244 mm
Cables included	SATA
Description
Description	ASUS PRIME B650M-A II-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Description	ASUS PRIME B650M-A II-CSM AM5 mATX MB
VatType	VAT
Weight	1.300000000
Height	70.000000000
Width	280.000000000
Length	280.000000000
Description
Description	ASUS PRIME B650M-A II-CSM AM5 mATX MB 4xDDR5 4xSATA 2xM.2
