Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Maximum internal memory | 128 GB |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
Unbuffered memory | Yes |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA |
Supported storage drive types | HDD & SSD |
Number of HDDs supported | 3 |
Number of storage drives supported | 4 |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA connectors | 4 |
S/PDIF out connector | Yes |
Audio connector | Yes |
ATX Power connector (24-pin) | Yes |
Power fan connector | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 3 |
Peripheral (Molex) power connectors (4-pin) | 1 |
EPS power connector (8-pin) | Yes |
Number of COM connectors | 1 |
Serial port headers | 1 |
Thunderbolt headers | 1 |
12V power connector | Yes |
RGB LED pin header | Yes |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
HDMI version | 2.0 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 1 |
Line-in | Yes |
Microphone in | Yes |
COM ports quantity | 1 |
USB connector type | USB Type-A |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z790 |
Audio output channels | 7.1 channels |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
PCI Express x1 (Gen 4.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
BIOS type | UEFI AMI |
BIOS memory size | 192 Mbit |
Width | 244 mm |
Depth | 244 mm |
Cables included | SATA |
Bundled software | ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
Description |

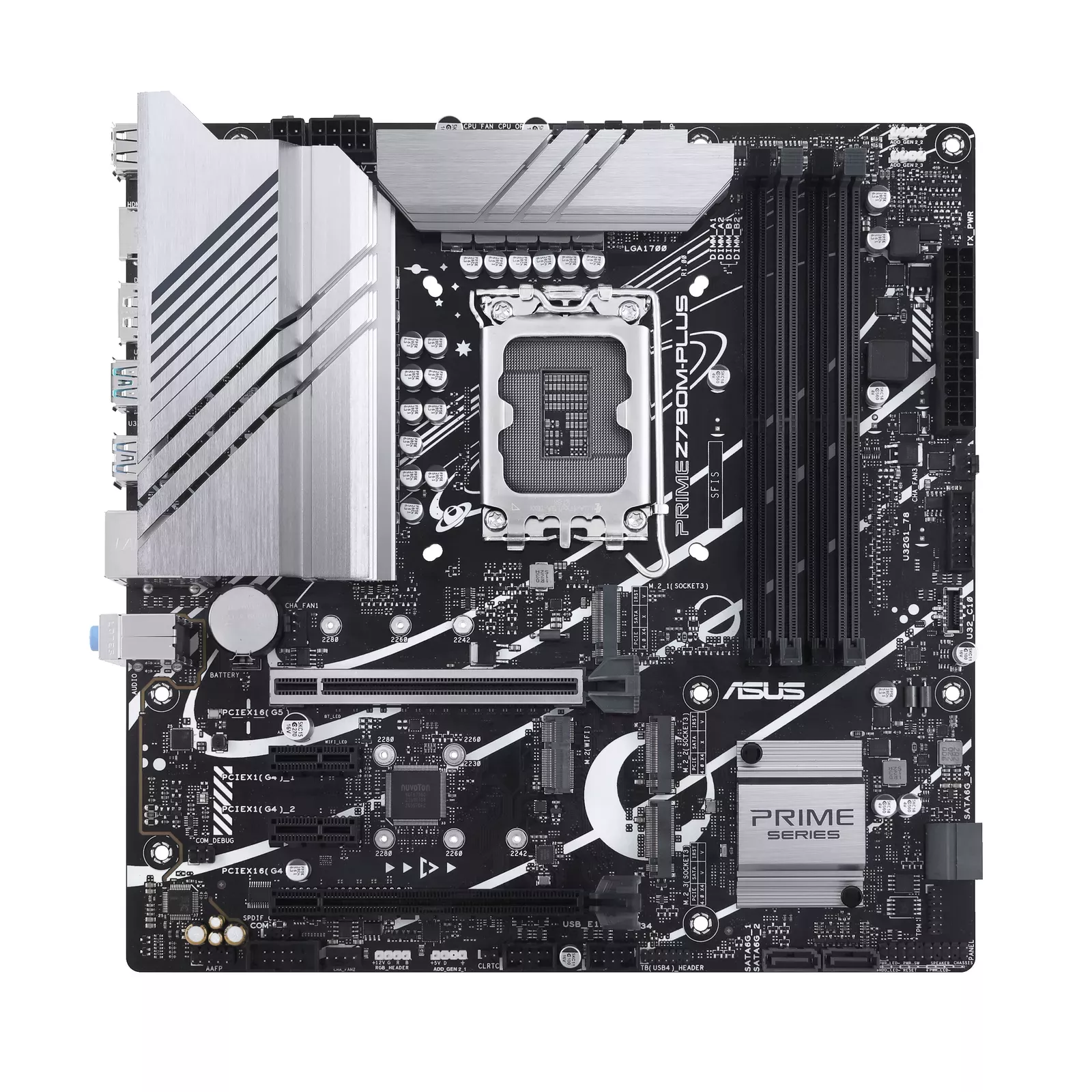

ASUS PRIME Z790M-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet |
