| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD Ryzen Threadripper Pro 3rd Gen |
| Maximum number of SMP processors | 1 |
| Processor number of cores supported | 64 |
| Processor cores | 64 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Maximum internal memory | 2.05 TB |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | 2-Way SLI, 3-Way SLI, 4-Way SLI |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 9 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X550-T2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD WRX80 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64 |
| Compatible operating systems | Windows 10 |
| PCI Express x16 slots | 7 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Trusted Platform Module (TPM) | Yes |
| Harmonized System (HS) code | 84733020 |
| Width | 309.8 mm |
| Depth | 330 mm |
| Height | 108 mm |
| Cables included | SATA, VGA |
| Drivers included | Yes |
| Weight | 572 g |
| Number of processors supported | 1 |
| Description |

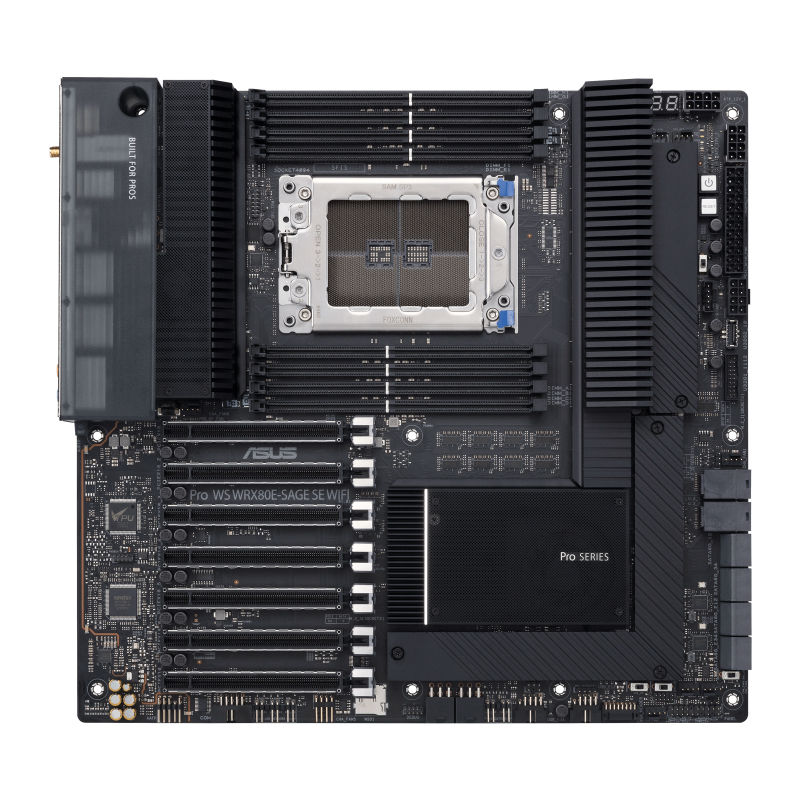

| ASUS WRX80E-SAGE SE WIFI. Processor manufacturer: AMD, Processor socket: Socket SP3, Compatible processor series: AMD Ryzen Threadripper Pro 3rd Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2.05 TB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way SLI, 3-Way SLI, 4-Way SLI. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X550-T2, Top Wi-Fi standard: Wi-Fi 6 (802.11ax) |
