    Iepriekšējais produktsAten 16-Port USB - PS/2 VGA...
    Nākamais produktsATEN 2A-127G cable gender c...
    Ražotājs: ATEN

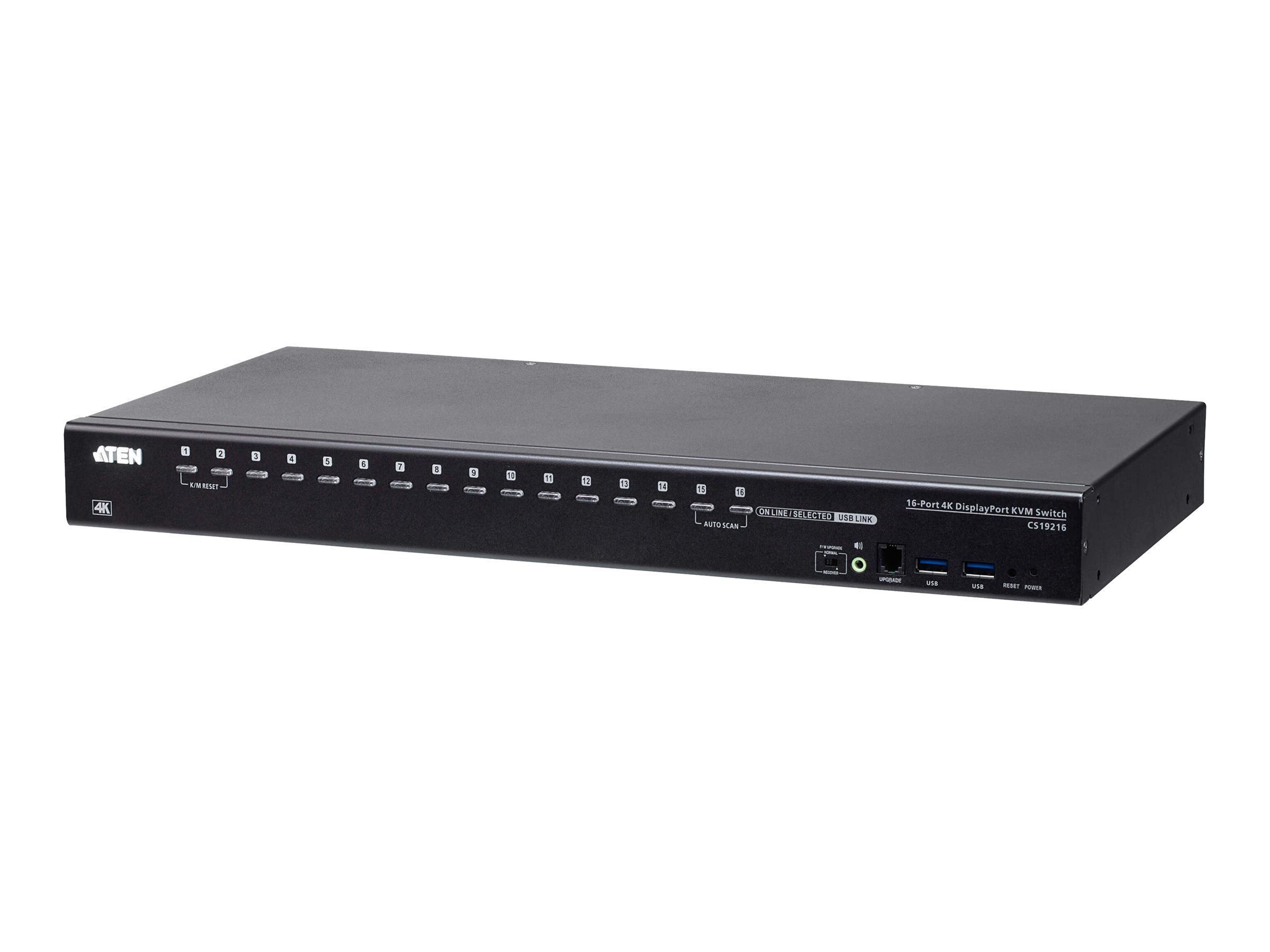

    ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch


    €2194,34 ar pvn

    Artikuls: ST07482270
    Preces kods: CS19216-AT-G
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LT

    Specifikācija
    Īpašības Display port
    Īpašības USB 3.0
    Portu skaits RJ-45 16
    Number of computers controlled16
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeDisplayPort
    Console ports3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
    DisplayPorts quantity16
    DisplayPort version1.2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity16
    Console USB ports quantity2
    USB hubYes
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
    USB connector typeUSB Type-A, USB Type-B
    Audio connectionsYes
    Headphone outputs17
    Number of microphone inputs17
    DC-in jackYes
    HD type4K Ultra HD
    Maximum resolution4096 x 2160 pixels
    Video bandwidth60 Hz
    Scan interval1,5,255 s
    HDCPYes
    Firmware upgradeableYes
    Product colourBlack
    Housing materialMetal
    LED indicatorsYes
    Push buttonYes
    Built-in displayNo
    Power sourceDC
    DC input voltage12 V
    Power consumption (typical)26.66 W
    Windows operating systems supportedYes
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width432.4 mm
    Depth214.3 mm
    Height44 mm
    Weight4.18 kg
    Package width133 mm
    Package depth499 mm
    Package height324 mm
    Package weight5.33 kg
    Quick installation guideYes
    ManualYes
    Master (outer) case net weight12.5 kg
    Harmonized System (HS) code85176200
    Master (outer) case width427 mm
    Master (outer) case length519 mm
    Master (outer) case height348 mm
    Master (outer) case gross weight15.3 kg
    Products per master (outer) case3 pc(s)
    Description
    ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 12 V, Power consumption (typical): 26.66 W. Width: 432.4 mm, Depth: 214.3 mm, Height: 44 mm
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Producer product nameCS19216
    Producer product family16-Port USB 3.0 DisplayPort KVMP Switch
    Gross depth (mm)500
    Gross height (mm)330
    Gross weight5.32
    Gross width (mm)140
    Net weight5
    Packing quantity1
    Paper/Pasteboard270
    Plastic (No PET)50
    Tare weight (kg)0.32
    Volume (m3)0.0231
    Temperature range (T-T)0-40˚C
    MaterialMetal
    Other featuresSuperior video quality – up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates. Cascadable to two levels – controls up to 256 computers. Multi-Display feature – stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display). Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources.
    Gross depth master carton565
    Gross width master carton387
    Gross height master carton260
    Net weight master carton8.022
    Tare weight master carton0.966
    I/O portsConsole Ports: 1 x DisplayPort Female 1 x HDMI Female (Black), 2 x USB Type A Female, 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
    Palette Qty37
    ProducerAten
    Warranty24
