Ražotājs: ATEN

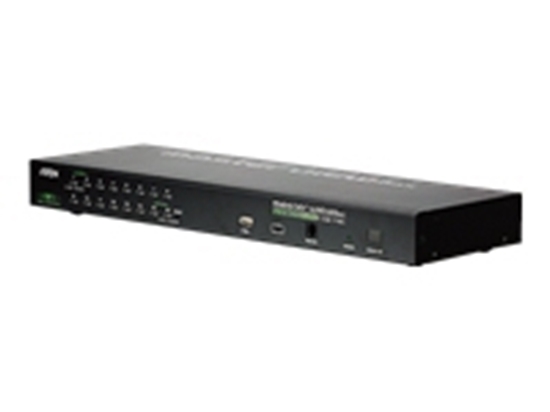

ATEN CS1716I KVM switch Rack mounting Black

€732,03 ar pvn

Artikuls: ST06665530

Preces kods: CS1716I

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	7 - 12 dienās	5	€732,03 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

Number of computers controlled	16
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Security algorithms	802.1x RADIUS, SSL/TLS
Maximum resolution	2048 x 1536 pixels
Scan interval	255 s
Plug and Play	Yes
Number of users	32 user(s)
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
LED indicators	Yes
Built-in display	No
Power consumption (typical)	11 W
USB powered	No
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	160 mm
Depth	433 mm
Height	44 mm
Weight	3 kg
Cables included	KVM
Manual	Yes
AC adapter included	Yes
Connectivity technology	Wired
Dimensions (WxDxH)	160 x 433 x 44 mm
Ports quantity	16
Compatible operating systems	Windows, Mac OS X, Linux, Sun
Power requirements	5.3VDC
Colour depth	24 bit
Browser supported	IE, Mozilla, Firefox, Safari, Opera, Netscape
I/O ports	1 x SPHD-18 M 16 x SPHD-17 F 1 x DB-25 M 1 x DC In 1 x RJ-45 F 1 x RJ-11 1 x USB1.1 A
Description
Description	ATEN CS1716I. Security algorithms: 802.1x RADIUS, SSL/TLS. Maximum resolution: 2048 x 1536 pixels, Scan interval: 255 s, Number of users: 32 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 11 W. Sustainability certificates: RoHS

manufacturer

ATEN

product group

KVM-Switches / PC-Shares

product type

KVM-Switch, VGA

colour

black

weight

2.66 kg

height of packaging (single piece)

120 mm

width of packaging (single piece)

240 mm

depth of packaging (single piece)

540 mm

package weight (single piece)

3.978 kg

gross weight

3.978

current catalog edition

24.1

current catalog page

3.18

technical particularity

USB - Peripherie Port, TCP/IP

scope of delivery

Switch, Bedienungsanleitung, Netzteil, 19"-Winkel

height

44 mm

width

430 mm

depth

160 mm

dimensions (hxwxd)

44 x430x160 mm

material (casing)

Metall

quantity of pcs

supported pc-systems

PS/2 und USB

print button on device

switching over hot keys

Tastatur

integrated hub

nein

19" compatible

ja, optional

cascadable

hot plug compatible

nein

max. resolution (nominal)

2048x1536

power supply unit required

power supply output

5V DC / 1A

analogue console: monitor connection

1x HD 15pol. BU

analogue console: mouse/keyboard connection

2x USB Txp A

pc: connection on moulded cables

nein

quantity of analogue consoles

integrated console

nein

switching over scan run

switching over osd

audio switching

Lautsprecher und Mikrofon

audio switching separately

nein

keyboard/mouse emulation

mains connection

Gerät-Eurostecker, Typ-C

pc: combi connection

16x SPHD 15pol. BU
