| manufacturer | ATEN |
| product group | KVM-Switches / PC-Shares |
| product type | KVM-Switch, DP |
| colour | black |
| weight | 0.73 kg |
| height of packaging (single piece) | 180 mm |
| width of packaging (single piece) | 280 mm |
| depth of packaging (single piece) | 100 mm |
| package weight (single piece) | 1.785 kg |
| gross weight | 1.785 |
| current catalog edition | 24.1 |
| current catalog page | 3.08 |
| technical particularity | LED-Anzeige für Kanalbelegung |

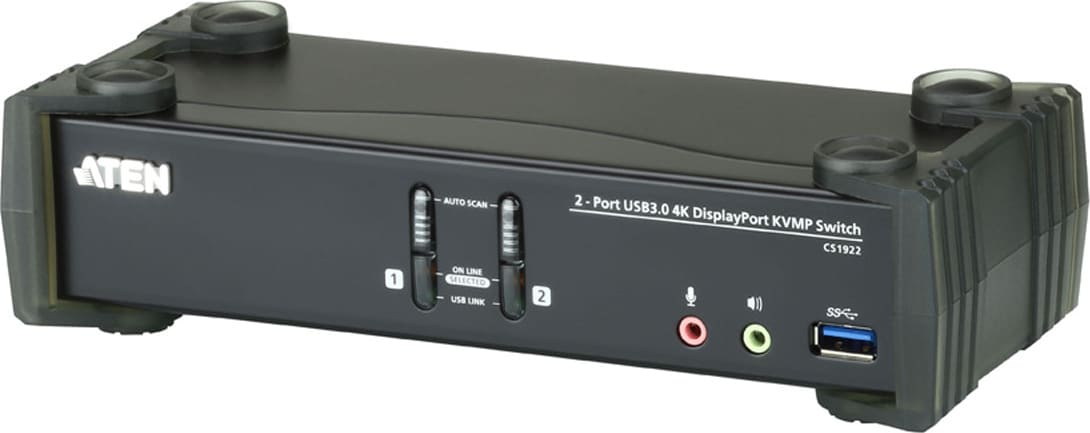

| scope of delivery | 1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch, 2x ... |
| height | 55.5 mm |
| width | 88 mm |
| depth | 210 mm |
| dimensions (hxwxd) | 55,5x 88 x 210 mm |
| material (casing) | metal |
| quantity of pcs | 2 |
| supported pc-systems | USB 3.1 |
| pc: monitor connection | 2x DP BU |
| pc: mouse/keyboard connection | USB |
| quantity of digital consoles | 2 |
| print button on device | nein |
| switching over hot keys | Tastatur |
| 19" compatible | nein |
| cascadable | nein |
| hot plug compatible | nein |
| max. resolution (nominal) | 4096 x 2160 bei 60 Hz |
| colour (design profile) | schwarz |
| power supply unit required | ja |
| pc: connection on moulded cables | nein |
| switching over scan run | ja |
| switching over osd | nein |
| audio switching separately | ja |
| keyboard/mouse emulation | ja |
| mains connection | Gerät-Eurostecker, Typ-C |
