    Ražotājs: ATEN

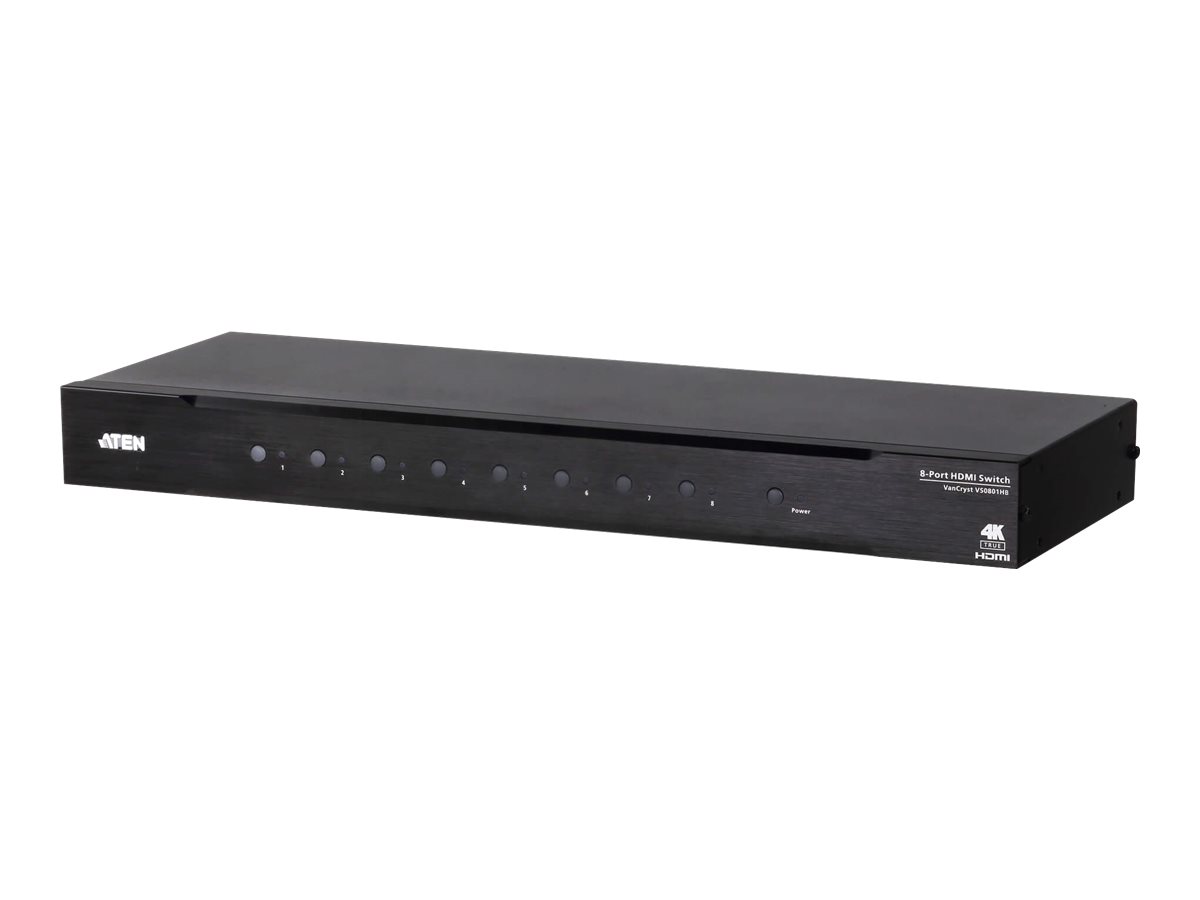

    Aten 8 Port True 4K HDMI Switch


    €306,87 ar pvn

    Artikuls: ST03294707
    Preces kods: VS0801HB-AT-G
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LT
    LT

    Specifikācija
    Īpašības HDMI
    Portu skaits RJ-45 8
    Video port typeHDMI
    HDMI ports quantity8
    HDMI version2.0
    HDMI in8
    Number of HDMI outputs1
    RS-232 ports1
    DC-in jackYes
    MaterialMetal
    Product colourBlack
    Consumer Electronics Control (CEC) supportYes
    HDCPYes
    Maximum refresh rate60 Hz
    Maximum operating distance3 m
    Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
    Bandwidth18 Gbit/s
    Bandwidth600 MHz
    Maximum resolution4096 x 2160 pixels
    3DYes
    HD type4K Ultra HD
    Input impedance100 Ω
    Output impedance100 Ω
    HDCP version2.2
    AC adapter input voltage5.3 V
    Power consumption (typical)3.73 W
    Width158.3 mm
    Depth437.2 mm
    Height44 mm
    Weight2.42 kg
    Package width116 mm
    Package depth540 mm
    Package height233 mm
    Package weight2.87 kg
    Mounting kitYes
    AC adapter includedYes
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Harmonized System (HS) code85176990
    Master (outer) case width375 mm
    Master (outer) case length565 mm
    Master (outer) case height258 mm
    Master (outer) case gross weight9.5 kg
    Products per master (outer) case3 pc(s)
    Master (outer) case net weight7.26 kg
    Description
    ATEN 8 Port True 4K HDMI Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC adapter input voltage: 5.3 V, Power consumption (typical): 3.73 W. Width: 158.3 mm, Depth: 437.2 mm, Height: 44 mm. Package width: 116 mm, Package depth: 540 mm, Package height: 233 mm
    Gross depth (mm)240.00
    Gross height (mm)158.00
    Gross weight0.81
    Gross width (mm)58.00
    Net weight0.65
    Packing quantity1.00
    Paper/Pasteboard163.00
    Tare weight (kg)0.16
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Inner carton packing Qty1.00
    Producer product name VS0801HB
    Other featuresAllows up to 8 HDMI sources to be connected to one HDMI display; HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant; Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
    Warranty24
    Plastic (No PET)100.00
    Producer product family8-Port True 4K HDMI Switch
    Resolution4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
    Dimensions (WxDxH)15.83 x 43.72 x 4.40
    Operating temperature (T-T)0 to 40
    Operating relative humidity (H-H)0 - 80% RH, Non-Condensing
    Gross depth master carton330
    Gross width master carton225
    Gross height master carton185
    Net weight master carton4.12
    Tare weight master carton0.234
    Palette Qty786
    ProducerAten
