| General Specifications | |
| Machine Type | Mono Laser All-In-One |
| Available Functions | Print, Copy, Scan and Fax |
| Print Specifications | |
| Print Speed | Single sided : Up to 40 ppm (A4)
Up to 65.4 ppm(A5-Landscape)
Double sided : Up to 33.6 ipm (A4) |
| Printing Method | Monochrome laser beam printing |
| Print Resolution | Up to 1200 x 1200 dpi |
| Warm-up Time | Approx. 14 seconds or less from power on |
| First-Print-Out Time | Approx: 5.0 seconds or less |
| Printer Languages | UFRII, PCL5e, PCL6, Adobe® PostScript |
| Fonts | 45 PCL fonts
136 PostScript fonts |
| Print Margins | 5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope) |
| Toner Saver Mode | Yes |
| Advanced Printing Features | Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon PRINT app, Canon Print Service Plug-in, IPP everywhere |
| Copy Specifications | |
| Copy Speed | Single sided (A4): Up to 40 ppm
Double sided (A4): Up to 33.6 ipm |
| First-Copy-Out Time | Approx. 6.1 seconds or less |
| Copy Resolution | Up to 600 x 600 dpi |
| Copy Modes | Text, Text/Photo (Default),Text/Photo (High Quality), Photo |
| Double Sided Copying | 2-sided to 2-sided (Automatic) |
| Multiple Copies | Up to 999 copies |
| Reduction / Enlargement | 25-400% in 1% increments |
| Other Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy |
| Scan Specifications | |
| Standard Type | Colour |
| Scan Resolution | Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi |
| Scan Speed | Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi) |
| Colour Scanning Depth | 24 bit/24 bit (input/output) |
| Greyscales | 256 levels |
| Compatibility | TWAIN , WIA, ICA |
| Maximum Scan Width | 216mm |
| Scan to E-mail | TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b |
| Scan to Cloud | TIFF/JPEG/PDF/PNG |
| iFAX | ITU-T.37 |
| Fax Specifications | |
| Modem Speed | 33.6 Kbps (Up to 3 seconds/page) |
| Receive Mode | Fax only, Fax/Tel Auto Switch, Answer Mode, Manual |
| Fax Resolution | Standard: 200 x 100 dpi
Fine: 200 x 200 dpi
Super fine: 200 x 400 dpi
Ultra fine: 400 x 400 dpi |
| Fax Memory | Up to 512 pages |
| Speed Dials | Up to 281 dials |
| Group Dials/Destinations | Max. 299 dials / Max. 299 destinations |
| Sequential Broadcast | Max. 310 destinations |
| Memory Backup | Permanent fax memory backup (Backup with flash memory) |
| Double Sided Faxing | Yes (Transmit and Receive) |
| Other Features | Sender's Name (TTI), Direct Send, TX Report, Sequential Broadcasting |
| Media Handling | |

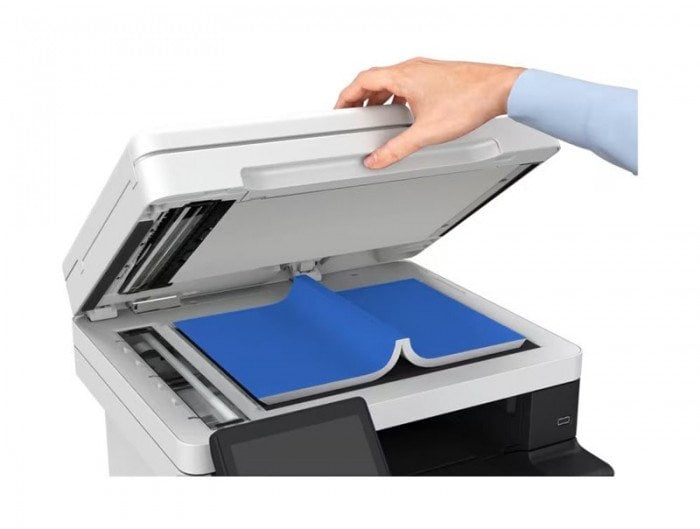

| Scanner Type | Platen, 2-sided ADF (single pass) |
| Paper Input (Standard) | 250-sheet cassette
100-sheet multi-purpose tray
50-sheet ADF |
| Paper Input (Option) | 550-sheet cassette (Option) |
| Maximum Paper Input Capacity | 900 sheets |
| Paper Output | 150-sheet |
| Media Types | Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope |
| Media Sizes | Cassette (Standard and optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K,
Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.
Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL),
Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
ADF:
A4, A5, A6, B5, Legal, Letter, Statement,
Custom sizes: Min. 48 x 85.0 mm Max 216 x 355.6 mm |
| Media Weights | Cassette (standard and optional): 60 to 120 g/m2 Multi-purpose tray: 60 to 199 g/m2 ADF: 60 to 120 g/m2 |
| Double Sided Printing | A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m2 |
| Interface & Software | |
| Interface Type | USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection |
| Operating System Compatibility | Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux |
| Network Protocol | Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP
Management:
SNMPv1, SNMPv3 (IPv4,IPv6)
Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES) |
| Software and Printer Management | MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics
Application Library |
| General Features | |
| Recommended Monthly Print Volume | 750 - 4,000 pages per month |
| Duty Cycle | Max. 80,000 pages per month |
| Processor Speed | 1200MHz |
| Memory | 1GB |
| Storage | 4GB |
| Control Panel | 12.7 cm LCD Colour Touch Screen |
| Dimensions with Trays
(W x D x H) | 420 mm x 460 mm x 375 mm |
| Installation Space
(W x D x H) | 689 mm x 1,081 mm x 824 mm |
| Weight | Approx. 16.3 Kg |
| Power Source | 220-240V(±10%) 50/60Hz (±2Hz) |
| Power Consumption | Maximum: Approx. 1,280 W
Active printing: Approx. 480W
Standby: Approx. 8 W
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC): 0.32 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/ |
| Noise Levels | Sound Pressure:
Active: 53 dB
Standby: Inaudible
Sound Power:
Active: Duplex 68dB / Simplex 67dB
Standby: Inaudible |
| Consumables | |
| Cartridges | Cartridge 070 (3,000 pages)
Cartridge 070H (10,200 pages) |
| Accessories & Options | |
| Items | CST.Feeding Module-AH1 (550-sheet cassette) (Option)
TEL 6 Kit Long Cord (Telephone handset) (Option) |
