Ražotājs: ATEN

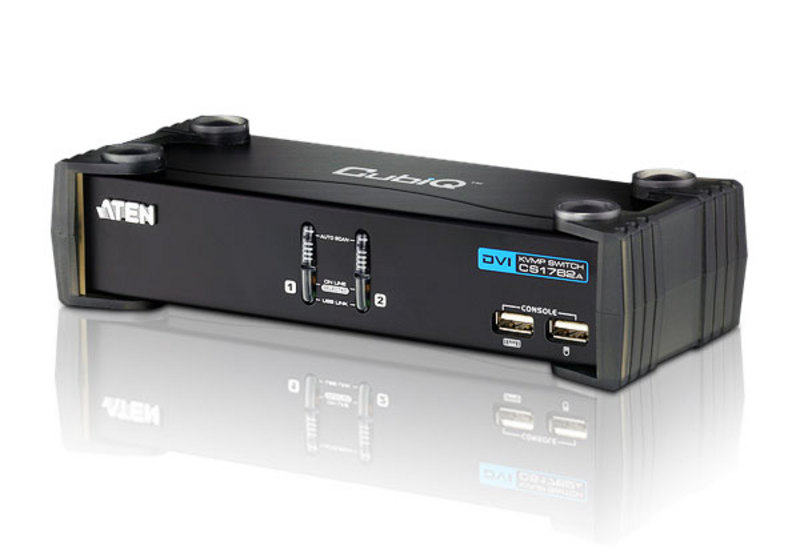

Aten CS1762A KVM switch Black

€165,00 ar pvn

Artikuls: ST04552676

Preces kods: CS1762A

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LV	7 - 12 dienās	9	€165,00 ar pvn
PL	8 - 15 dienās	9	€204,88 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
DVI-I ports quantity	1
USB hub	Yes
USB connector type	USB Type-A, USB Type-B
USB version	2.0
Audio connections	Yes
Headphone outputs	2
Number of microphone inputs	1
DC-in jack	Yes
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Scan interval	1,99 s
HDCP	Yes
Power on detection	Yes
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
On Screen Display (OSD)	No
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	9 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	210 mm
Depth	88 mm
Height	55.5 mm
Weight	730 g
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Harmonized System (HS) code	85176200
Description
Description	ATEN CS1762A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Scan interval: 1,99 s. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 9 W. Sustainability certificates: RoHS

manufacturer

ATEN

product group

KVM switches / PC shares

product type

KVM-Switch, DVI

colour

black

weight

0.8 kg

height of packaging (single piece)

180 mm

width of packaging (single piece)

110 mm

depth of packaging (single piece)

290 mm

package weight (single piece)

1.62 kg

gross weight

1.62

current catalog edition

24.1

current catalog page

3.10

scope of delivery

1x CS1762A USB 2.0 DVI KVMP™ Switch, 2x KVM Cable (DVI-D,...

height

21 mm

width

87 mm

depth

55 mm

dimensions (hxwxd)

21 x 87 x 55 mm

material (casing)

Metal

quantity of pcs

supported pc-systems

USB

pc: monitor connection

2x DVI F

pc: mouse/keyboard connection

USB

quantity of digital consoles

print button on device

yes

switching over hot keys

Keyboard

integrated hub

yes

19" compatible

cascadable

max. resolution (nominal)

1920x1200

colour (design profile)

black

power supply unit required

yes

analogue console: monitor connection

1x DVI F

analogue console: mouse/keyboard connection

USB

quantity of usb-hub ports

pc: connection on moulded cables

quantity of analogue consoles

integrated console

switching over scan run

yes

switching over osd

keyboard/mouse emulation

yes

mains connection

Appliance Europlug, Type-C
