    • DC Isolator Switch - 2P, 32A, 1000VDC, MC4, IP66
    Ražotājs: NONAME

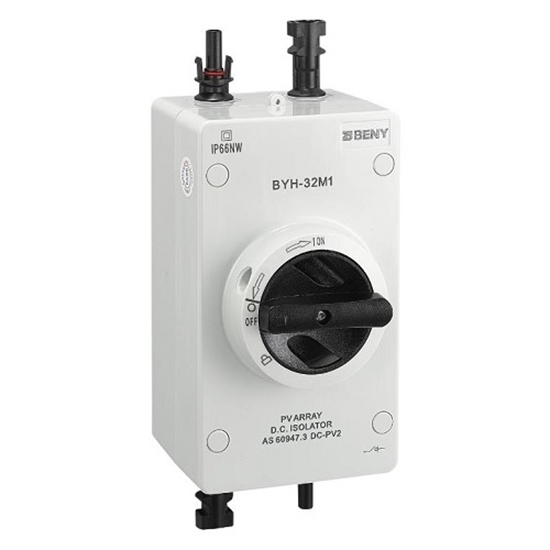

    DC Isolator Switch - 2P, 32A, 1000VDC, MC4, IP66


    €45,97 ar pvn

    Artikuls: ST10384447
    Preces kods: NV821396
    Ražotāja mājaslapa
    *
    Noliktava Piegāde Daudzums Cena
    LT

    Specifikācija
    Description
    DC isolator switch for disconnecting the DC circuit and controlling the PV installation up to 1000V 32A, with handle, with valve, for safe use and maintenance.Can e widely used in residential and commercial solar PV systems.It is the first DC switch compliant with AS 6097.3:2018 DC-PV2 standards and can e used worldwide in PV DC systems.Features:2 poles, 1000V DC, 32A.No polarity.Fire retardant and UV resistant.The switch is locked in the off position.Arcing time less than 3ms, that make PV solar system effectively disconnected.A reathing valve shall e attached on the DC isolator.Pre-wired MC in factory avoid the loose wiring or failure installation.The DC isolator switch is wired with MC for faster and safer installation.Certificates: IECEN 6097-3, ASNZS 5033:201 DC-21B, DC-PV2.rTechnical data: Numer of contacts: 2.Rated voltage (Ue): DC 1000V.Insulation voltage (Ui): DC 1200V.Rated current (In): 16A 25A 32A.Maimum current: 32A.Rated impulse voltage (Uimp): 8kV.Mechanical life: 15000 cycles.Electrical life: 1000 cycles.Connection type: M (min. 1.2Nm, ma. 1.8Nm).Wire cross-sectional area: ma. -16mm2.Disconnection time: 3ms.Protection class: IP66 for housing, IP20 for switch.Dimensions: 18899108 mm.Operating temperature: -0°C to 85°C.rWarranty: 2 months.

    Specifikācija
    Description
    DC isolator switch for disconnecting the DC circuit and controlling the PV installation up to 1000V 32A, with handle, with valve, for safe use and maintenance.Can e widely used in residential and commercial solar PV systems.It is the first DC switch compliant with AS 6097.3:2018 DC-PV2 standards and can e used worldwide in PV DC systems.Features:2 poles, 1000V DC, 32A.No polarity.Fire retardant and UV resistant.The switch is locked in the off position.Arcing time less than 3ms, that make PV solar system effectively disconnected.A reathing valve shall e attached on the DC isolator.Pre-wired MC in factory avoid the loose wiring or failure installation.The DC isolator switch is wired with MC for faster and safer installation.Certificates: IECEN 6097-3, ASNZS 5033:201 DC-21B, DC-PV2.rTechnical data: Numer of contacts: 2.Rated voltage (Ue): DC 1000V.Insulation voltage (Ui): DC 1200V.Rated current (In): 16A 25A 32A.Maimum current: 32A.Rated impulse voltage (Uimp): 8kV.Mechanical life: 15000 cycles.Electrical life: 1000 cycles.Connection type: M (min. 1.2Nm, ma. 1.8Nm).Wire cross-sectional area: ma. -16mm2.Disconnection time: 3ms.Protection class: IP66 for housing, IP20 for switch.Dimensions: 18899108 mm.Operating temperature: -0°C to 85°C.rWarranty: 2 months.
