    Ražotājs: DEEPCOOL

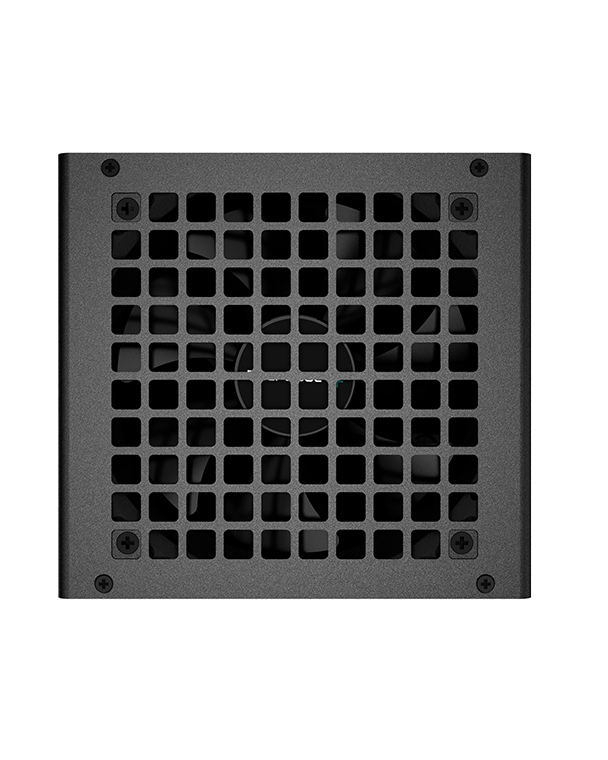

    Deepcool PF450


    €41,49 ar pvn

    Artikuls: ST06385160
    Preces kods: R-PF450D-HA0B-EU
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LV
    LV
    LT
    PL

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Barošanas bloks 400W - 460W
    Krāsa Balta
    Pielietojums Korpusam 120 mm.
    Pielietojums Korpusam 40 mm.
    Pielietojums Korpusam 50 mm.
    Total power450 W
    AC input voltage200 - 240 V
    AC input frequency50 Hz
    Input current3.5 A
    Combined power (+3.3V)100 W
    Combined power (+12V)420 W
    Combined power (+5V)100 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)15 A
    Max output current (+12V)35 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver power, Over voltage, Short circuit
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)1
    Motherboard power cable length55 cm
    Number of SATA power connectors3
    SATA power cable length450 mm
    Peripheral (Molex) power cable length150 mm
    EPS power connector (4+4 pin)Yes
    PCI Express power connectors (6+2 pin)2
    PCI Express power cable length51 cm
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS White
    ATX version2.4
    Bearing technologySleeve
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Fan diameter12 cm
    Operating temperature (T-T)0 - 40 °C
    Width150 mm
    Depth40 mm
    Height86 mm
    Sustainability certificatesErP
    Description
    DeepCool PF450. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 40 mm, Height: 86 mm
    Description
    Jauda: 450W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 1 x 6 + 2 PIN, Garantija: 2 gadi
    Weight0.5
    Gross weight0.54
    Description

    ATX12V V2.4
    Product dimensions: 150×140×86mm (W x L x H)
    80PLUS certifications: 230V EU White
    Fan size: 120mm
    Fan bearing: Hypro Bearing
    Topology: Active PFC + Double tube forward
    Capacitors: Taiwan bulk capacitor
    Power Good Signal: 100-500ms
    Hold Up Time: ≥16ms (75% load)
    Energy efficiency: ≥85% under typical load conditions (50% load)
    Protection: OPP/OVP/SCP (Over Power Protection/Over Voltage Protection/Short Circuit Protection)
    Operating temperature: 0-40°C
    Regulations: CB/CCC/CE/UKCA/EAC/RCM/BIS
    ErP regulation: ErP 2010
    MTBF (Mean Time to Failure): 100,000 hours

    ATX12V V2.4
    Produktu izmēri: 150×140×86mm (W x L x H)
    80PLUS sertifikācijas: 230V EU White
    Ventilatora izmērs: 120mm
    Ventilatora gultnis: Hypro Bearing
    Topoloģija: Active PFC + Double tube forward
    Kondensatori: Taiwan bulk capacitor
    Power Good Signāls: 100-500ms
    Hold Up Laiks: ≥16ms (75% slodze)
    Energoefektivitāte: ≥85% parasti slodzes apstākļos (50% slodze)
    Aizsardzība: OPP/OVP/SCP (Over Power Protection/Over Voltage Protection/Short Circuit Protection)
    Darbības temperatūra: 0-40°C
    Regulējumi: CB/CCC/CE/UKCA/EAC/RCM/BIS
    ErP regulējums: ErP 2010
    MTBF (Vidējais laiks līdz bojājumam): 100,000 stundas

    ATX12V V2.4
    Размеры продукта: 150×140×86 мм (Ш x Д x В)
    Сертификаты 80PLUS: 230 В, ЕС, белый цвет
    Размер вентилятора: 120 мм
    Подшипник вентилятора: подшипник Hypro
    Топология: активная коррекция коэффициента мощности + двойная трубка вперед.
    Конденсаторы: Тайваньский объемный конденсатор
    Хороший сигнал питания: 100-500 мс
    Время удержания: ≥16 мс (нагрузка 75%)
    Энергоэффективность: ≥85% при типичных условиях нагрузки (50% нагрузки)
    Защита: OPP/OVP/SCP (защита от перегрузки по мощности/защита от перенапряжения/защита от короткого замыкания)
    Рабочая температура: 0-40°C
    Регламент: CB/CCC/CE/UKCA/EAC/RCM/BIS
    Регулирование ErP: ErP 2010.
    MTBF (среднее время наработки на отказ): 100 000 часов.
    Gross depth (mm)260
    Gross height (mm)178
    Gross weight1.595
    Gross width (mm)114
    Net weight0.354
    Packing quantity1.00
    Paper/Pasteboard941
    Plastic (No PET)300.00
    Tare weight (kg)1.241
    Volume (m3)0.00527592
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power450
    Producer product namePF450
    Other features120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
    Warranty60
    Producer product familyPSU
    Form factorATX12V V2.4
    PCI Express power connectors (6+2 pin)1
    Number of SATA power connectors2
    ATX power connector (20+4 pin)1
    EPS power connector (8-pin)1
    Colour of productBlack
    80 PLUS certification80 PLUS
    Palette Qty164
    ProducerDeepcool
    Description
    Deepcool PF450 450 W 80 PLUS Standard Certified

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Barošanas bloks 400W - 460W
    Krāsa Balta
    Pielietojums Korpusam 120 mm.
    Pielietojums Korpusam 40 mm.
    Pielietojums Korpusam 50 mm.
    Total power450 W
    AC input voltage200 - 240 V
    AC input frequency50 Hz
    Input current3.5 A
    Combined power (+3.3V)100 W
    Combined power (+12V)420 W
    Combined power (+5V)100 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)15 A
    Max output current (+12V)35 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver power, Over voltage, Short circuit
    Motherboard power connector20+4 pin ATX
    Peripheral (Molex) power connectors (4-pin)1
    Motherboard power cable length55 cm
    Number of SATA power connectors3
    SATA power cable length450 mm
    Peripheral (Molex) power cable length150 mm
    EPS power connector (4+4 pin)Yes
    PCI Express power connectors (6+2 pin)2
    PCI Express power cable length51 cm
    PurposePC
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS White
    ATX version2.4
    Bearing technologySleeve
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Fan diameter12 cm
    Operating temperature (T-T)0 - 40 °C
    Width150 mm
    Depth40 mm
    Height86 mm
    Sustainability certificatesErP
    Description
    DeepCool PF450. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 40 mm, Height: 86 mm
    Description
    Jauda: 450W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 1 x 6 + 2 PIN, Garantija: 2 gadi
    Weight0.5
    Gross weight0.54
    Description

    ATX12V V2.4
    Product dimensions: 150×140×86mm (W x L x H)
    80PLUS certifications: 230V EU White
    Fan size: 120mm
    Fan bearing: Hypro Bearing
    Topology: Active PFC + Double tube forward
    Capacitors: Taiwan bulk capacitor
    Power Good Signal: 100-500ms
    Hold Up Time: ≥16ms (75% load)
    Energy efficiency: ≥85% under typical load conditions (50% load)
    Protection: OPP/OVP/SCP (Over Power Protection/Over Voltage Protection/Short Circuit Protection)
    Operating temperature: 0-40°C
    Regulations: CB/CCC/CE/UKCA/EAC/RCM/BIS
    ErP regulation: ErP 2010
    MTBF (Mean Time to Failure): 100,000 hours

    ATX12V V2.4
    Produktu izmēri: 150×140×86mm (W x L x H)
    80PLUS sertifikācijas: 230V EU White
    Ventilatora izmērs: 120mm
    Ventilatora gultnis: Hypro Bearing
    Topoloģija: Active PFC + Double tube forward
    Kondensatori: Taiwan bulk capacitor
    Power Good Signāls: 100-500ms
    Hold Up Laiks: ≥16ms (75% slodze)
    Energoefektivitāte: ≥85% parasti slodzes apstākļos (50% slodze)
    Aizsardzība: OPP/OVP/SCP (Over Power Protection/Over Voltage Protection/Short Circuit Protection)
    Darbības temperatūra: 0-40°C
    Regulējumi: CB/CCC/CE/UKCA/EAC/RCM/BIS
    ErP regulējums: ErP 2010
    MTBF (Vidējais laiks līdz bojājumam): 100,000 stundas

    ATX12V V2.4
    Размеры продукта: 150×140×86 мм (Ш x Д x В)
    Сертификаты 80PLUS: 230 В, ЕС, белый цвет
    Размер вентилятора: 120 мм
    Подшипник вентилятора: подшипник Hypro
    Топология: активная коррекция коэффициента мощности + двойная трубка вперед.
    Конденсаторы: Тайваньский объемный конденсатор
    Хороший сигнал питания: 100-500 мс
    Время удержания: ≥16 мс (нагрузка 75%)
    Энергоэффективность: ≥85% при типичных условиях нагрузки (50% нагрузки)
    Защита: OPP/OVP/SCP (защита от перегрузки по мощности/защита от перенапряжения/защита от короткого замыкания)
    Рабочая температура: 0-40°C
    Регламент: CB/CCC/CE/UKCA/EAC/RCM/BIS
    Регулирование ErP: ErP 2010.
    MTBF (среднее время наработки на отказ): 100 000 часов.
    Gross depth (mm)260
    Gross height (mm)178
    Gross weight1.595
    Gross width (mm)114
    Net weight0.354
    Packing quantity1.00
    Paper/Pasteboard941
    Plastic (No PET)300.00
    Tare weight (kg)1.241
    Volume (m3)0.00527592
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power450
    Producer product namePF450
    Other features120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
    Warranty60
    Producer product familyPSU
    Form factorATX12V V2.4
    PCI Express power connectors (6+2 pin)1
    Number of SATA power connectors2
    ATX power connector (20+4 pin)1
    EPS power connector (8-pin)1
    Colour of productBlack
    80 PLUS certification80 PLUS
    Palette Qty164
    ProducerDeepcool
    Description
    Deepcool PF450 450 W 80 PLUS Standard Certified
