    Ražotājs: DIGITUS

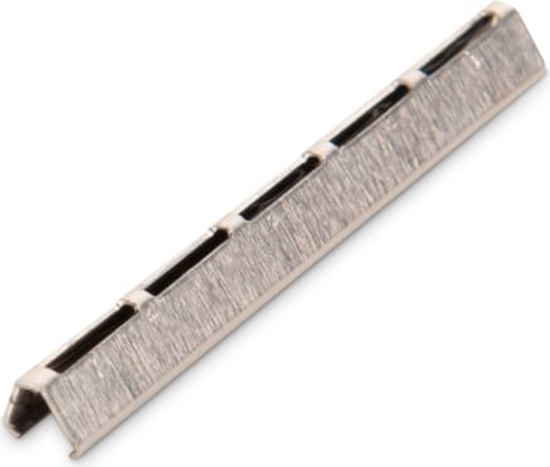

    Digitus Fiber optic crimp splice protection, 15 strips, with telecom approval TS0338/96


    €18,83 ar pvn

    Artikuls: ST09560690
    Preces kods: DN-CSP-015
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    height0.000
    width0.000
    depth0.000
    country of originPL
    Description
    Fiber Optic Crimp Splice Protection 1 Tray with 15 pcs

    Efficient splice protection for optical fibers with crimp technology. Compatible with standard splice cassettes, ideal for compact installations.

    Reliable mechanical protection
    Compact design for use in splice cassettes
    Ideal for quick and safe installation on site
    Excellent thermal properties
    Solution for a permanently stable and clear installation

    The fiber optic crimp splice protector offers a safe way to reliably protect optical fibers after splicing. It is fixed in place purely mechanically by means of a precise crimping process. Thanks to its compact design, the crimp splice protector is perfect for splice cassettes and distributors with limited space. The 900 µm secondary coating of the fiber is held firmly in place, permanently protecting the sensitive splice against tension, vibrations and micromovements. The easy handling makes the crimp splice protector the ideal solution for field installations, e.g. in building cabling, FTTH installations or data centers. They are used to protect fiber splices in 19" distribution panels, floor-standing and wall-mounted enclosures as well as in fiber optic splice closures. Thanks to their excellent climatic and thermal properties, they are suitable for use in both closed and open environments. The protection thus ensures permanent resistance to crushing, pulling and puncturing.

    Compliant with TS 0388/96
    Fixation: Mechanical clamp fastener
    Fastening: Snap-in or insertable in standard splice cassettes
    Damping behavior: No additional insertion loss
    Dimensions (LxWxH) : 30 mm × 1.2 mm × 3.3 mm
    Opening angle of the protector before crimping: ?=52°
    Temperature range: -20 °C to +60 °C

    Package content:
    1x fiber optic crimp splice protection, strip of 15
