Ražotājs: DIGITUS

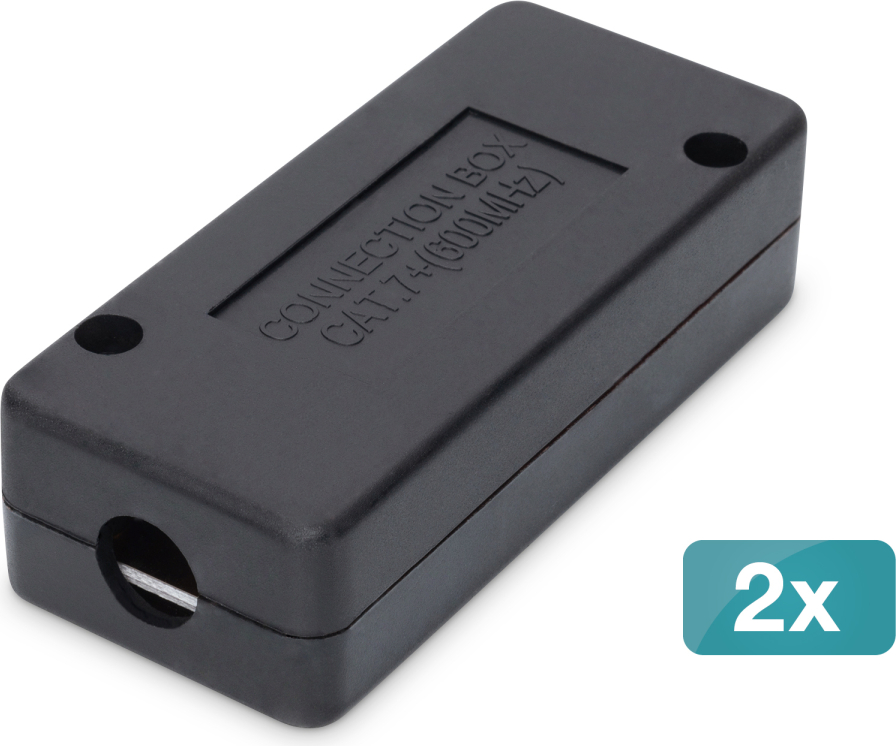

Digitus Junction Box CAT 7 - 2 pieces

€19,43 ar pvn

Artikuls: ST09609704

Preces kods: DN-93907-1-2

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	7 - 12 dienās	1	€19,43 ar pvn

Daudzums:

Specifikācijas

Specifikācija

width(cm)

length(cm)

height(cm)

3.5

weight(kg)

0.3

volume(cm3)

385

country of origin

Description

Junction Box CAT 7, 600 MHz, LSA strips for AWG 22-26,fully shielded, comp. design,26x35x80mm

The DIGITUS® Junction Box CAT 7 serves as a tool for connecting of shielded data cables. Use the Junction Box for an extension of your cabling or to replace broken cables by re-connecting without installing a whole new segment. For an easy and fast installation, the cable connector uses the established LSA technique with 45° tilt of the contacts.

Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
General properties:
Suitable for installation in trunking, surface and flush mount
Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
Suitable for connection of installation cables - extension of cables, replacing of defect cable links
Integrated strain relief for installation cables
Suitable for cables with AWG 22-26 diameter
Technical properties:
Housing material: ABS UL-94V-0
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 u gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
2 pieces
