    Ražotājs: EATON

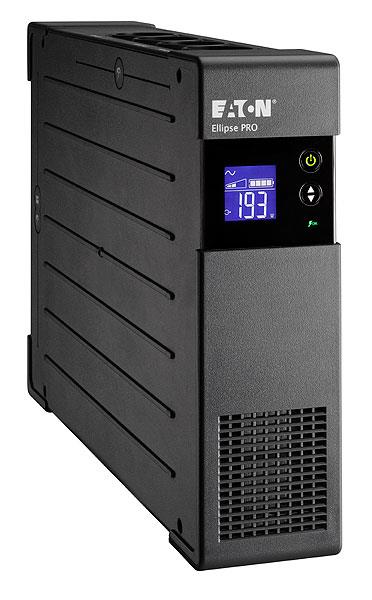

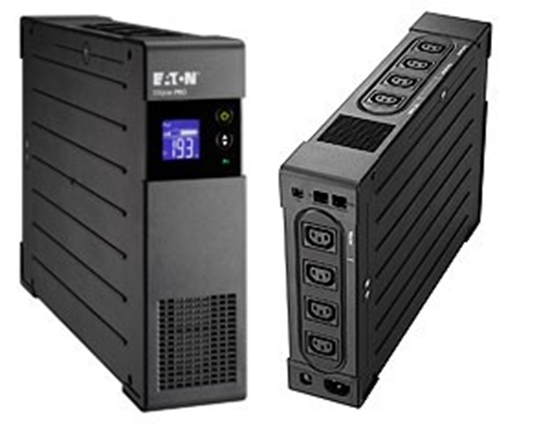

    1600VA/1000W UPS, line-interactive, IEC 4+4


    €423,63 ar pvn

    Artikuls: ST00808647
    Preces kods: ELP1600IEC
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LT
    PL
    LT

    Specifikācija
    Nominālais efekts (VA) 1600
    Izejas jauda 1000
    Ligzda (IEC320)
    Ligzda (USB)
    Tips Line Interactive
    Akumulatori Akumulatori
    UPS topologyLine-Interactive
    Output power capacity1.6 kVA
    Output power1000 W
    Input operation voltage (min)150 V
    Input operation voltage (max)285 V
    Input frequency50/60 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50 Hz
    Emergency Power Off (EPO)Yes
    Surge protectionYes
    Surge protection featuresFax, Modem, Network, Telephone
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB 2.0 ports quantity1
    Modem (RJ-11) ports1
    Ethernet LAN (RJ-45) ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load9 min
    Hot-swap batteryNo
    Automatic battery testYes
    Cold startYes
    Form factorTower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Width82 mm
    Depth390 mm
    Height275 mm
    Weight11.3 kg
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton Ellipse PRO 1600 IEC. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Width: 82 mm, Depth: 390 mm, Height: 275 mm
    Description
    1000 Watts | 1600 VA | Topology LineInteractive | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | 1xUSB | Desktop/pedestal | Rack | Colour Black
    DescriptionEATON Ellipse PRO 1600 1600VA/1000W USB
    VatTypeVAT
    Weight12.580000000
    Height145.000000000
    Width330.000000000
    Length495.000000000
    Description
    EATON Ellipse PRO 1600 1600VA/1000W USB port IEC Rack/Tower 4min Runtime 780W
    ShortDesc1600VA/1000W UPS, line-interactive, IEC 4+4
    UPS Power (VA)1600 VA
    UPS Power (W)1000 W
    Runtime (min)9/5
    Input Voltage (V)165 V - 285 V (adjustable to 150 V - 285 V)
    Output Voltage (V)230 V (adjustable to 220 V - 230 V - 240 V)
    Input Frequency (Hz)50/60 Hz autoselect
    Output Frequency (Hz)-
    Input Connections(1) IEC-320-C14
    Output Connections(4) C13, (4) C13 surge only
    Waveform Type-
    Recharge time (hours)-
    Battery TypeAutomatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
    TopologyLine interactive
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections-
    Control PanelLCD (UPS status and measurements, configuration of UPS settings)
    Alarm-
    ColorBlack
    Form Factor
  • Rack
  • Tower
  • Package Contents-
    Width82 mm
    Depth390 mm
    Height275 mm
    Net Weight11.300 Kg
    Gross Weight12.600 kg
    Description
    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
    Gross depth (mm)145.00
    Gross height (mm)333.00
    Gross weight12.70
    Gross width (mm)490.00
    Net weight11.50
    Packing quantity1.00
    Paper/Pasteboard1000.00
    Plastic (No PET)200.00
    Tare weight (kg)1.20
    TI weight (kg)9.00
    Volume (m3)0.02
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    UPS topologyLine-Interactive
    Capacity1600
    Producer product name ELP1600IEC
    Capacity1000
    FunctionsProvide backup power - Prevents data loss. Protects your sensitive and valuable equipment. Perfect support for solar panel installations and other sensitive equipment that requires pure sinewave input. Compact and reliable - ideal for home and small office use
    Producer product familyEllipse PRO 1600 IEC
    Palette Qty73
    ProducerEaton
    Warranty36
    Description
    Eaton Ellipse PRO 1600 IECThe Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
