    Iepriekšējais produktsGigabyte A520I AC motherboa...
    Nākamais produktsGigabyte A520M K V2 motherb...
    Ražotājs: GIGABYTE

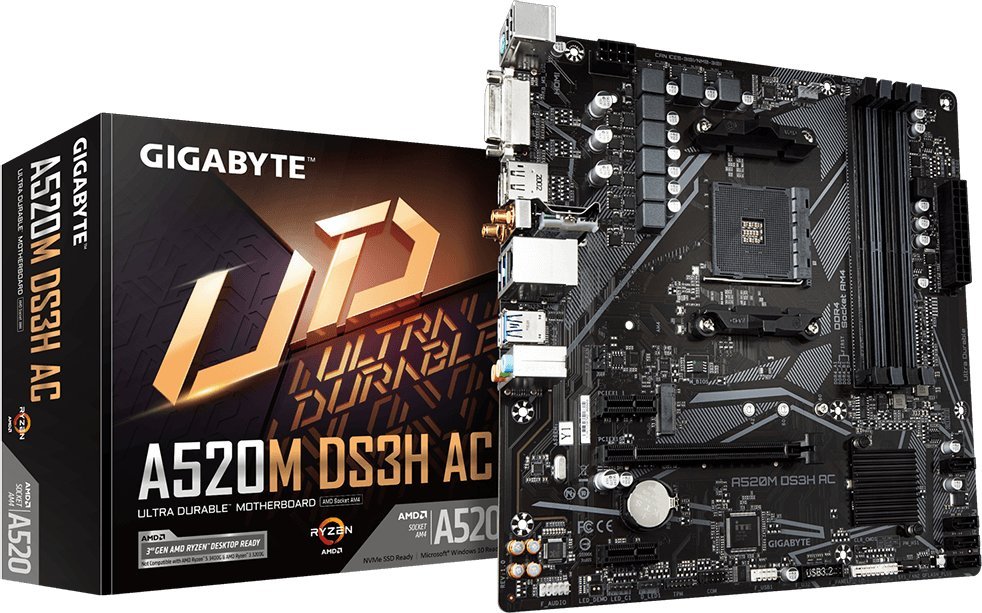

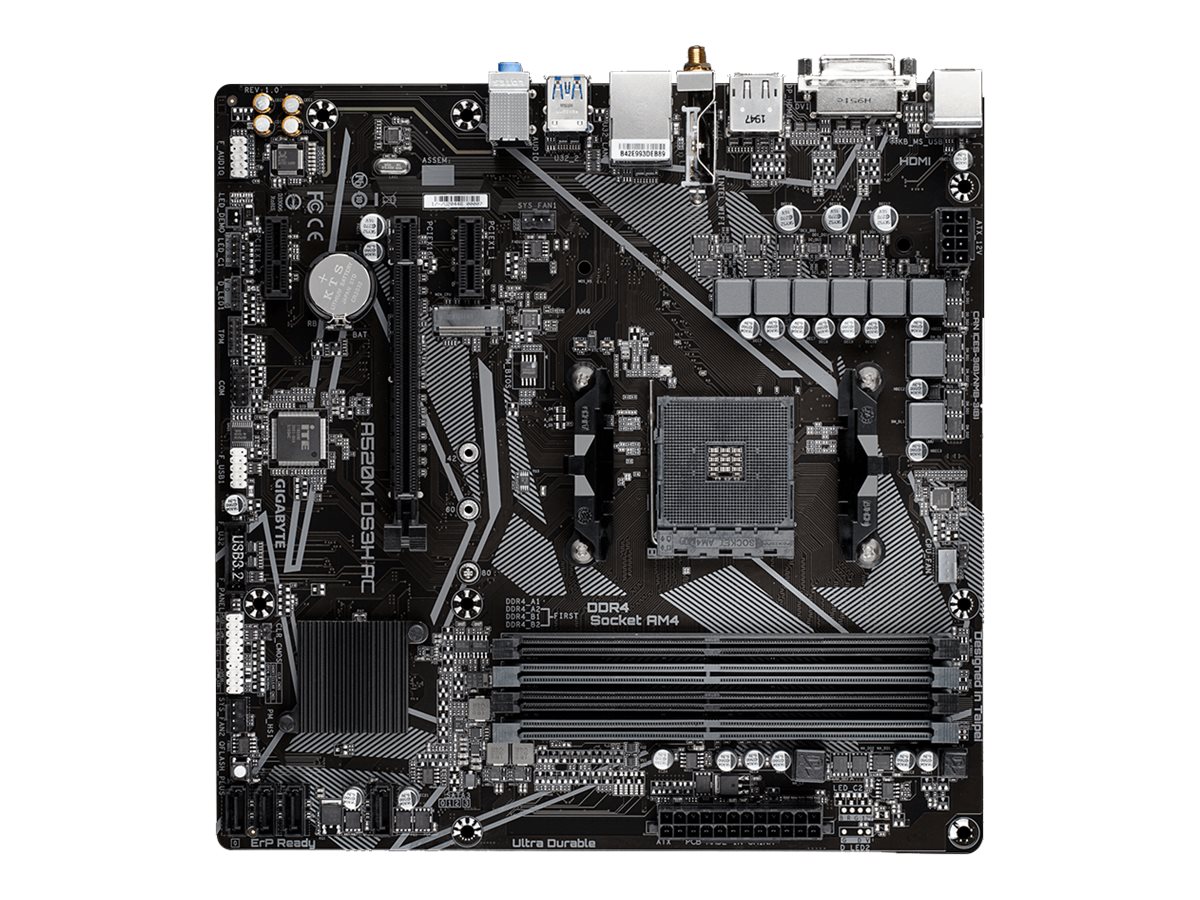

    GIGABYTE A520M DS3H AC AM4 1xHDMI 1xDP


    €73,79 ar pvn

    Artikuls: ST08976960
    Preces kods: A520M DS3H AC
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LT
    LV
    PL

    Specifikācija
    CPU ligzda Socket AM4
    Video interfeiss HDMI
    Atmiņas tips DDR4
    Plates izmērs (Form Factor) mATX
    CPU ligzda LGA 775
    CPU ligzda LGA 2066
    Video interfeiss DisplayPort
    Video interfeiss DVI
    Model

    A520M DS3H AC
    CPU socketSocket AM4
    Processor familyAMD Ryzen 9
    Processor familyAMD Ryzen 7
    Processor familyAMD Ryzen 5
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD A520
    Memory type DDR4
    Number of DDR4 slots4
    Memory bus frequency133 MHz
    Memory bus frequency2133 MHz
    Memory bus frequency2400 MHz
    Memory bus frequency2667 MHz
    Memory bus frequency4400 MHz
    Memory bus frequency4000 MHz
    Memory bus frequency3300 MHz
    Memory bus frequency3866 MHz
    Memory bus frequency3800 MHz
    Memory bus frequency4600 MHz
    Memory bus frequency3333 MHz
    Memory bus frequency3400 MHz
    Memory bus frequency3466 MHz
    Memory bus frequency3600 MHz
    Memory bus frequency3733 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency3200 MHz
    Memory bus frequency4733 MHz
    Max memory size 128 (GigaBajt)
    Expansion slots1 x M.2
    Expansion slots1 x PCIe x 16
    Expansion slots2 x PCIe x 1
    Expansion slots1 x PCIe 3.0 x 16
    Max. number of SATA devices 4
    RAIDYes
    Detailed data on disk/drive interfaces
    • Złącza rozszerzeń
    • CPU:
    • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    • Chipset:
    • 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
    • Złącza SATA
    • CPU:
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    • Chipset:
    • 4 x SATA 6Gb/s connectors
    • Support for RAID 0, RAID 1, and RAID 10
    Graphics

    Zintegrowany procesor graficzny:

    • 1 x port DVI-D, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz
      * Port DVI-D nie obsługuje połączenia D-Sub przez adapter.
    • 1 x DisplayPort, obsługujący maksymalną rozdzielczość 5120x2880@60 Hz
      * Obsługa DisplayPort w wersji 1.4, HDCP 2.3 i HDR.
    • 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
      * Obsługa HDMI w wersji 2.1, HDCP 2.3 i HDR.
    • Obsługa do 3 wyświetlaczy jednocześnie
    • Maksymalna pamięć współdzielona: 16 GB
    Sound card
    • Realtek Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    Network interfaceWi-Fi 802.11a/b/g/n/ac
    Network interface1 x 10/100/1000 Mbit/s
    Network interfaceBluetooth
    Network interface

    LAN

    • Realtek GbE LAN chip (1 Gbps/100 Mbps)

    Wireless Communication module

    • Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3)
    • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    • BLUETOOTH 4.2
    • Support for 11ac wireless standard
    • Intel Wireless-AC 9260 (For PCB rev. 1.1)
    • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    • BLUETOOTH 5.1
    • Support for 11ac 160MHz wireless standard
    • AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4)
    • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    • BLUETOOTH 5.0
    • Support for 11ac wireless standard
    USB ports at back panel6
    USB ports on motherboard4
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports6
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors4 x USB 3.2 Gen 1 Type-A
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors2 x USB 2.0
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x DisplayPort
    External connectors1 x DVI-D
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors2 x SMA
    Onboard connectors1 x M.2
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors1 x RGB LED strip header
    Onboard connectors1 x System panel header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Clear CMOS jumper
    Onboard connectors1 x Q-Flash Plus button
    Onboard connectors1 x USB 2.0/1.1 header
    Onboard connectors1 x Addressable LED
    Onboard connectors1 x Serial port header
    Onboard connectors1 x USB 3.2 Gen 1 Type-A
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors2 x 4pin Chassis fan
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x TPM header
    Special functions
    • Support for APP Center
    • @BIOS
    • EasyTune
    • RGB Fusion
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash Plus
    • Support for Q-Flash
    BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form factormicro ATX
    Dimensions

    24.4 cm x 24.4 cm
    Supported operating systemsWindows 11
    Supported operating systemsWindows 10
    Software
    • Norton Internet Security (OEM version)
    • LAN bandwidth management software
    DesignationCE+WEEE
    Width280
    Height270
    Depth70
    Weight950
    Description

    Płyta główna AMD A520 z rozwiązaniem Pure Digital VRM, wysokiej jakości dźwiękiem, kartą sieciową GIGABYTE Gaming LAN z zarządzaniem przepustowością, PCIe 3.0 x4 M.2, dwuzakresową kartą Wi-Fi Intel 802.11ac, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus
    DescriptionGIGABYTE A520M DS3H AC AM4 1xHDMI 1xDP
    VatTypeVAT
    Weight0.935000000
    Height70.000000000
    Width270.000000000
    Length270.000000000
    Description
    GIGABYTE A520M DS3H AC AM4 1xHDMI 1xDP
    Weight0.68
    Gross weight1.1
    Description

    Gigabyte A520M DS3H AC is a reliable Micro ATX motherboard for AMD Ryzen processors with an AM4 socket. It features the AMD A520 chipset and built-in Wi-Fi AC for stable wireless connectivity. With support for DDR4 memory, M.2 SSDs, and modern interfaces, it’s ideal for compact yet powerful PC builds.

    Key specifications:

    • Socket: AM4

    • Chipset: AMD A520

    • Form factor: Micro ATX

    • Supported CPUs: AMD Ryzen 3000 / 4000G / 5000 Series

    • Memory: DDR4 up to 128 GB (OC up to 5100 MHz)

    • Wi-Fi: 802.11ac Dual Band

    • LAN: Gigabit Ethernet

    • Storage: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s

    • Expansion slots: 1× PCIe 3.0 x16, 2× PCIe x1

    • Audio: Realtek 7.1 HD Audio

    Gigabyte A520M DS3H AC ir uzticama Micro ATX mātesplate, paredzēta AMD Ryzen procesoriem ar AM4 ligzdu. Tā izmanto AMD A520 čipkopu un ir aprīkota ar iebūvētu Wi-Fi AC moduli, nodrošinot ātru un stabilu bezvadu savienojumu. Atbalsts DDR4 atmiņai, M.2 SSD un moderniem interfeisiem padara šo mātesplati lieliski piemērotu kompaktām, bet jaudīgām sistēmām.

    Specifikācija:

    • Ligzda: AM4

    • Čipkopa: AMD A520

    • Formāts: Micro ATX

    • Atbalstītie procesori: AMD Ryzen 3000 / 4000G / 5000 sērija

    • Atmiņa: DDR4 līdz 128 GB (OC līdz 5100 MHz)

    • Wi-Fi: 802.11ac Dual Band

    • LAN: Gigabit Ethernet

    • Uzglabāšana: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s

    • Paplašinājuma sloti: 1× PCIe 3.0 x16, 2× PCIe x1

    • Skaņa: Realtek 7.1 HD Audio

    Gigabyte A520M DS3H AC надёжная и функциональная материнская плата Micro ATX для процессоров AMD Ryzen с разъёмом AM4. Основана на чипсете AMD A520 и оснащена встроенным Wi-Fi AC, обеспечивая стабильное беспроводное соединение. Поддержка DDR4 памяти, M.2 SSD и современных интерфейсов делает её отличным выбором для компактных и производительных ПК.

    Характеристики:

    • Сокет: AM4

    • Чипсет: AMD A520

    • Форм-фактор: Micro ATX

    • Поддержка процессоров: AMD Ryzen 3000 / 4000G / 5000 Series

    • Память: DDR4 до 128 GB (OC до 5100 MHz)

    • Wi-Fi: 802.11ac Dual Band

    • LAN: Gigabit Ethernet

    • Хранение: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s

    • Расширение: 1× PCIe 3.0 x16, 2× PCIe x1

    • Аудио: Realtek 7.1 HD
    Gross depth (mm)244.00
    Gross depth (mm)244.00
    Gross height (mm)40.00
    Gross height (mm)40.00
    Gross weight1.40
    Gross width (mm)244.00
    Gross width (mm)244.00
    Net weight1.00
    Tare weight (kg)0.40
    Tare weight (kg)0.40
    Volume (m3)0.00
    Volume (m3)0.00
